PLAN 70-1003

Home > Style > Traditional House Plans

Key Specs

3625
sq ft

5
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 3625 sq ft and has 5 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Lower Floor

Reverse

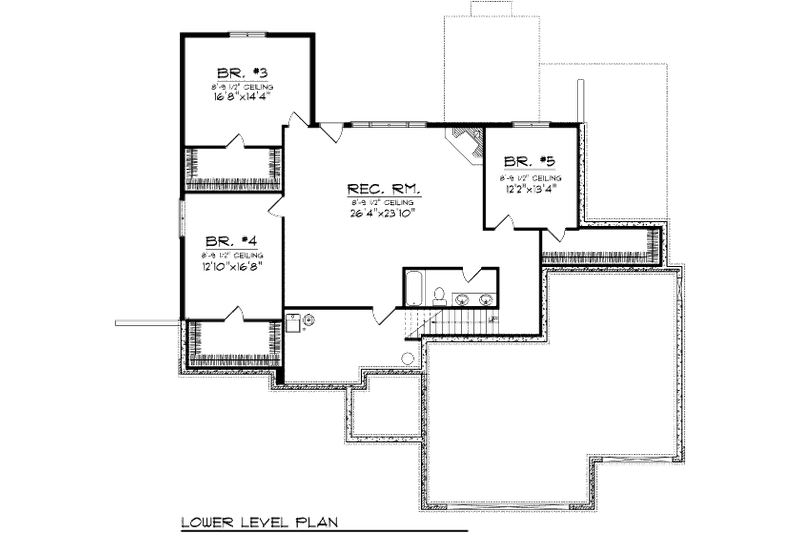

Dream House Plan - Traditional Floor Plan - Lower Floor Plan #70-1003

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

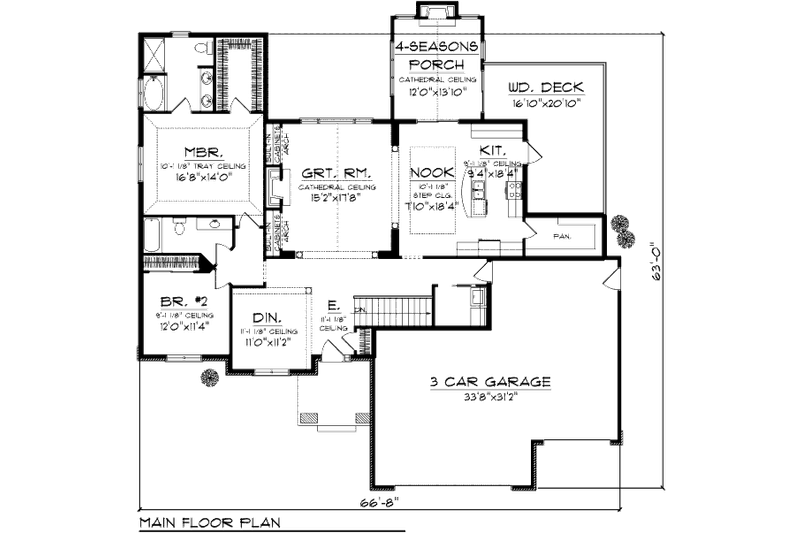

Dream House Plan - Traditional Floor Plan - Main Floor Plan #70-1003

Full Specs & Features

Dimension

Depth : 63'

Height : 24' 2"

Width : 66' 8"

Area

Basement Living: 1681 sq/ft height 8'

First Floor: 1944 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Load : 47 psf

Secondary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : siding, brick

Framing : 2"x6"

Insulation : Exterior R-19, Ceiling R-38

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Storage Area

Sunroom

Unfinished Future Space

Garage Features

Oversized Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Screened Porch

Rooms

Bedroom 2:

135 sq/ft width 12' x depth 11' 4"

Bedroom 3:

238 sq/ft width 16' 8" x depth 14' 4"

Bedroom 4:

213 sq/ft width 12' 10" x depth 16' 8"

Bedroom 5:

162 sq/ft width 12' 2" x depth 13' 4"

Breakfast Nook:

143 sq/ft width 7' 10" x depth 18' 4"

Deck:

288 sq/ft width 13' 10" x depth 20' 10"

Dining Room:

122 sq/ft width 11' x depth 11' 2"

Garage:

1049 sq/ft width 33' 8" x depth 31' 2"

Kitchen:

171 sq/ft width 9' 4" x depth 18' 4"

Master Bedroom:

233 sq/ft width 16' 8" x depth 14'

Recreation Room:

627 sq/ft width 26' 4" x depth 23' 10"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$1595.00

5 printed plan sets mailed to you.

8 Copy Set:
$2248.00

8 printed plan sets mailed to you.

PDF Set:
$2900.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$2900.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$5075.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$375.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$375.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$375.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$60.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
