PLAN 888-6
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This 3 bedroom 3 bath 3,645 sq. ft. ranch house is by architect Nicholas Lee. The long single gable extends over porches at the sides for easy indoor-outdoor living. The split plan puts the master suite and children's bedrooms on opposite sides of the great room. Board and batten siding and tall double hung windows add rustic character: it's a classic designed for today.
Floor Plans

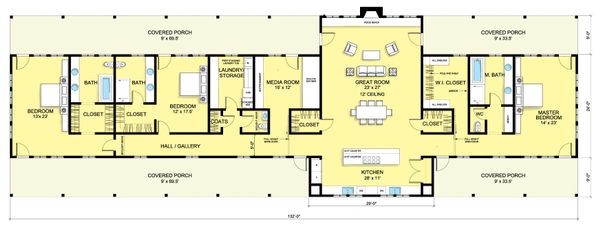

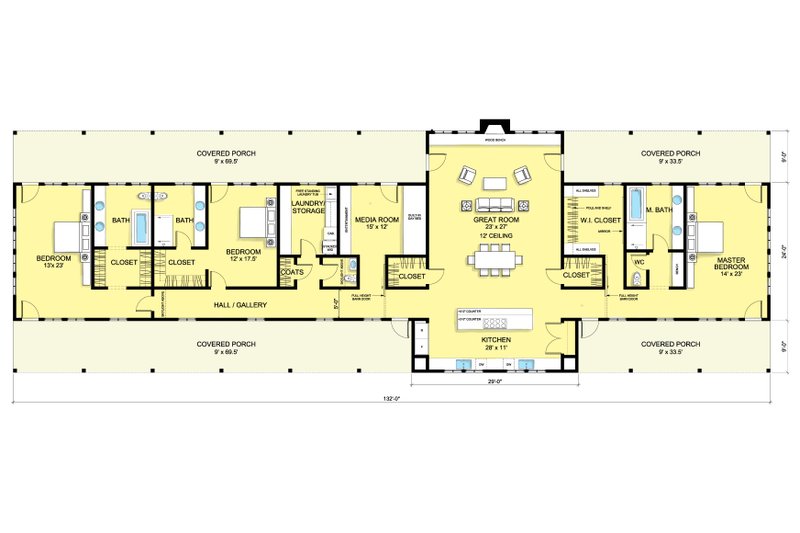

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42'
Height : 18'
Width : 132'
Area
Decks : 1854 sq/ft
Main Floor : 3645 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 12'
Roof
Primary Pitch : 3:12
Roof Framing : Truss
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Detached Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
- COVER PAGE: Cover Sheet: Showing architectural rendering of residence
- FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
- ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
- SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
- TYPICAL WALL SECTION & DETAILS
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1460.00
$1460.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1645.00
$1645.00
5 printed plan sets mailed to you.
CAD Set:
$2190.00
$2190.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$1160.00
$1160.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Additional Construction Sets:
$100.00
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$395.00
$395.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
