Key Specs


3677
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


An inviting front porch greets the visitor to this informal Colonial house. The front door opens to a two-story entry foyer that shares its space with a two-story family room to the rear. To the left, a formal living room with a gracious fireplace and to the right, a formal dining room handy to the country kitchen with an island cabinet. The study is located to the rear and can be used as a spare bedroom with a full bathroom close by. The extra-wide stairs take one to the second floor. The oversized master bedroom has His and Hers walk-in closets and an appropriately oversized master bathroom, containing a large bathtub, separate shower stall, and an enclosed water closet. The other two bedrooms share a bath and there is space for a future bedroom over the garage.

Floor Plans

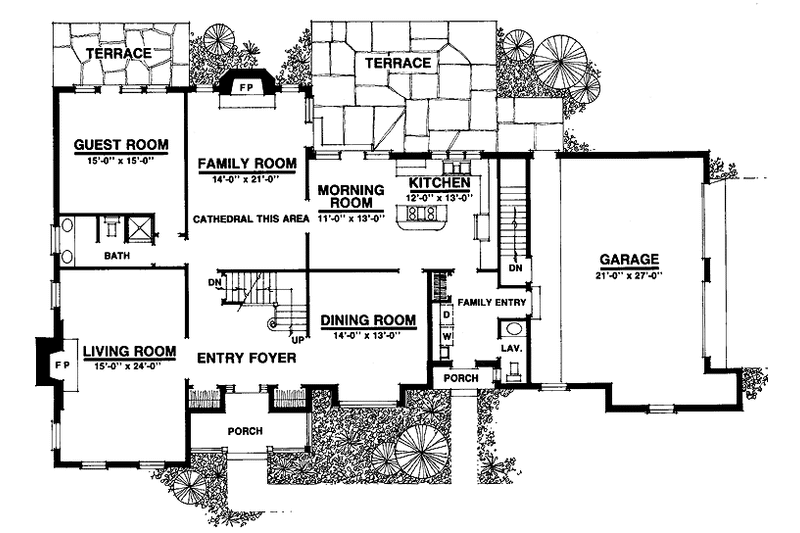

Floor Plan - Main Floor Plan
Colonial Floor Plan - Main Floor Plan Plan #1016-36

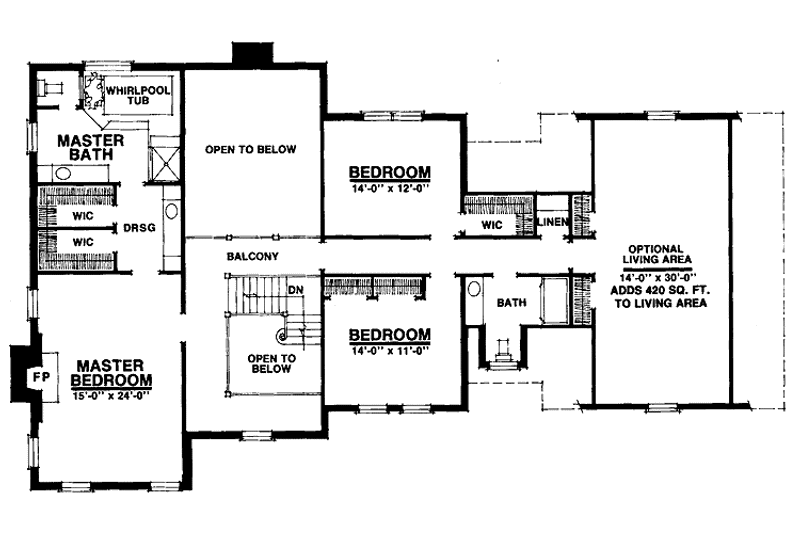

Floor Plan - Upper Floor Plan
Colonial Floor Plan - Upper Floor Plan Plan #1016-36

Full Specs & Features


Dimension
Depth : 47' 8"
Height : 31'
Width : 85'
Area
First Floor: 2042 sq/ft height 8'
Second Floor: 1635 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Media Room
Outdoor Spaces
Covered Front Porch
Rooms

3rd BR Closet:

10 sq/ft width 5' x depth 2'

Attic:

513 sq/ft width 16' 9" x depth 30' 8"

Basement Foundation:

1148 sq/ft width 41' x depth 28'

Bedroom 2:

171 sq/ft width 14' 4" x depth 12'

Bedroom 2 Closet:

31 sq/ft width 4' 4" x depth 7' 2"

Bedroom 3:

155 sq/ft width 14' 2" x depth 11'

Bedroom 3 Closet:

31 sq/ft width 4' 4" x depth 7' 2"

Breakfast Room:

143 sq/ft width 10' 9" x depth 13' 4"

Crawlspace Foundation:

675 sq/ft width 15' x depth 45'

Dining Room:

191 sq/ft width 14' 4" x depth 13' 4"

Foyer:

138 sq/ft width 9' 9" x depth 14' 2"

Game Room:

218 sq/ft width 15' x depth 14' 7"

Garage:

546 sq/ft width 21' x depth 26'

Gathering Room:

302 sq/ft width 14' 2" x depth 21' 4"

Hall Bathroom:

67 sq/ft width 11' 2" x depth 6'

Hall Closet:

6 sq/ft width 3' x depth 2'

Kitchen:

159 sq/ft width 12' x depth 13' 4"

Living Room:

347 sq/ft width 15' x depth 23' 2"

Master Bedroom:

350 sq/ft width 23' 3" x depth 15' 1"

Master Closet:

37 sq/ft width 4' 6" x depth 8' 3"

Powder Room:

24 sq/ft width 3' 2" x depth 7' 8"

Storage:

64 sq/ft width 4' x depth 16'

Utility Room:

85 sq/ft width 8' x depth 10' 8"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
