PLAN #952-80

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This Mediterranean-style villa is distinguished by a stunning octagonal front porch. The second-story dormer above the porch draws the eye and accents the entry to this lovely home. The home is designed to capture views to the rear grounds and is perfect for a golf course or lake. Through arched openings flanked by columns, the adjoining living room and dining room open off the two-story foyer. A see-through fireplace separates the two rooms. The gourmet kitchen, family room and breakfast room flow together. The master suite is at the rear of the home and provides access to a private screened porch. A curved staircase leads to a balcony hall and two bedrooms, each with a private bath.

Floor Plans

Floor Plan - Main Floor Plan

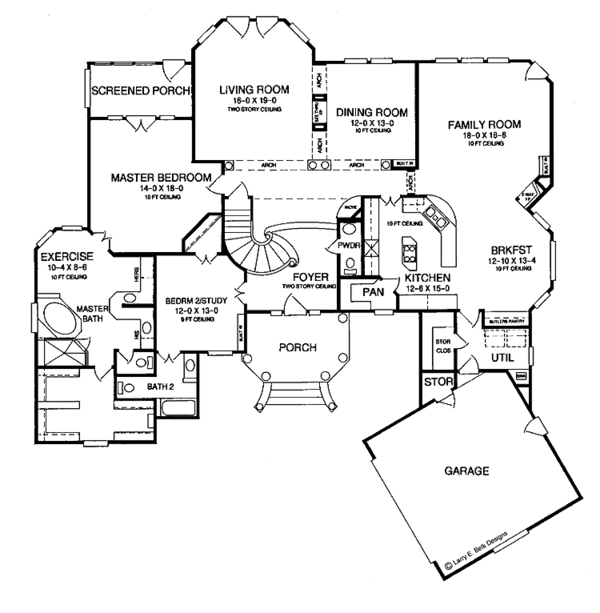

Mediterranean Floor Plan - Main Floor Plan Plan #952-80
Floor Plan - Upper Floor Plan

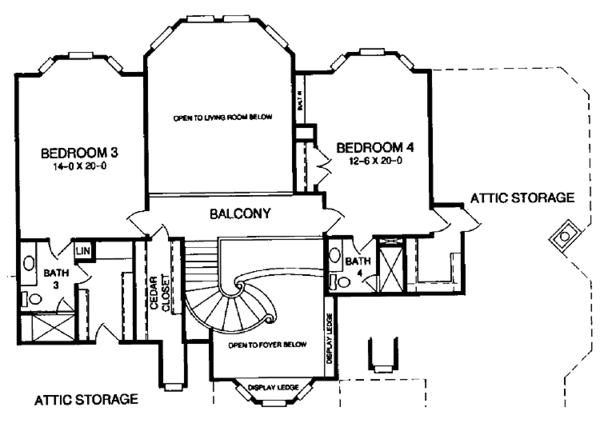

Mediterranean Floor Plan - Upper Floor Plan Plan #952-80

Full Specs & Features

Depth : 76' 3"
Height : 34'
Width : 74' 8"
First Floor: 2733 sq/ft
Second Floor: 1003 sq/ft
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Main Floor Laundry
Media Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Screened Porch

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 3:

280 sq/ft width 14' x depth 20'

Bedroom 4:

250 sq/ft width 12' 6" x depth 20'

Breakfast Room:

171 sq/ft width 12' 10" x depth 13' 4"

Dining Room:

156 sq/ft width 12' x depth 13'

Gathering Room:

333 sq/ft width 18' x depth 18' 6"


187 sq/ft width 12' 6" x depth 15'

Living Room:

304 sq/ft width 16' x depth 19'

Master Bedroom:

252 sq/ft width 14' x depth 18'
