PLAN #417-477

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

A central foyer gives way to an expansive design. Straight ahead, the living room features French doors set in a bay area. To the left, columns and a coffered ceiling offset the exquisite formal dining room. A fireplace warms the large family room, which adjoins the breakfast nook. Traffic flows easily through the ample kitchen with cooktop island and pass-through to the patio. The master bedroom features a tray ceiling, walk-in closet and sumptuous bath with shower and step-up tub overlooking a private garden. Two bedrooms are joined by an optional media room and optional study, which could bring the count up to five bedrooms if necessary.

Floor Plans

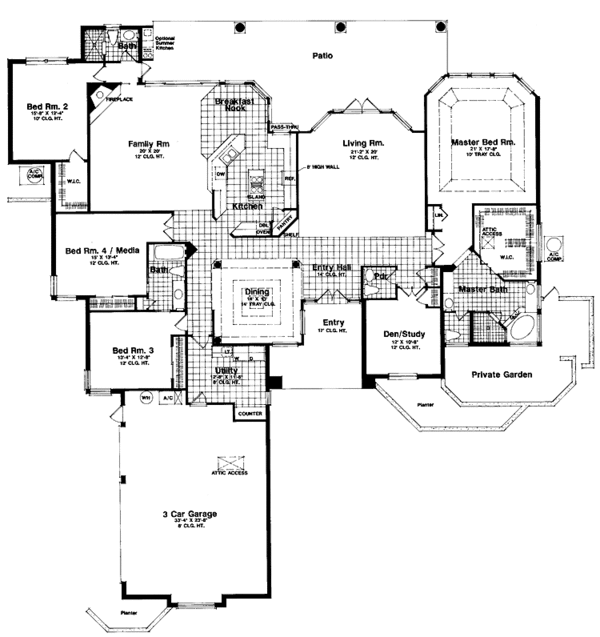

Floor Plan - Main Floor Plan

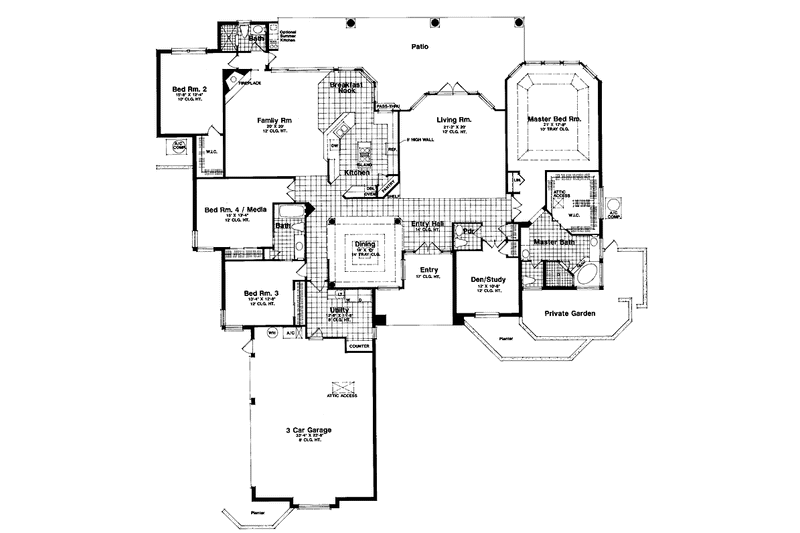

Mediterranean Floor Plan - Main Floor Plan Plan #417-477

Full Specs & Features

Depth : 95'
Height : 29'
Width : 86' 8"
First Floor: 3743 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

199 sq/ft width 15' x depth 13' 4"

Bedroom 3:

193 sq/ft width 12' 4" x depth 15' 8"

Breakfast Room:

94 sq/ft width 10' 8" x depth 8' 10"

Dining Room:

182 sq/ft width 14' x depth 13'


766 sq/ft width 23' x depth 33' 4"

Gathering Room:

400 sq/ft width 20' x depth 20'


217 sq/ft width 14' x depth 15' 6"

Living Room:

423 sq/ft width 21' 2" x depth 20'

Master Bedroom:

371 sq/ft width 17' 8" x depth 21'


128 sq/ft width 12' x depth 10' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

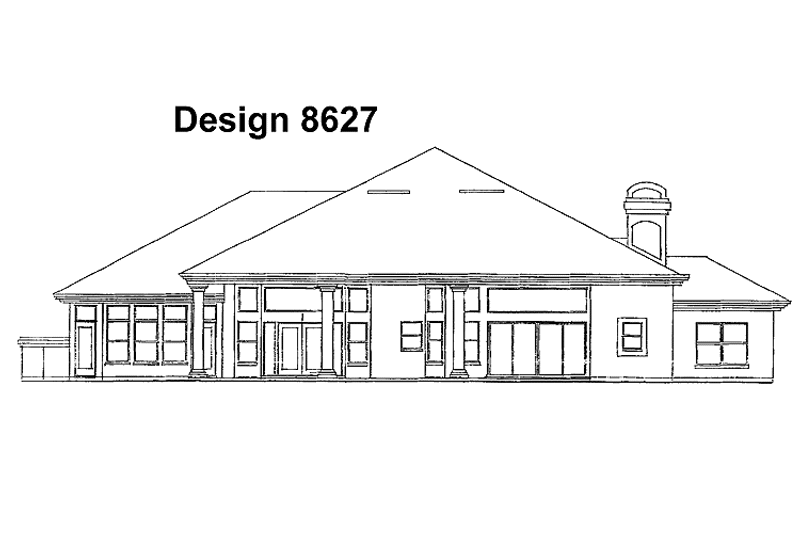

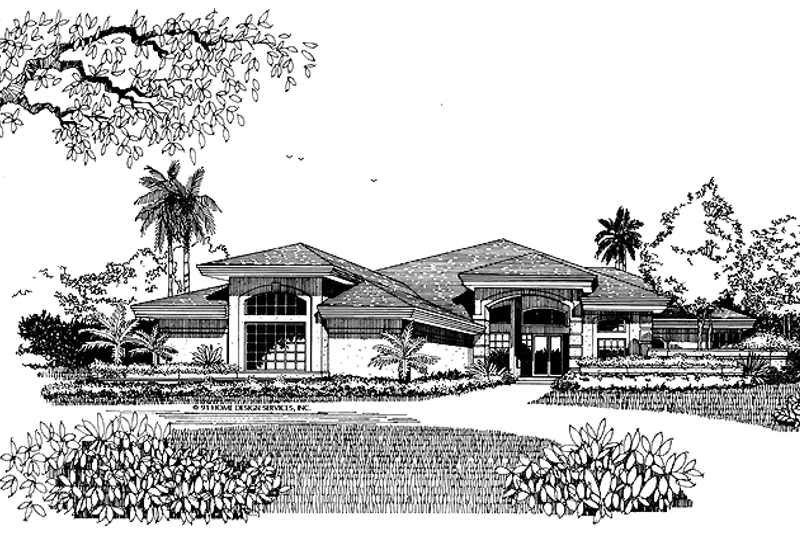

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.
