PLAN 927-211
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

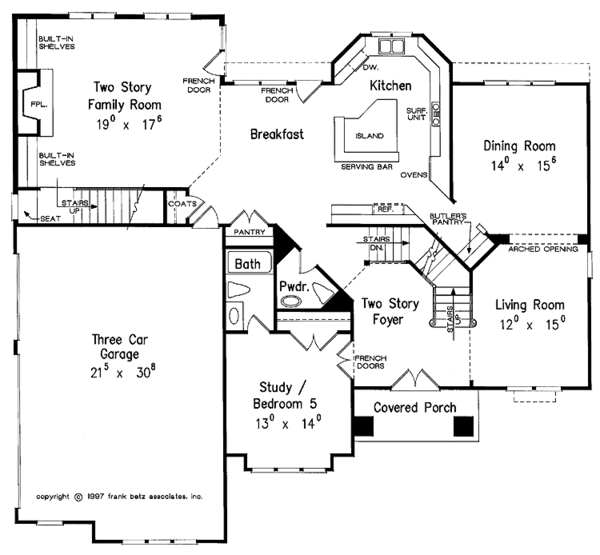

Floor Plan - Main Floor

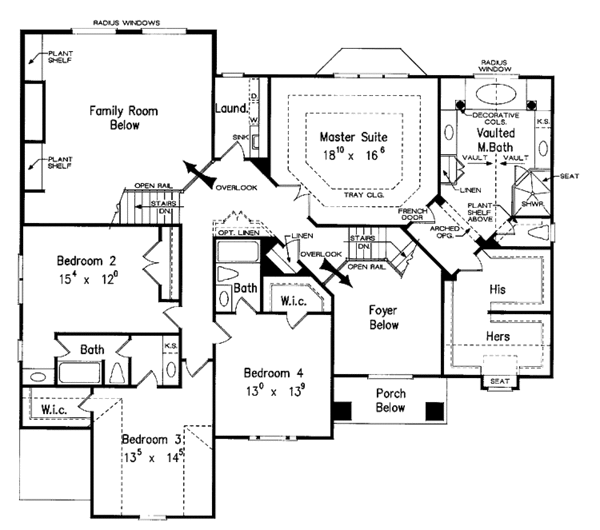

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 55'
Height : 36' 2"
Width : 60'
Area
Basement Unfinished: 1750 sq/ft
First Floor: 1870 sq/ft height 9'
Garage: 710 sq/ft
Second Floor: 1881 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
183 sq/ft width 15' 4" x depth 12'
Bedroom 3:
193 sq/ft width 13' 5" x depth 14' 5"
Bedroom 4:
178 sq/ft width 13' x depth 13' 9"
Bedroom 5:
182 sq/ft width 13' x depth 14'
Breakfast Room:
174 sq/ft width 12' x depth 14' 6"
Dining Room:
218 sq/ft width 14' x depth 15' 7"
Family Room:
331 sq/ft width 18' 10" x depth 17' 7"
Foyer:
156 sq/ft width 12' 2" x depth 12' 10"
Garage:
656 sq/ft width 21' 5" x depth 30' 8"
Kitchen:
234 sq/ft width 12' x depth 19' 6"
Laundry Room:
54 sq/ft width 6' x depth 9' 1"
Living Room:
179 sq/ft width 12' x depth 14' 11"
Master Bathroom:
193 sq/ft width 12' 6" x depth 15' 6"
Master Bedroom:
310 sq/ft width 18' 10" x depth 16' 6"
Master Closet:
84 sq/ft width 12' x depth 7'
Master Closet Two:
83 sq/ft width 12' x depth 6' 11"
Study:
182 sq/ft width 13' x depth 14'
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
