Key Specs
3793
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1016-35
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

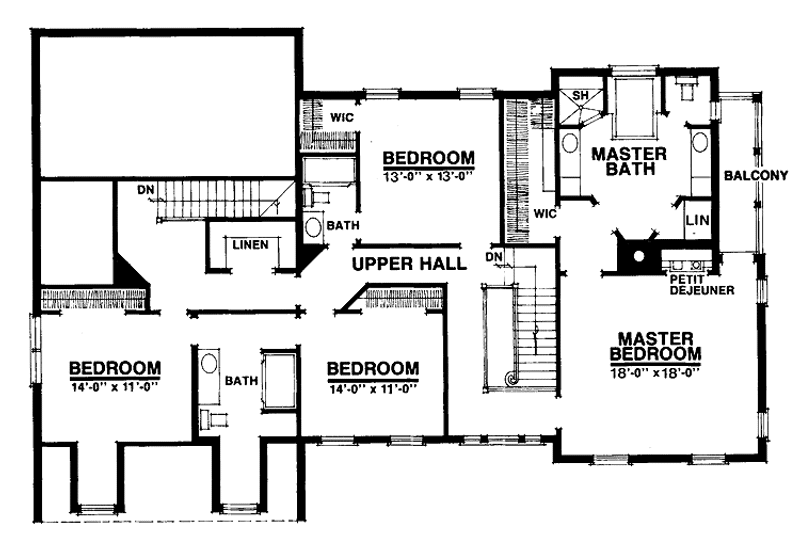

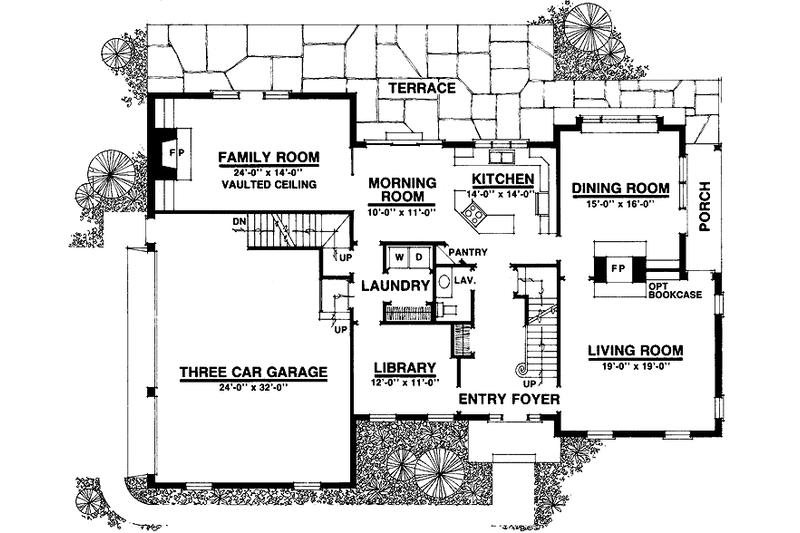

Floor Plans
Full Specs & Features
Dimension
Depth : 46'
Height : 34'
Width : 68'
Area
First Floor: 1755 sq/ft
Second Floor: 2038 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
16 sq/ft width 2' x depth 8'
Attic:
370 sq/ft width 15' 5" x depth 24'
Basement Foundation:
1290 sq/ft width 43' x depth 30'
Bathroom 2:
90 sq/ft width 8' 9" x depth 10' 4"
Bedroom 2:
173 sq/ft width 13' x depth 13' 4"
Bedroom 2 Closet:
22 sq/ft width 5' x depth 4' 6"
Bedroom 3:
160 sq/ft width 14' 4" x depth 11' 2"
Bedroom 3 Closet:
22 sq/ft width 5' x depth 4' 6"
Bedroom 4:
196 sq/ft width 14' x depth 14'
Bedroom 4 Closet:
16 sq/ft width 2' x depth 8'
Breakfast Room:
121 sq/ft width 12' 2" x depth 10'
Crawlspace Foundation:
336 sq/ft width 24' x depth 14'
Dining Room:
224 sq/ft width 14' x depth 16'
Foyer:
159 sq/ft width 13' 6" x depth 11' 10"
Game Room:
126 sq/ft width 12' x depth 10' 6"
Garage:
752 sq/ft width 31' 8" x depth 23' 9"
Gathering Room:
304 sq/ft width 23' 5" x depth 13'
Hall Bathroom:
42 sq/ft width 5' x depth 8' 6"
Hall Closet:
6 sq/ft width 3' 5" x depth 2'
Kitchen:
159 sq/ft width 12' x depth 13' 4"
Living Room:
326 sq/ft width 18' 5" x depth 17' 9"
Master Bathroom:
203 sq/ft width 14' x depth 14' 6"
Master Bedroom:
326 sq/ft width 18' 5" x depth 17' 9"
Master Closet:
73 sq/ft width 5' 6" x depth 13' 4"
Porch - Front:
64 sq/ft width 4' 4" x depth 15'
Powder Room:
29 sq/ft width 4' 6" x depth 6' 6"
Utility Room:
51 sq/ft width 5' 8" x depth 9'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1235.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
$200.00
$60.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
