PLAN 51-676

Photographs may show modified designs.

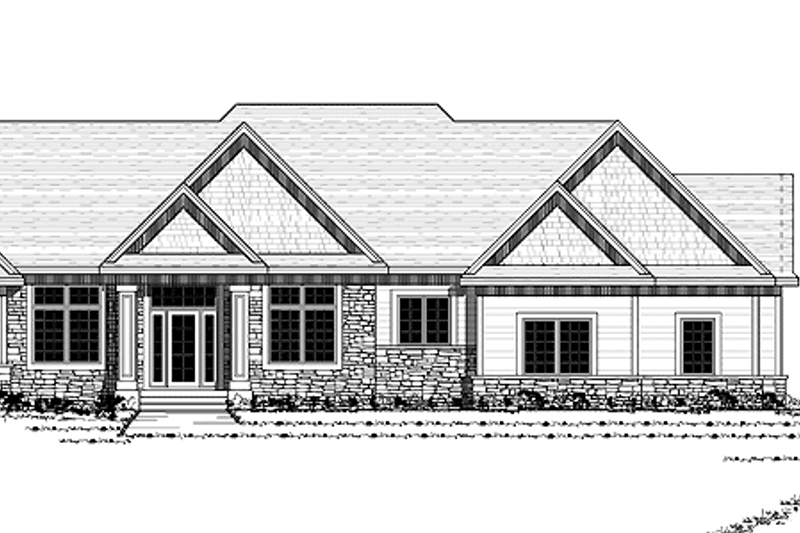

Dream House Plan - Ranch Exterior - Front Elevation Plan #51-676

Dream House Plan - Ranch Exterior - Rear Elevation Plan #51-676

Dream House Plan - Ranch Floor Plan - Lower Floor Plan #51-676

Dream House Plan - Ranch Floor Plan - Main Floor Plan #51-676

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

3805
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$212.50
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Mirror Reversed Sets$42.50 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1477.30

You save $260.70 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 51-676

Home > Style > Ranch House Plans

Key Specs

3805
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 3805 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

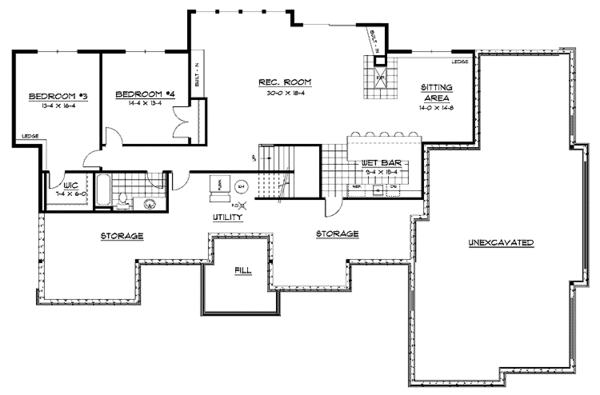

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

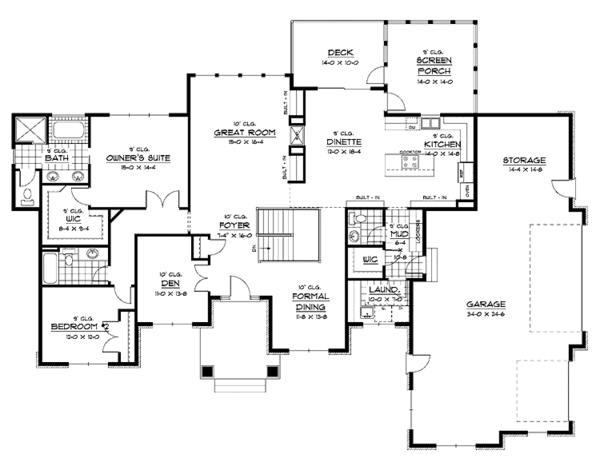

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 64' 4"

Height : 25'

Width : 86' 4"

Area

Basement Living: 1525 sq/ft height 9'

Basement Unfinished: 755 sq/ft height 9'

First Floor: 2280 sq/ft height 9'

Garage: 892 sq/ft height 9'

Porch: 196 sq/ft

Storage: 205 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Mud Room

Storage Area

Sunroom

Outdoor Spaces

Deck

Screened Porch

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

217 sq/ft width 13' 4" x depth 16' 4"

Bedroom 4:

191 sq/ft width 14' 4" x depth 13' 4"

Den:

150 sq/ft width 11' x depth 13' 8"

Dinette:

219 sq/ft width 12' x depth 18' 4"

Dining Room:

159 sq/ft width 11' 8" x depth 13' 8"

Foyer:

117 sq/ft width 7' 4" x depth 16'

Garage:

833 sq/ft width 34' x depth 24' 6"

Garage Storage:

210 sq/ft width 14' 4" x depth 14' 8"

Great Room:

244 sq/ft width 15' x depth 16' 4"

Kitchen:

205 sq/ft width 14' x depth 14' 8"

Laundry Room:

70 sq/ft width 10' x depth 7'

Master Bedroom:

214 sq/ft width 15' x depth 14' 4"

Master Walk-In Closet:

77 sq/ft width 8' 4" x depth 9' 4"

Mud Room:

67 sq/ft width 6' 4" x depth 10' 8"

Porch - Screened:

196 sq/ft width 14' x depth 14'

Recreation Room:

549 sq/ft width 30' x depth 18' 4"

Wet Bar:

143 sq/ft width 9' 4" x depth 15' 4"

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Other Note(s): This plan will not contain an electrical layout.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$1477.30

5 printed plan sets mailed to you.

8 Copy Set:
$1711.05

8 printed plan sets mailed to you.

PDF Set:
$1725.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2290.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Wood 2x4:
$212.50

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$212.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$42.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
