Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

This Italian Renaissance-style home starts with a magnificent stucco exterior, Spanish-style roof, and Old World details, such as arches and accent niches. This five-bedroom, four-bath masterpiece caters to an open layout--boasting high ceilings, windowed walls, and views throughout the home of the luxurious pool and covered lanai. Family and friends will enter this stunning home through the expansive foyer. The foyer stretches into the parlor, featuring sweeping views to the lanai and access to the backyard. The entrance is flanked by a study that can be converted into a fourth bedroom, and a formal dining room. There is also a convenient service entrance accessible from the three-car garage. The elegant dining room is open to the foyer and boasts views of the front yard. The study is accessed through double doors, as it requires more privacy whether it is used as a bedroom or home office. The master wing features His and Hers walk-in closets and a lavish bath with His and Hers vanities. A sitting room extends the master bedroom out ot the lanai with poolside views. Homeowners can enjoy a cool drink from the juice bar located in the master suite. The opposite wing is host to two additional suites, conveniently placed away from the master suite to ensure privacy for both the homeowners and visitors. The family room is sure to be the hub of activity, with a built-in entertainment center and views of the backyard pool through oversized windows. The family room also opens to the lanai, and a summer kitchen is optional. Meals can be prepared in the gourmet kitchen, complete with a work island, and enjoyed in the connecting breakfast nook or adjacent family room. Upstairs reside a spacious bonus room and connecting bathroom--perfect for a guest suite or a family bedroom. This spacious home is ideal for empty-nesters who enjoy the one-floor layout with plenty of space, or a large family who embraces the convenience of one-level design.

Floor Plans

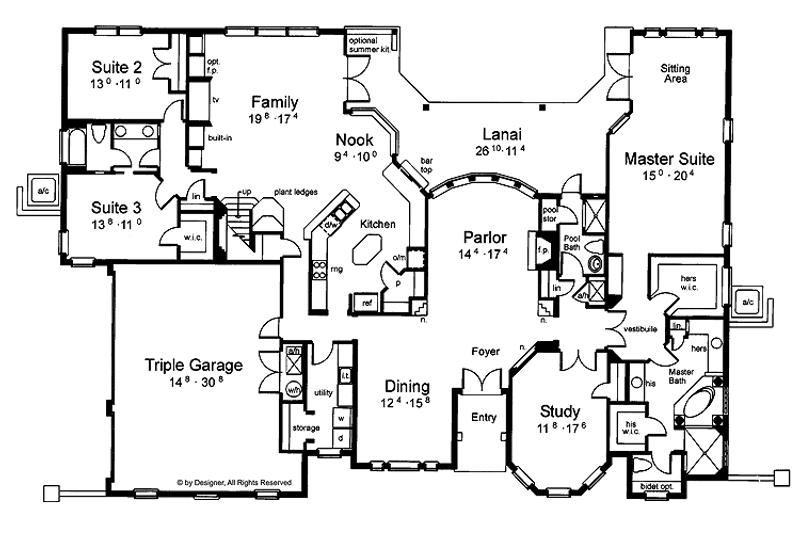

Floor Plan - Main Floor Plan

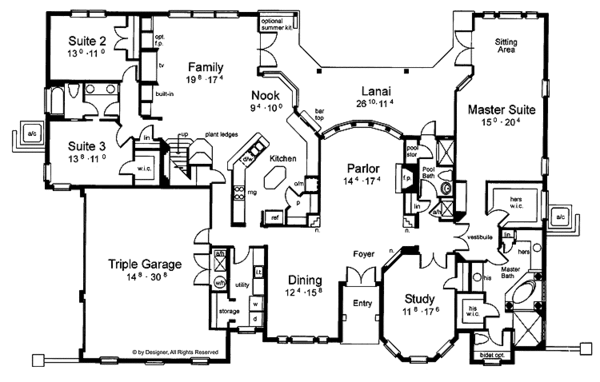

Mediterranean Floor Plan - Main Floor Plan Plan #1039-5

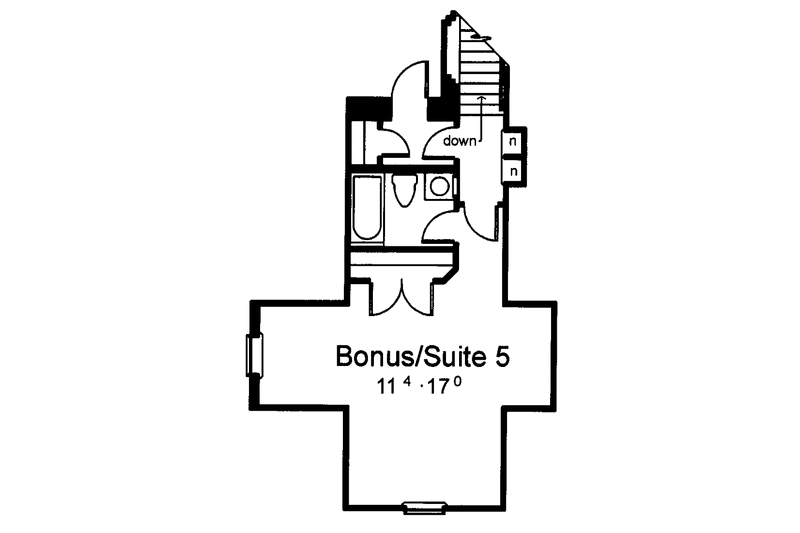

Floor Plan - Upper Floor Plan

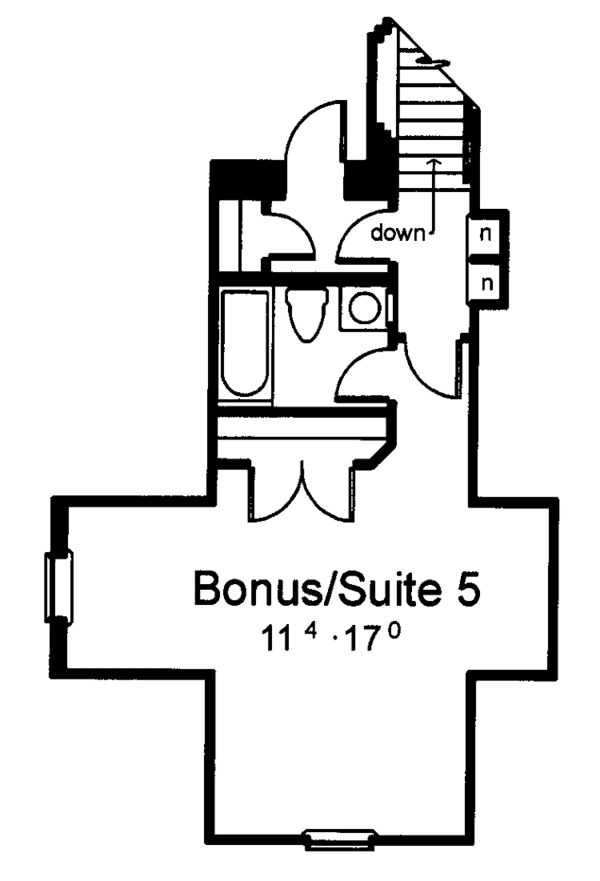

Mediterranean Floor Plan - Upper Floor Plan Plan #1039-5

Full Specs & Features

Depth : 60'
Height : 27'
Width : 86' 4"
First Floor: 3437 sq/ft
Second Floor: 420 sq/ft
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Outdoor Kitchen Grill
