PLAN #51-1071

Key Specs


3997
sq ft

4
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

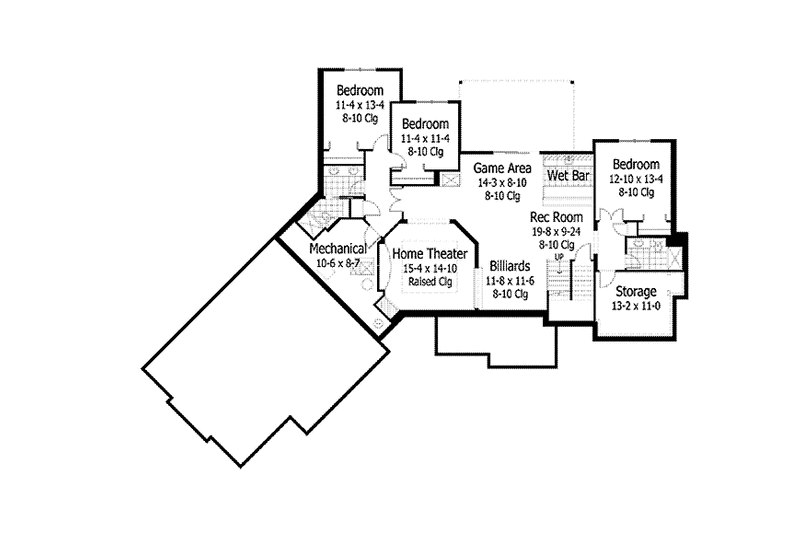

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #51-1071

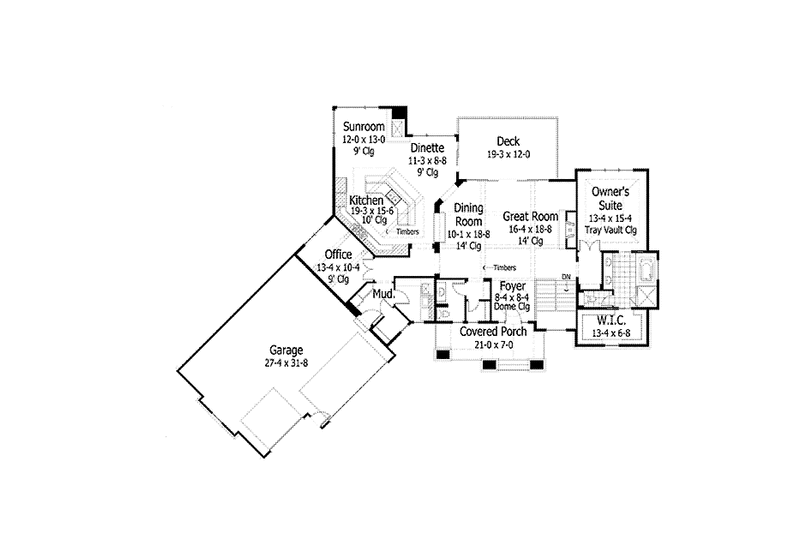

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #51-1071

Full Specs & Features


Dimension
Depth : 68'
Height : 25'
Width : 93' 4"
Area
Basement Living: 1795 sq/ft height 8'
First Floor: 2202 sq/ft height 9'
Garage: 857 sq/ft
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Kitchen Features
Breakfast Nook
Additional Room Features
Mud Room
Den Office Study Computer
Hobby Rec Room Game Room
Media Room
Outdoor Spaces
Covered Front Porch
Screened Porch Sunroom
Deck
Rooms

Bedroom 2:

151 sq/ft width 11' 4" x depth 13' 4"

Bedroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 4:

171 sq/ft width 12' 10" x depth 13' 4"

Covered Porch:

147 sq/ft width 21' x depth 7'

Deck:

231 sq/ft width 19' 3" x depth 12'

Dinette:

63 sq/ft width 11' 3" x depth 5' 8"

Dining Room:

186 sq/ft width 10' 1" x depth 18' 6"

Foyer:

69 sq/ft width 8' 4" x depth 8' 4"

Game Room:

125 sq/ft width 14' 3" x depth 8' 10"

Garage:

865 sq/ft width 27' 4" x depth 31' 8"

Great Room:

321 sq/ft width 16' 4" x depth 19' 8"

Home Theater:

227 sq/ft width 15' 4" x depth 14' 10"

Kitchen:

298 sq/ft width 19' 3" x depth 15' 6"

Master Suite:

204 sq/ft width 13' 4" x depth 15' 4"

Mechanical/Equipment Room:

90 sq/ft width 10' 6" x depth 8' 7"

Recreation Room:

216 sq/ft width 19' 8" x depth 11'

Storage:

144 sq/ft width 13' 2" x depth 11'

Sun Room:

156 sq/ft width 12' x depth 13'

What's Included In This Plan Set


  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
  • Note: These plans will not contain an electrical layout.
» See important information before purchasing.
