Plan Description

Traditional in style, but updated with today’s popular materials, this walkout ranch home is the perfect addition to your neighborhood. A uniquely detailed entry ceiling will impress you as you enter the home, where the den is located to the front on your right, and the great room lies directly ahead. A step ceiling and fireplace with built-ins will impress you as you encounter the main living area of the home. To your left, a kitchen with central island that provides extra seating as well as a view of the great room, and an adjacent dining room complete the area. The master suite lies to the right of the great room and includes a step ceiling, walk-in closet and on-suite bath. Downstairs you’ll be impressed with the use of space where you’ll find two additional bedrooms, a large family room, wet bar, and game room. A split-load, three-stall garage completes the home.

Floor Plans

Floor Plan - Lower Floor Plan

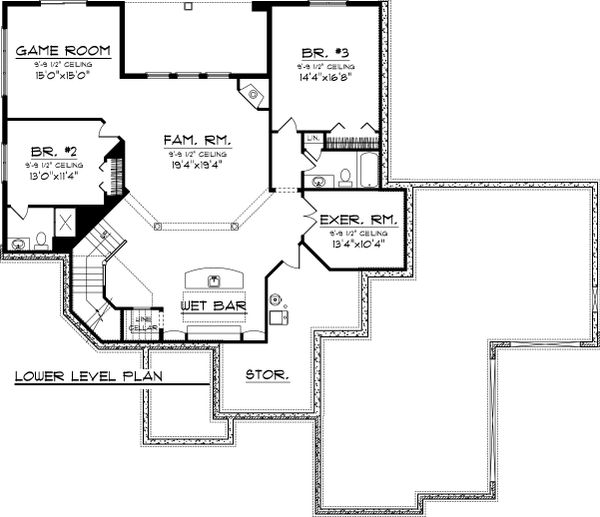

Ranch Floor Plan - Lower Floor Plan Plan #70-1067
Floor Plan - Main Floor Plan

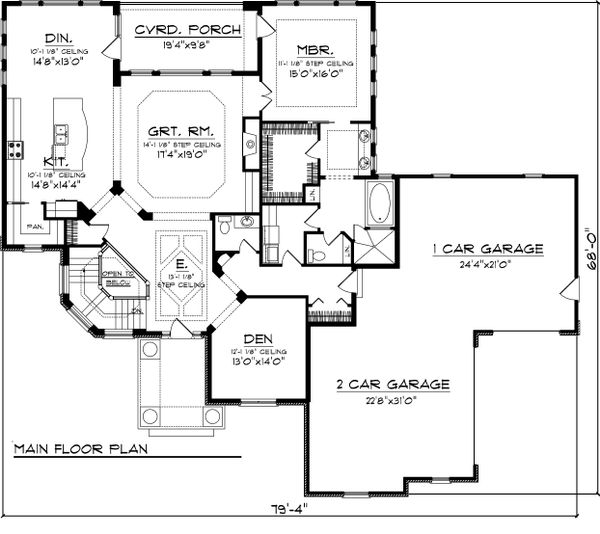

Ranch Floor Plan - Main Floor Plan Plan #70-1067

Full Specs & Features

Depth : 68'
Height : 27' 10"
Width : 79' 4"
Basement Living: 1796 sq/ft
First Floor: 2203 sq/ft
Garage: 1096 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Entry 13' Step, Great Room 14' Step, Den 12', Master Bedroom 11' Step
Main Ceiling : 10'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : stucco, stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Storage Area
Wet Bar
Garage Features
Front Entry Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch


width 79' 4" x depth 68' 4"

Bath 2:

width 9' 3" x depth 5' 10"

Bathroom 2:

width 10' x depth 5'

Bathroom 3:

width 9' 3" x depth 5' 10"

Bedroom 2:

width 13' x depth 11' 4"

Bedroom 2 Closet:

width 7' 2" x depth 2' 1"

Bedroom 3:

width 14' 4" x depth 16' 8"

Bedroom 3 Closet:

width 2' 1" x depth 5'


width 13' x depth 14'


width 14' 8" x depth 13'

Exercise Room:

width 13' 4" x depth 10' 4"

Family Room:

width 19' 4" x depth 19' 4"


width 8' 10" x depth 15' 4"


width 24' 4" x depth 21'

Garage 2:

width 24' 4" x depth 21'

Half Bath:

width 6' 2" x depth 5'


width 14' 6" x depth 4'

Hall Bath:

width 10' x depth 5'


width 14' 8" x depth 14' 4"


width 5' 10" x depth 8' 2"

Master Bedroom:

width 15' x depth 16'

Master Walk In Closet:

width 7' 9" x depth 11'


width 8' x depth 5' 7"

Porch Front:

width 12' x depth 13'

Porch Rear:

width 19' 4" x depth 9' 8"

Powder Room:

width 6' 2" x depth 5'

Recreation Room:

width 15' x depth 15'


width 12' 8" x depth 9' 6"

Wet Bar:

width 13' 8" x depth 14' 8"

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
