PLAN 927-641
Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (2)
Get Personalized Help
Key Specs
4045
sq ft
5
Beds
4.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 927-641
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

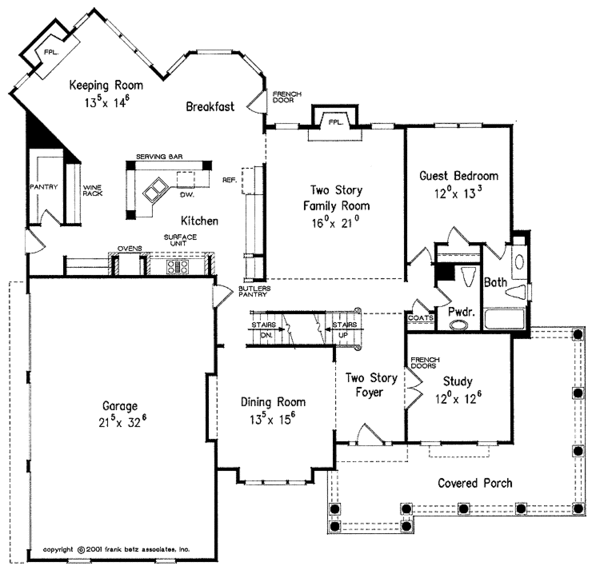

Floor Plan - Main Floor

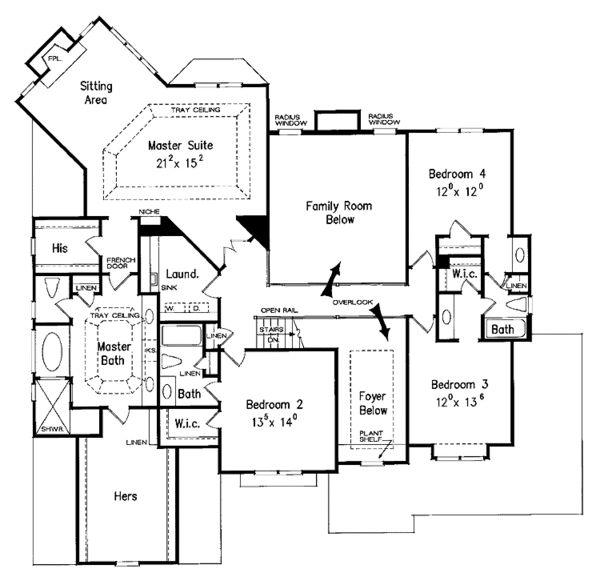

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 64'
Height : 36'
Width : 66' 4"
Area
First Floor: 1999 sq/ft
Second Floor: 2046 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : Wood - 2x4
Bedroom Features
Fireplace
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
187 sq/ft width 13' 5" x depth 14'
Bedroom 3:
162 sq/ft width 12' x depth 13' 6"
Bedroom 4:
144 sq/ft width 12' x depth 12'
Bedroom 5:
159 sq/ft width 12' x depth 13' 3"
Breakfast Room:
147 sq/ft width 12' x depth 12' 4"
Dining Room:
223 sq/ft width 14' 5" x depth 15' 6"
Family Room:
278 sq/ft width 16' x depth 17' 5"
Foyer:
88 sq/ft width 8' x depth 11'
Garage:
696 sq/ft width 21' 5" x depth 32' 6"
Keeping Room:
152 sq/ft width 13' 5" x depth 11' 4"
Kitchen:
181 sq/ft width 14' 10" x depth 12' 3"
Laundry Room:
90 sq/ft width 9' x depth 10'
Living Room:
150 sq/ft width 12' x depth 12' 6"
Master Bathroom:
185 sq/ft width 14' 3" x depth 13'
Master Bedroom:
321 sq/ft width 21' 2" x depth 15' 2"
Master Closet:
203 sq/ft width 11' 5" x depth 17' 10"
Master Closet Two:
46 sq/ft width 7' 6" x depth 6' 3"
Master Sitting Room:
152 sq/ft width 13' 5" x depth 11' 4"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$3145.00
$3495.00
$3655.00
