Key Specs


4101
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This stunning traditional exterior combines brick and stucco for a dramatic look. Tray ceilings add architectural interest to both the living and dining rooms; the living room is further graced by a fireplace. Double doors off the vaulted foyer provide access to a den--or make it a guest room, if you wish. The kitchen is spacious and boasts a cooking island and an adjoining sunny breakfast room. A private media room is accessible from the family room through double French doors. The second floor features a large master bedroom with an enormous walk-in closet, a two-sided gas fireplace and an extensive luxury master bath. Three family bedrooms--one with a private bath--and a skylit bonus room over the garage complete the upper level.<P/><BR/>

Floor Plans

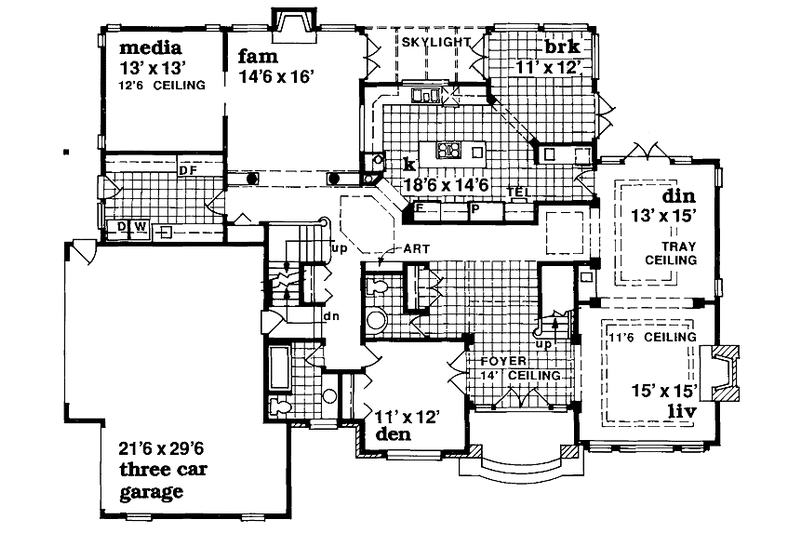

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #47-873

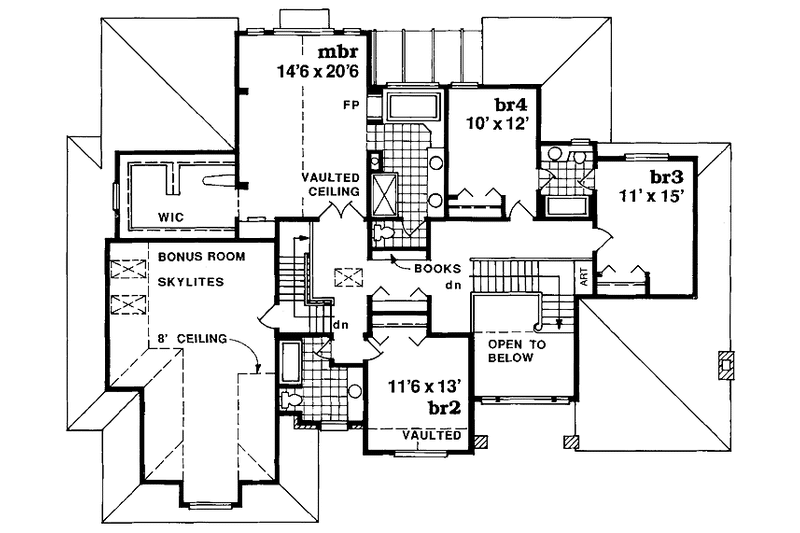

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #47-873

Full Specs & Features


Dimension
Depth : 54'
Height : 33'
Width : 72'
Area
Bonus: 497 sq/ft
First Floor: 2389 sq/ft height 9'
Second Floor: 1712 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Media Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

11 sq/ft width 5' 8" x depth 2'

Basement Foundation:

268 sq/ft width 68' 8" x depth 3' 11"

Bathroom 2:

87 sq/ft width 9' 6" x depth 9' 2"

Bathroom 3:

48 sq/ft width 6' 2" x depth 7' 10"

Bedroom 2:

147 sq/ft width 11' 4" x depth 13'

Bedroom 2 Closet:

13 sq/ft width 6' 8" x depth 2'

Bedroom 3:

165 sq/ft width 11' x depth 15'

Bedroom 3 Closet:

13 sq/ft width 6' 8" x depth 2'

Bedroom 4:

120 sq/ft width 10' x depth 12'

Bedroom 4 Closet:

13 sq/ft width 6' 8" x depth 2'

Bonus Room - Finished:

573 sq/ft width 19' 4" x depth 29' 8"

Breakfast Room:

132 sq/ft width 11' x depth 12'

Crawlspace Foundation:

3218 sq/ft width 68' x depth 47' 4"

Den/Office or Bedroom 1:

132 sq/ft width 11' x depth 12'

Dining Room:

195 sq/ft width 13' x depth 15'

Foyer:

6 sq/ft width 11' 10" x depth 7"

Game Room:

169 sq/ft width 13' x depth 13'

Garage:

634 sq/ft width 21' 6" x depth 29' 6"

Gathering Room:

232 sq/ft width 14' 6" x depth 16'

Hall Bathroom:

63 sq/ft width 7' 6" x depth 8' 6"

Hall Closet:

9 sq/ft width 2' x depth 4' 10"

Kitchen:

269 sq/ft width 18' 10" x depth 14' 4"

Living Room:

225 sq/ft width 15' x depth 15'

Master Bathroom:

136 sq/ft width 8' 6" x depth 16'

Master Bedroom:

302 sq/ft width 14' 6" x depth 20' 10"

Master Closet:

123 sq/ft width 13' x depth 9' 6"

Porch - Front:

63 sq/ft width 11' 10" x depth 5' 4"

Porch - Rear:

88 sq/ft width 13' 8" x depth 6' 6"

Powder Room:

32 sq/ft width 4' 6" x depth 7' 2"

Utility Room:

123 sq/ft width 13' x depth 9' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
