PLAN 417-419

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

4124
sq ft

Plan Bedrooms

6
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$1600.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-419

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Full Specs & Features


Dimension

Depth : 84' 8"

Width : 82' 4"

Area

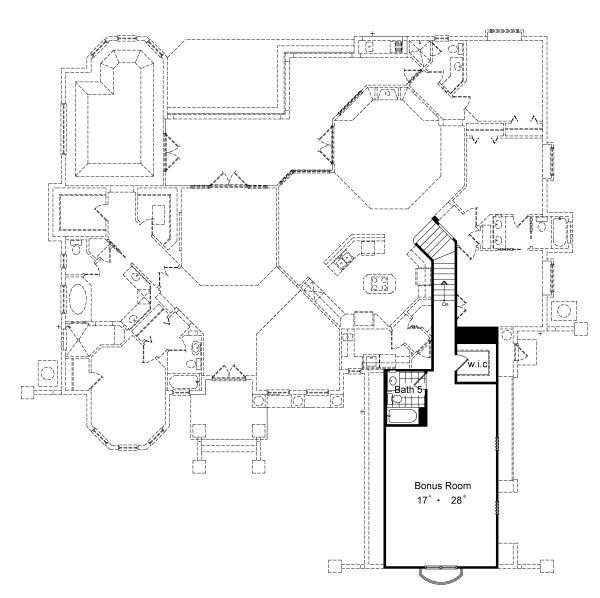

Bonus: 660 sq/ft

First Floor: 3464 sq/ft

Garage: 810 sq/ft

Porch: 101 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 12'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Concrete block

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Play Flex Room

Storage Area

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

More

Jack & Jill Bath

Rooms

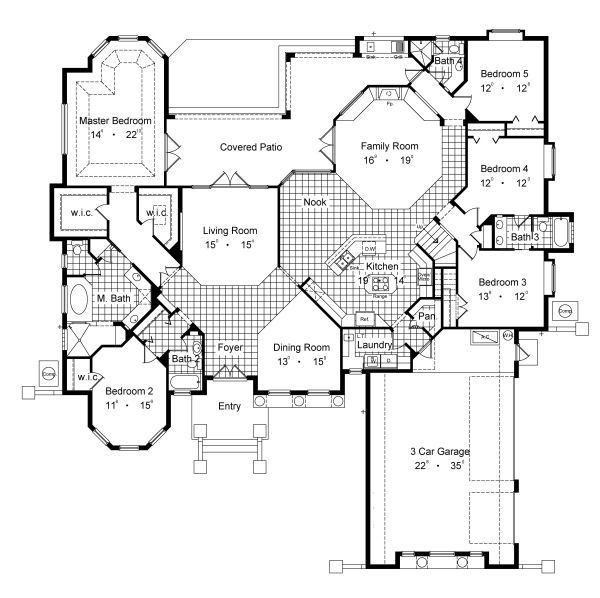

Bedroom 2:

180 sq/ft width 11' 8" x depth 15' 6"

Bedroom 3:

162 sq/ft width 13' 6" x depth 12'

Bedroom 4:

144 sq/ft width 12' x depth 12'

Bedroom 5:

152 sq/ft width 12' x depth 12' 8"

Dining Room:

204 sq/ft width 13' x depth 15' 9"

Family Room:

318 sq/ft width 16' 9" x depth 19'

Garage:

793 sq/ft width 22' 8" x depth 35'

Kitchen:

275 sq/ft width 19' x depth 14' 6"

Laundry Room:

67 sq/ft width 10' 8" x depth 6' 4"

Living Room:

229 sq/ft width 15' x depth 15' 4"

Master Bathroom:

244 sq/ft width 13' 4" x depth 18' 4"

Master Bedroom:

327 sq/ft width 14' 4" x depth 22' 10"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$1600.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1800.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1950.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$3200.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$800.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$30.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
