PLAN 927-423

Key Specs

4154
sq ft

5
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

The stately exterior is punctuated by a central turret that also brings architectural interest to the interior layout. The unique shape results in an elegant octagonal dining room. Dual fireplaces add to the ambiance on the first floor, where a guest/in-law suite is conveniently located. The second floor houses the remaining sleeping quarters, including the sensational master suite that features a tray ceiling and bayed sitting area. Three secondary bedrooms complete the second floor.

Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

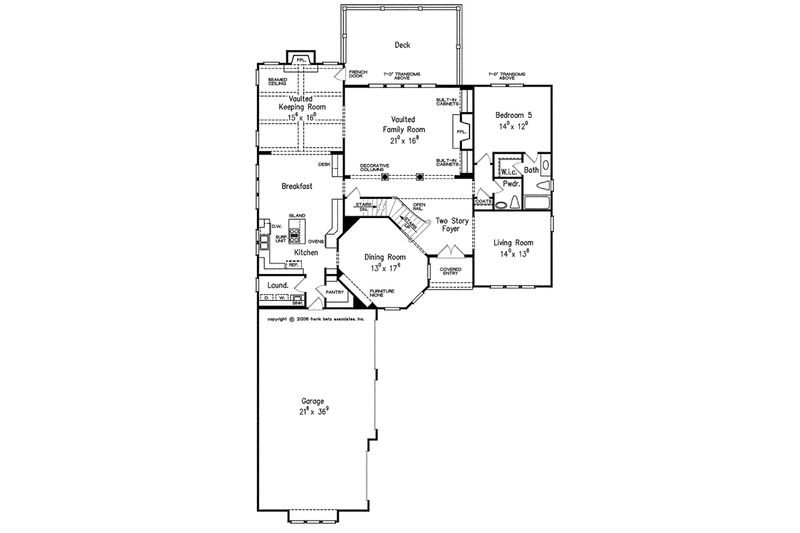

Floor Plan - Main Floor

Reverse

Dream House Plan - Tudor Floor Plan - Main Floor Plan #927-423

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

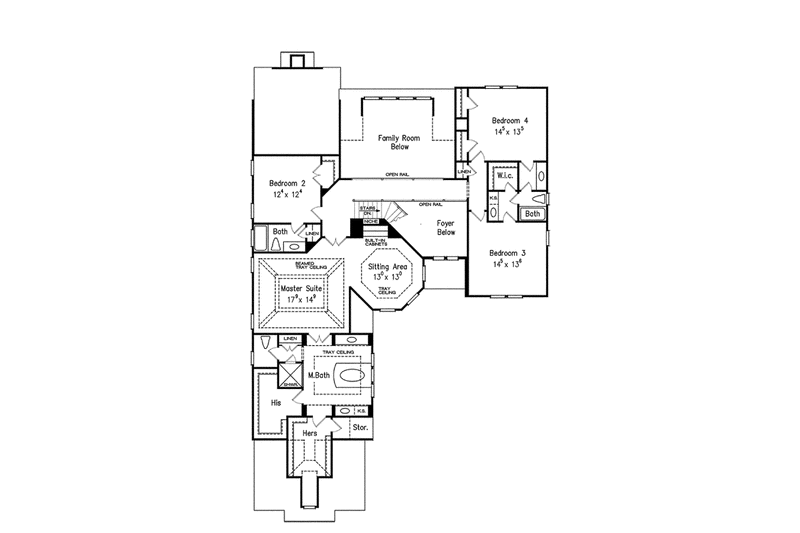

Floor Plan - Upper Floor

Reverse

Dream House Plan - Tudor Floor Plan - Upper Floor Plan #927-423

Full Specs & Features

Dimension

Depth : 86' 4"
Height : 32'
Width : 54'

Area

Basement Unfinished: 2136 sq/ft
First Floor: 2136 sq/ft height 9'
Garage: 815 sq/ft
Second Floor: 2018 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding/Stucco
Framing : Wood - 2x4

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry

Outdoor Spaces

Deck

Rooms

Bedroom 2:

152 sq/ft width 12' 4" x depth 12' 4"

Bedroom 3:

194 sq/ft width 14' 5" x depth 13' 6"

Bedroom 4:

193 sq/ft width 14' 5" x depth 13' 5"

Bedroom 5:

168 sq/ft width 14' x depth 12'

Breakfast:

162 sq/ft width 13' 6" x depth 12'

Dining Room:

227 sq/ft width 13' x depth 17' 6"

Family Room:

350 sq/ft width 21' x depth 16' 8"

Foyer:

84 sq/ft width 8' x depth 10' 6"

Garage:

790 sq/ft width 21' 6" x depth 36' 9"

Keeping Room:

248 sq/ft width 15' 6" x depth 16'

Kitchen:

142 sq/ft width 14' 3" x depth 10'

Laundry Room:

45 sq/ft width 8' 4" x depth 5' 6"

Living Room:

191 sq/ft width 14' x depth 13' 8"

Master Bathroom:

187 sq/ft width 12' 6" x depth 15'

Master Bedroom:

261 sq/ft width 17' 9" x depth 14' 9"

Master Closet - Hers:

88 sq/ft width 8' x depth 11'

Master Closet - His:

78 sq/ft width 6' x depth 13'

Master Sitting Room:

169 sq/ft width 13' x depth 13'

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.

» See important information before purchasing.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set : $1462.50	5 printed plan sets mailed to you.
8 Copy Set : $1597.50	8 printed plan sets mailed to you.
PDF Set : $1732.50	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1818.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $3303.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement: $0.00	Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Right-Reading Reverse : $225.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $40.50	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $180.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $76.50	A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets : $49.50	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
