PLAN #48-457

Key Specs


4600
sq ft

4
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This ultra-contemporary hillside plan has some amazing details that add
 style to its appearance and comfort to its livability. Extensive
 fenestration on the exterior takes advantage of ambient light on the
 inside. The upper level has a delightful entry foyer with stone columns,
 a bench and a niche. To the right is the open stairway to the lower
 level with a wall of windows on one side and a glass floor on the other.
 A wet bar connects the vaulted dining room to the professional-style
 kitchen (note the walk-in pantry). A vaulted nook with sliding doors to
 a patio is adjoining. Step down into the vaulted great room, which also
 opens to the patio (note the outdoor grill and fireplace). A large,
 skylit laundry is close by. On the lower level you'll find a game room
 with built-in entertainment center, three family bedrooms, another
 laundry area and a snack-bar area. The lower-level patio area is reached
 from Bedroom 2 or the game room. Don't miss the double garage with space
 for a shop.

Floor Plans

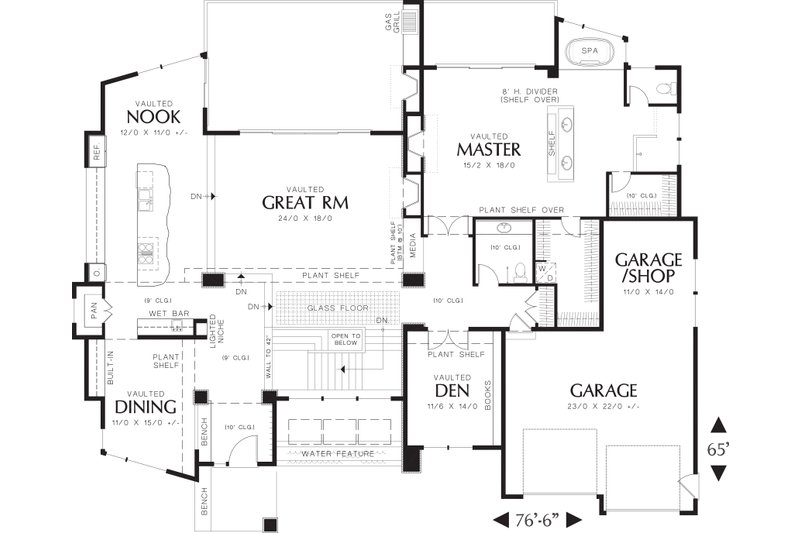

Floor Plan - Main Floor Plan
Modern Floor Plan - Main Floor Plan Plan #48-457

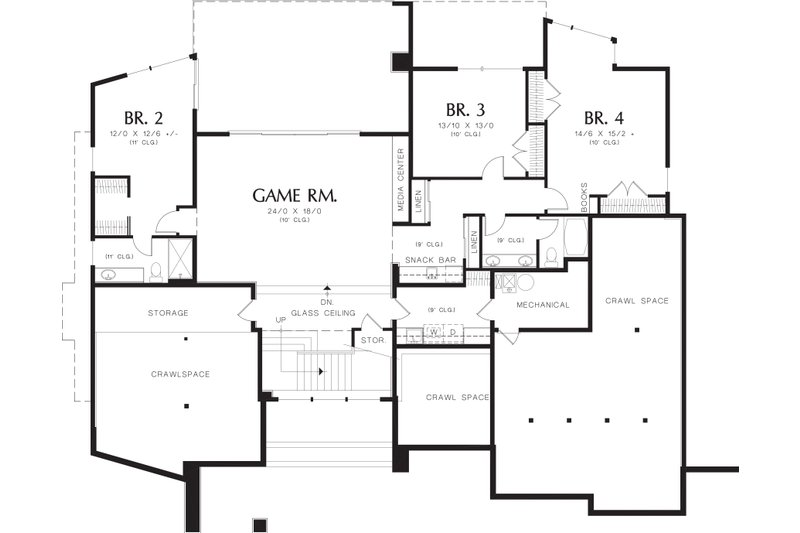

Floor Plan - Lower Floor Plan
Modern Floor Plan - Lower Floor Plan Plan #48-457

Full Specs & Features


Dimension Depth : 65'
Height : 16'
Width : 76' 6"
Area Lower Floor : 1976 sq/ft
Main Floor : 2624 sq/ft
Exterior Wall Framing Framing : 2"x6"
3rd BR Closet 12 sq/ft width 2' x depth 6'
Bathroom 2 66 sq/ft width 12' x depth 5' 6"
Bathroom 3 78 sq/ft width 13' x depth 6'
Bedroom 2 150 sq/ft width 12' x depth 12' 6"
Bedroom 2 Closet 28 sq/ft width 4' x depth 7'
Bedroom 3 179 sq/ft width 13' 10" x depth 13'
Bedroom 3 Closet 28 sq/ft width 4' x depth 7'
Bedroom 4 219 sq/ft width 14' 6" x depth 15' 2"
Bedroom 4 Closet 12 sq/ft width 2' x depth 6'
Breakfast Room 132 sq/ft width 12' x depth 11'
Deck 400 sq/ft width 25' x depth 16'
Den/Office or Bedroom 1 161 sq/ft width 11' 6" x depth 14'
Foyer 63 sq/ft width 9' x depth 7'
Game Room 432 sq/ft width 24' x depth 18'
Garage 506 sq/ft width 23' x depth 22'
Garage Storage 154 sq/ft width 11' x depth 14'
Gathering Room 432 sq/ft width 24' x depth 18'
Hall 112 sq/ft width 16' x depth 7'
Hall Bathroom 51 sq/ft width 6' 5" x depth 8'
Hall Closet 10 sq/ft width 2' x depth 5'
Kitchen 210 sq/ft width 14' x depth 15'
Kitchen Island 60 sq/ft width 4' x depth 15'
Laundry Room 77 sq/ft width 11' x depth 7'
Linen Closet 12 sq/ft width 2' x depth 6'
Master Bathroom 280 sq/ft width 14' x depth 20'
Master Bedroom 273 sq/ft width 15' 2" x depth 18'
Master Closet 40 sq/ft width 8' x depth 5'
Master Closet Two 40 sq/ft width 8' x depth 5'
Outdoor Kitchen 144 sq/ft width 9' x depth 16'
Pantry 19 sq/ft width 3' x depth 6' 5"
Wet Bar 14 sq/ft width 7' x depth 2'

What's Included In This Plan Set

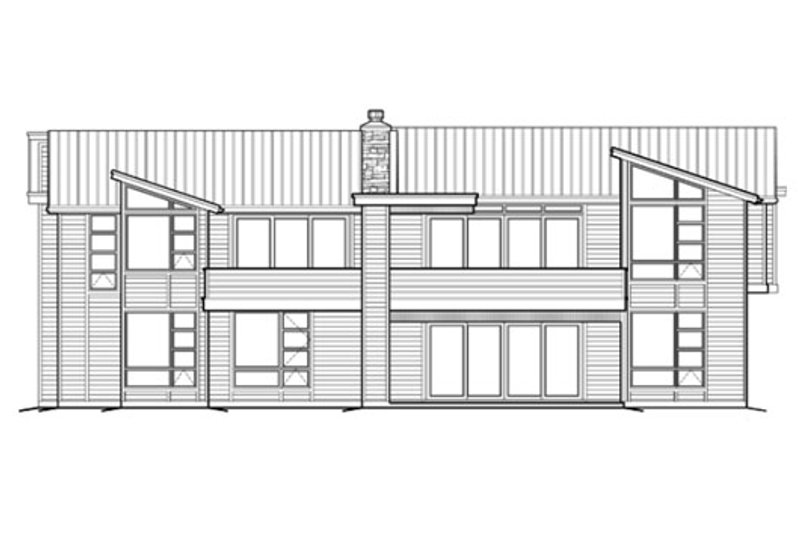

  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
» See important information before purchasing.
Plan Set
PDF Set :
$1700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1800.00
5 printed plan sets mailed to you.
CAD Set :
$3400.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$940.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$350.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Right-Reading Reverse :
100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Other Plans By this Designer
