Full Specs & Features
Depth : 40'
Height : 20' 6"
Width : 26' 8"
First Floor: 222 sq/ft height 8'
Garage: 687 sq/ft height 8'
Second Floor: 240 sq/ft height 8'
Primary Pitch : 11:12
Roof Framing : Conventional
Roof Type : Composition
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Additional Room Features
Front Entry Garage
Side Entry Garage

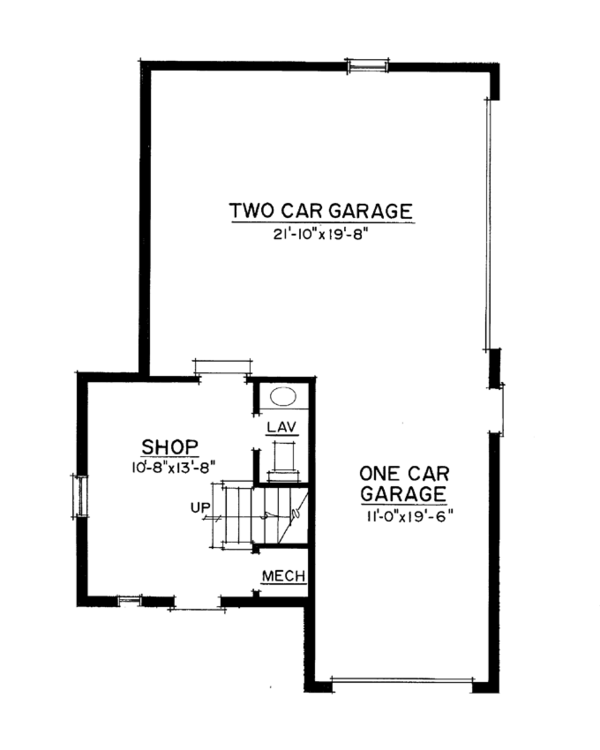

width 21' 10" x depth 19' 8"
width 11' x depth 19' 6"

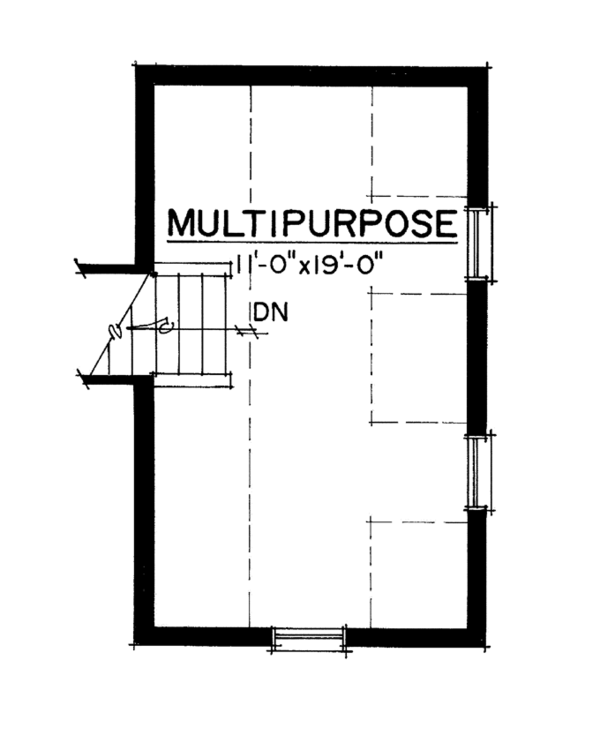

width 11' x depth 19'
width 10' 8" x depth 13' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
