PLAN #1058-10

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

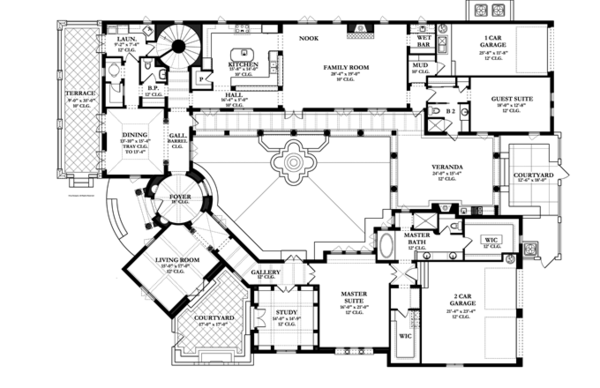

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1058-10

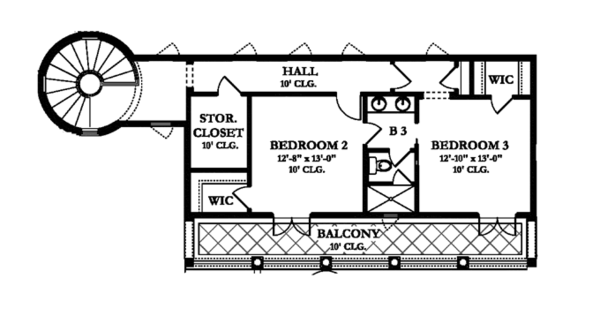

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1058-10

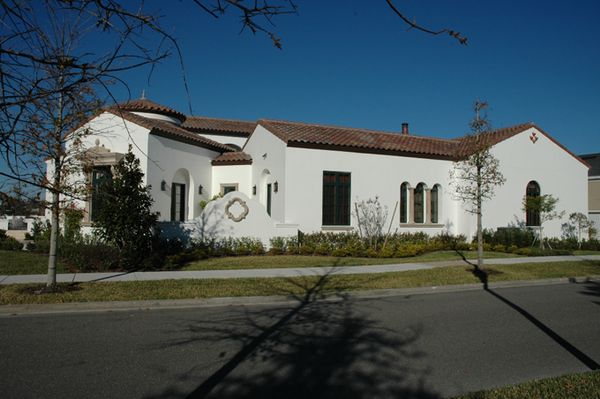

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1058-10

Full Specs & Features

Dimension Depth : 113'
Height : 30' 6"
Width : 77' 8"
Area Garage : 858 sq/ft
Main Floor : 3920 sq/ft
Upper Floor : 777 sq/ft
Bedroom Features Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Jack Jill Bath
Mud Room
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Wine Cellar
Garage Features Rear Entry Garage
Outdoor Spaces Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Loft Balcony
Outdoor Kitchen Grill
Outdoor Fireplace
Balcony 192 sq/ft width 0" x depth 0"
Bedroom 2 width 12' 8" x depth 13'
Bedroom 3 width 12' 10" x depth 13'
Courtyard width 12' 6" x depth 18'
Courtyard width 17' x depth 17'
Dining width 13' 10" x depth 15' 4"
Family Room width 28' 4" x depth 19'
Garage width 21' 4" x depth 23' 4"
Garage 2 width 25' 8" x depth 11' 8"
Guest Suite width 18' x depth 12' 8"
Hall width 16' 4" x depth 5'
Kitchen width 15' 8" x depth 14'
Laundry width 9' 2" x depth 7' 4"
Living Room width 15' x depth 17'
Master Bedroom width 16' x depth 21'
Study width 14' x depth 14' 9"
Verandah 678 sq/ft width 24' x depth 15' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6:
Wood 2x6
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
