Plan Description

This majestic Early American mansion presents a sturdy, formal outside appearance; inside, it is especially well suited for a large family that likes big informal get-togethers. The huge family room, with a corner fireplace that merges with a dining nook and adjoins the country-style kitchen, will surely be the center of activity. Five bedrooms are placed throughout the home's two levels, including a glorious master suite with all the comforts you've ever dreamed about. A game room joins three bedrooms upstairs. For formal socializing, the dining area and living room are easily entered from the foyer, which guests reach through the impressive pillars of the covered entry. A den, or make it a study, is also located near the front. To the rear is a covered patio, perfect for meals alfresco.

Full Specs & Features


Depth : 87'

Height : 34'

Width : 89' 4"


First Floor: 3505 sq/ft height 12'

Second Floor: 1302 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Master Sitting Area

Outdoor Spaces


Covered Front Porch

Covered Rear Porch


3rd BR Closet:

42 sq/ft width 7' x depth 6'

Bathroom 2:

65 sq/ft width 6' 4" x depth 10' 4"

Bathroom 3:

56 sq/ft width 9' 8" x depth 5' 10"

Bedroom 2:

171 sq/ft width 13' 8" x depth 12' 7"

Bedroom 2 Closet:

31 sq/ft width 11' 8" x depth 2' 8"

Bedroom 3:

205 sq/ft width 13' 8" x depth 15'

Bedroom 3 Closet:

31 sq/ft width 11' 8" x depth 2' 8"

Bedroom 4:

214 sq/ft width 14' 4" x depth 15'

Bedroom 4 Closet:

42 sq/ft width 7' x depth 6'

Bedroom 5:

203 sq/ft width 16' 6" x depth 12' 4"

Breakfast Room:

204 sq/ft width 15' 6" x depth 13' 2"

Den/Office or Bedroom 1:

176 sq/ft width 12' 4" x depth 14' 4"

Dining Room:

113 sq/ft width 11' 9" x depth 9' 8"


90 sq/ft width 9' 4" x depth 9' 8"

Game Room:

263 sq/ft width 16' 10" x depth 15' 8"


735 sq/ft width 35' x depth 21'

Gathering Room:

357 sq/ft width 17' x depth 21'


342 sq/ft width 19' x depth 18'

Laundry Room:

70 sq/ft width 10' x depth 7'

Living Room:

179 sq/ft width 16' 4" x depth 11'

Master Bathroom:

252 sq/ft width 14' x depth 18'

Master Bedroom:

408 sq/ft width 17' x depth 24'

Master Closet:

102 sq/ft width 7' 8" x depth 13' 4"

Porch - Front:

152 sq/ft width 23' 6" x depth 6' 6"

Porch - Rear:

484 sq/ft width 33' x depth 14' 8"

Powder Room:

81 sq/ft width 8' 2" x depth 10'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

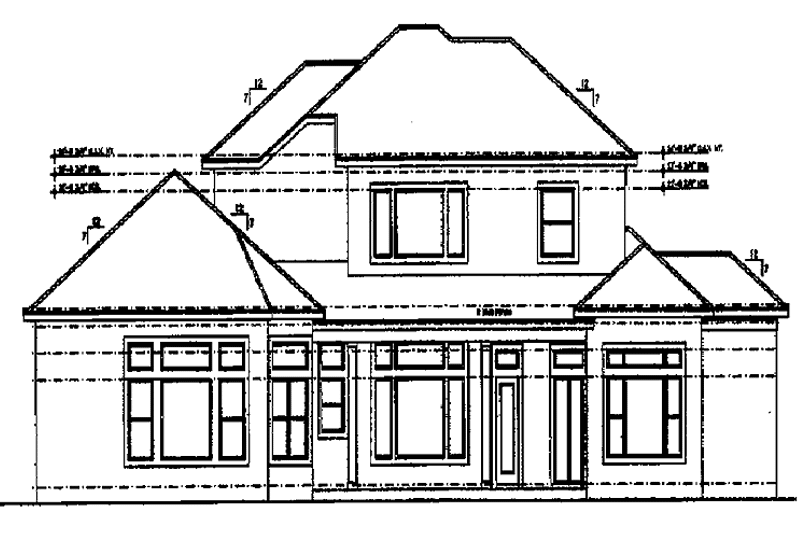

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
One electronic set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets:
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
