PLAN #417-814

Key Specs


4848
sq ft

2
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Understated elegance is the first impression as you approach this beautiful house, with a magnificent stone entryway and double French doors leading to the grand foyer. The plan has two master suites with details too numerous to mention. There is also a den/study which can also be a 3rd bedroom. Unique features include a round nook area overlooking the covered rear porch, a wine cellar, and library with fireplace. The gourmet kitchen will amaze, as will the huge family room with 2 way fireplace leading to the garden.

Floor Plans

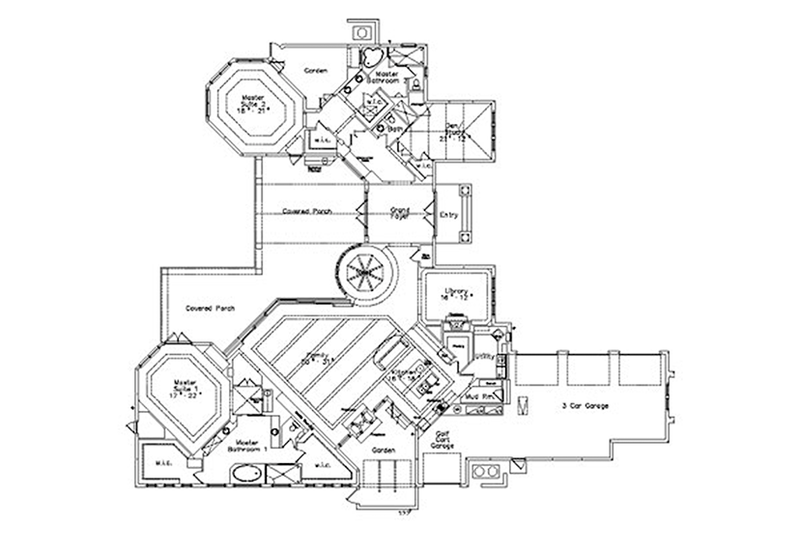

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #417-814

Full Specs & Features


Dimension
Depth : 122'
Width : 100'
Area
First Floor: 4848 sq/ft
Garage: 1153 sq/ft
Bedroom Features
2 Master Suites
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Golf Cart Storage
Outdoor Spaces
Courtyard
Covered Rear Porch
Outdoor Kitchen Grill
Rooms

Covered Front Porch:

107 sq/ft

Covered Rear Porch:

1107 sq/ft

Den/ Study:

270 sq/ft width 21' 4" x depth 12' 8"

Family Room:

779 sq/ft width 25' x depth 31' 2"

Garage:

1153 sq/ft

Kitchen:

306 sq/ft width 16' 10" x depth 18' 2"

Library:

212 sq/ft width 16' 9" x depth 12' 8"

Master Suite 1:

395 sq/ft width 17' 8" x depth 22' 4"

Master Suite 2:

419 sq/ft width 18' 6" x depth 21' 8"
