PLAN 27-497

Photographs may show modified designs.

Save
  • Jump to:
  • All (2)

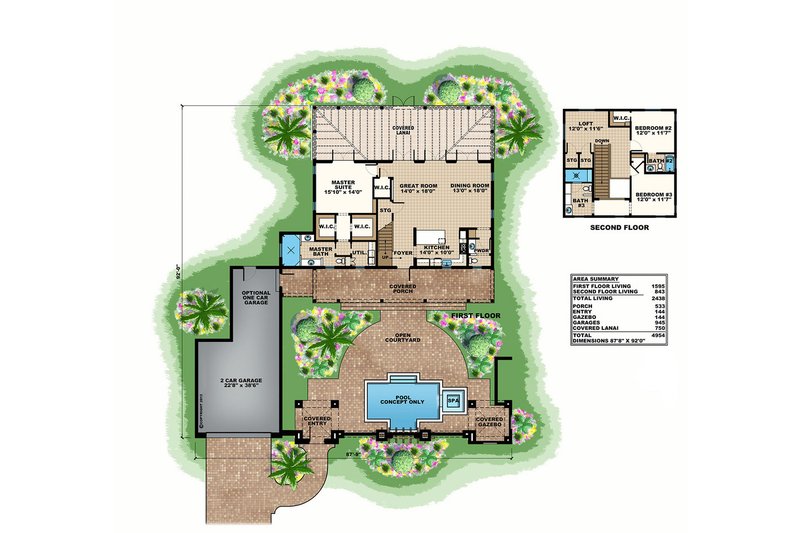

  • Floor plans (1)
Questions? Get Personalized Help
Home  >  Style  >  Beach

Key Specs


Plan Sq Ft

4954
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
$1715.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 27-497

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


This Courtyard House Plan evokes a casual elegance and the open floor plan creates fluidity between the rooms, both indoor and out. The two story home design offers almost 2,500 square feet of living space with three bedrooms, two full baths and one half bath, an upstairs loft and a spacious three car garage. The great room layout allows the casual living areas to remain open to each other while they remain defined by individual furnishings and décor. A series of three French doors allow an abundance of natural light into the space while creating an easy transition to the outdoor living area. The covered lanai spans the rear of the home and is screened-in for year round enjoyment! The Hideaway House Plan has a distinct appeal and is a beautiful, functional home for any location.

Full Specs & Features


Dimension

Depth : 92'

Height : 29' 7"

Width : 87' 8"

Area

Garage : 945 sq/ft

Main Floor : 1595 sq/ft

Patios : 750 sq/ft

Porch : 533 sq/ft

Upper Floor : 843 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9' 4"

Roof

Primary Pitch : 4:12

Roof Framing : Mfg Trusses

Roof Type : Concrete Tile

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : CMU, 2x6 wood frame

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Sunroom

Garage Features

Detached Garage

Front Entry Garage

Oversized Garage

Tandem Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Screened Porch

More

Economical To Build

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

What's Included In This Plan Set


Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$1715.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$1715.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1715.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
