Giving the impression of a luxurious villa resort, this Italian country home is a study in fine living. Arched windows mark the grand entry, where a formal foyer reveals an elegant dining room on the right and a light-filled great room just ahead. An inglenook, characterized by its cozy fireplace, is a wonderful place to relax or enjoy a casual meal. Three family suites are located on the left, graced by a curved-window hallway. The master suite enjoys solitude on the upper level and hosts a private sitting room and lavish bath with a separate vanity and Roman tub. Other extras not to be missed: a cabana bath, eight pairs of French doors to the rear lanai and ample garage storage.

Floor Plans

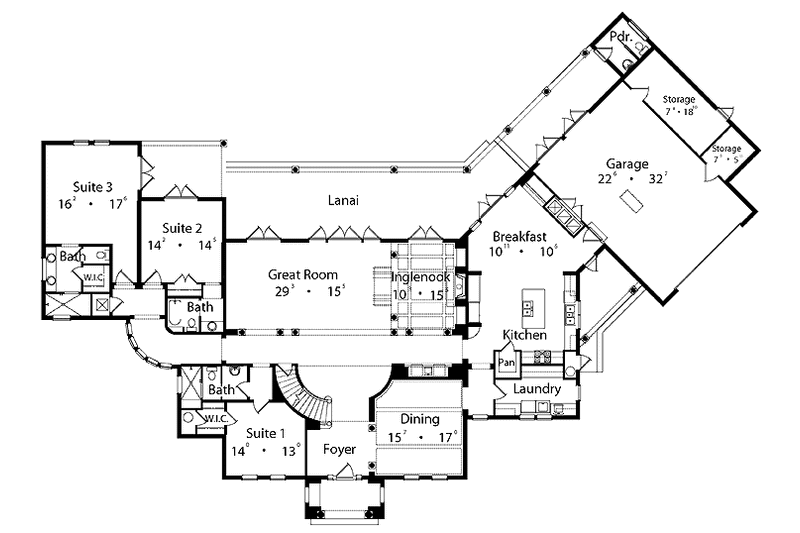

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-753

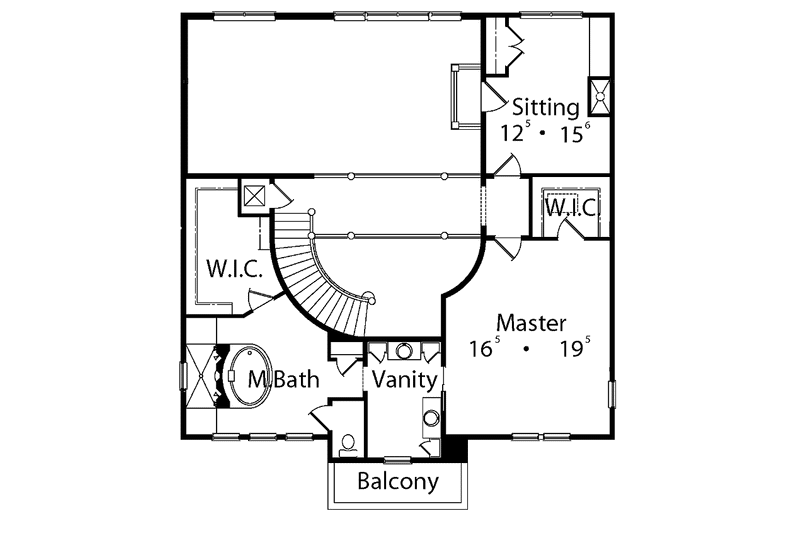

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-753

Full Specs & Features

Depth : 89' 10"
Height : 30'
Width : 95' 4"
First Floor: 3745 sq/ft height 10'
Second Floor: 1250 sq/ft
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Outdoor Spaces
Covered Rear Porch

3rd BR Closet:

12 sq/ft width 6' x depth 2'

Bedroom 2:

182 sq/ft width 14' x depth 13'

Bedroom 2 Closet:

27 sq/ft width 5' 6" x depth 5'

Bedroom 3:

206 sq/ft width 14' 3" x depth 14' 6"

Bedroom 3 Closet:

27 sq/ft width 5' 6" x depth 5'

Bedroom 4:

288 sq/ft width 16' 6" x depth 17' 6"

Bedroom 4 Closet:

22 sq/ft width 4' 9" x depth 4' 9"

Breakfast Room:

247 sq/ft width 19' x depth 13'

Dining Room:

263 sq/ft width 15' 6" x depth 17'


85 sq/ft width 9' x depth 9' 6"

Gathering Room:

478 sq/ft width 29' x depth 16' 6"


351 sq/ft width 19' x depth 18' 6"

Laundry Room:

124 sq/ft width 8' 9" x depth 14' 3"

Master Bathroom:

357 sq/ft width 25' 6" x depth 14'

Master Bedroom:

316 sq/ft width 16' 3" x depth 19' 6"

Master Closet:

46 sq/ft width 7' 9" x depth 6'

Porch - Front:

98 sq/ft width 14' x depth 7'

Porch - Left:

150 sq/ft width 15' x depth 10'

Porch - Rear:

518 sq/ft width 41' 6" x depth 12' 6"

Porch - Right:

324 sq/ft width 40' 6" x depth 8'

Powder Room:

52 sq/ft width 7' 6" x depth 7'


193 sq/ft width 25' x depth 7' 9"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

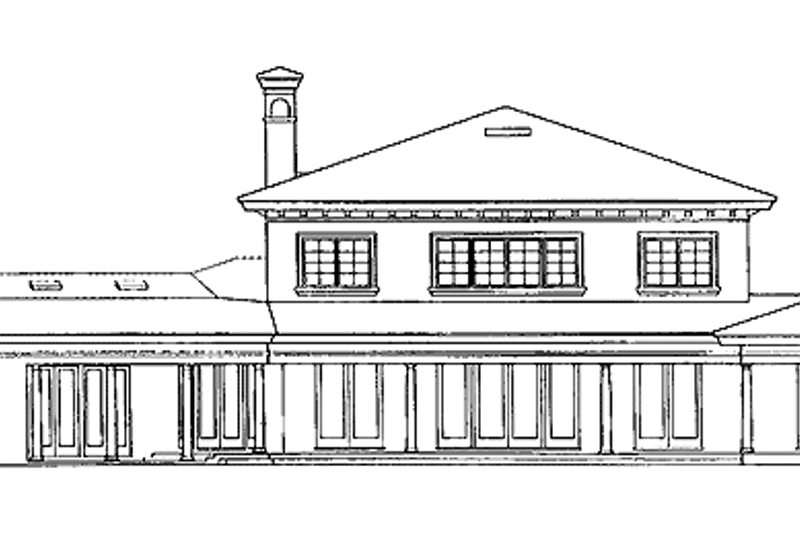

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
