PLAN #1058-97

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

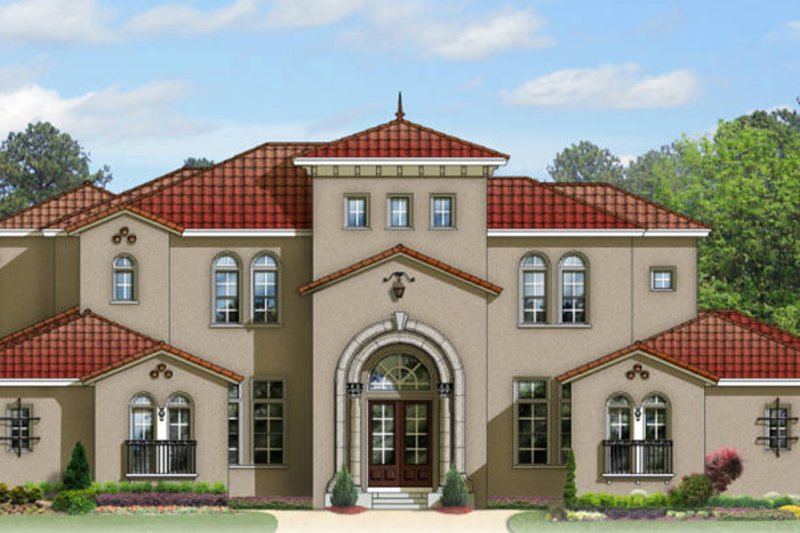

A welcoming courtyard, tile roof and arched windows are among the exceptional exterior features that would make this plan a gorgeous addition to any community. The courtyard approach, flanked on either side by two garage and garden areas, leads to the first level which is a blend of open and private spaces. In the rear, there are two covered areas, one with an outdoor kitchen and fireplace. The luxurious master suite is on the first level. Upstairs, there are two additional bedrooms, a computer area and a home theater. In the rear, there is an upper level covered balcony and a sundeck.

Floor Plans

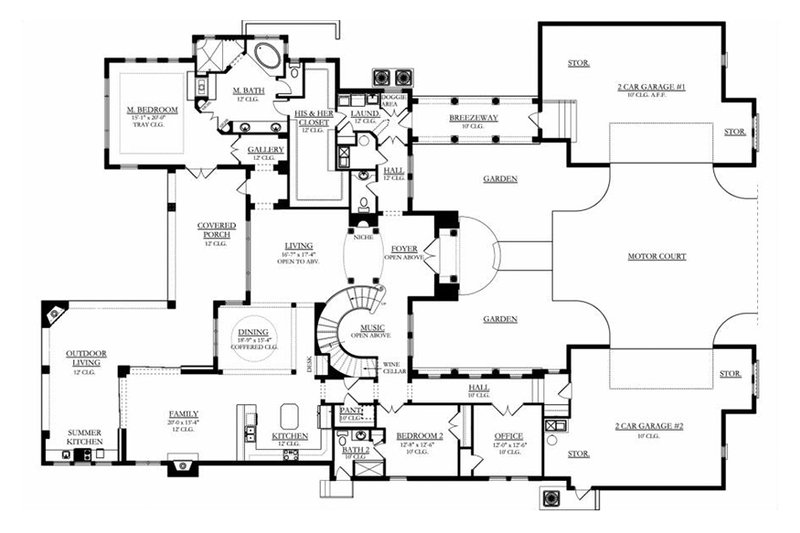

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1058-97

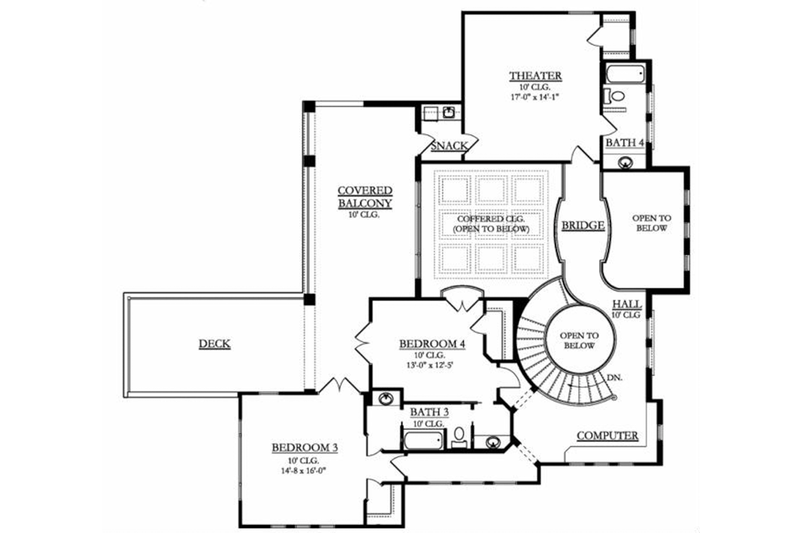

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1058-97

Full Specs & Features

Depth : 124' 8"
Height : 33'
Width : 81' 8"
First Floor: 3541 sq/ft
Garage: 1672 sq/ft height 10'
Second Floor: 1483 sq/ft height 10'
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Media Room
Wine Cellar
Open Floor Plan
Garage Features
Detached Garage
Golf Cart Storage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Loft Balcony
Outdoor Kitchen Grill
Outdoor Fireplace

Bedroom 2:

158 sq/ft width 12' 8" x depth 12' 6"

Bedroom 3:

235 sq/ft width 14' 8" x depth 16'

Bedroom 4:

161 sq/ft width 13' x depth 12' 5"

Covered Balcony:

425 sq/ft

Covered Front Porch:

63 sq/ft

Covered Rear Porch:

909 sq/ft

Dining Room:

287 sq/ft width 18' 9" x depth 15' 4"

Family Room:

307 sq/ft width 20' x depth 15' 4"

Garage Breezeway:

185 sq/ft

Living Room:

287 sq/ft width 16' 7" x depth 17' 4"

Master Bedroom:

302 sq/ft width 15' 1" x depth 20'


150 sq/ft width 12' x depth 12' 6"


239 sq/ft width 17' x depth 14' 1"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x4:
Wood 2x4
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
