PLAN #70-741

Select Plan Set Options
What's included?
Additional Construction Sets
$50.00/each
Mirror Reversed Sets
$40.00
Subtotal
$2516.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #70-741

Key Specs


5032
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

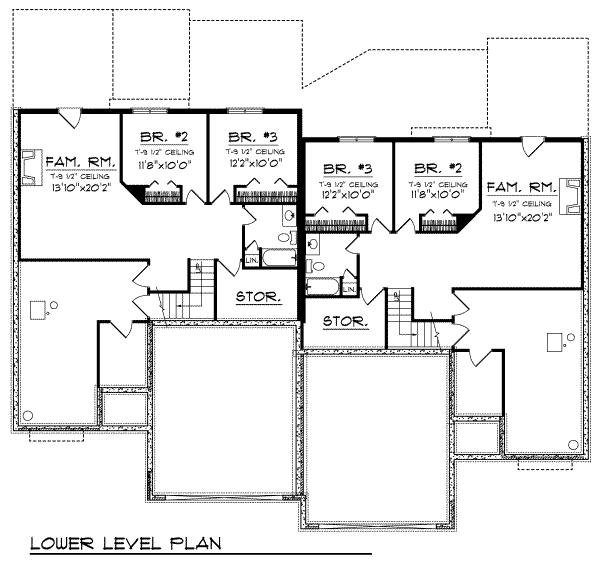

Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #70-741

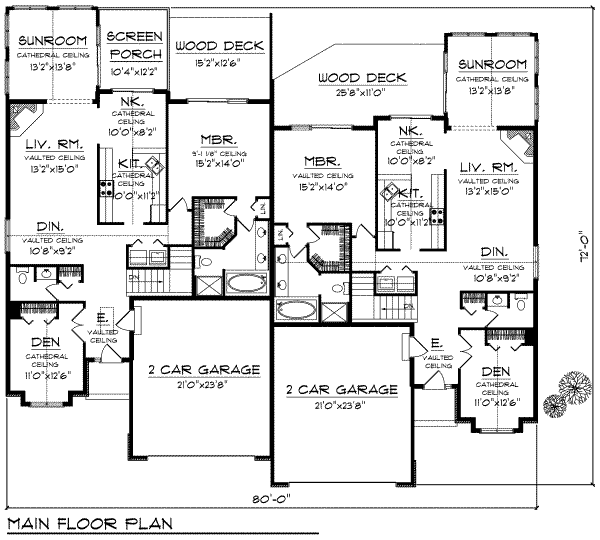

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #70-741

Full Specs & Features


Dimension Depth : 72'
Height : 28'
Width : 80'
Area Basement : 742 sq/ft
Bonus : 193 sq/ft
Garage : 506 sq/ft
Lower Floor : 1720 sq/ft
Main Floor : 3312 sq/ft
Porch : 35 sq/ft
Ceiling Main Ceiling : 9'
Roof Roof Framing : Truss
Primary Pitch : 8:12
Exterior Wall Framing Framing : 2"x6"
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Kitchen Features Breakfast Nook
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Storage Area
Lot Characteristics Suited For View Lot
Outdoor Spaces Grill Deck Sundeck
Screened Porch Sunroom
Basement Foundation 2400 sq/ft width 40' x depth 60'
Bathroom 2 17 sq/ft width 8' 6" x depth 2'
Bathroom 2 18 sq/ft width 8' 6" x depth 2' 2"
Bathroom 3 63 sq/ft width 7' 4" x depth 8' 8"
Bathroom 3 63 sq/ft width 7' 4" x depth 8' 8"
Bedroom 2 116 sq/ft width 11' 8" x depth 10'
Bedroom 2 116 sq/ft width 11' 8" x depth 10'
Bedroom 2 Closet 13 sq/ft width 4' 10" x depth 2' 9"
Bedroom 2 Closet 9 sq/ft width 4' 10" x depth 2'
Bedroom 3 121 sq/ft width 12' 2" x depth 10'
Bedroom 3 121 sq/ft width 12' 2" x depth 10'
Bedroom 3 Closet 9 sq/ft width 4' 10" x depth 2'
Bedroom 3 Closet 9 sq/ft width 4' 10" x depth 2'
Breakfast Room 81 sq/ft width 10' x depth 8' 2"
Breakfast Room 81 sq/ft width 10' x depth 8' 2"
Deck 189 sq/ft width 15' 2" x depth 12' 6"
Deck 189 sq/ft width 15' 2" x depth 12' 6"
Dining Room 97 sq/ft width 10' 8" x depth 9' 2"
Dining Room 97 sq/ft width 10' 8" x depth 9' 2"
Family Room 278 sq/ft width 13' 10" x depth 20' 2"
Family Room 278 sq/ft width 13' 10" x depth 20' 2"
Foyer 55 sq/ft width 6' 8" x depth 8' 4"
Foyer 55 sq/ft width 6' 8" x depth 8' 4"
Garage 497 sq/ft width 21' x depth 23' 8"
Garage 497 sq/ft width 21' x depth 23' 8"
Hall Closet 6 sq/ft width 3' 4" x depth 2'
Hall Closet 9 sq/ft width 3' 4" x depth 2' 9"
Kitchen 111 sq/ft width 10' x depth 11' 2"
Kitchen 111 sq/ft width 10' x depth 11' 2"
Living Room 197 sq/ft width 13' 2" x depth 15'
Living Room 197 sq/ft width 13' 2" x depth 15'
Master Bathroom 126 sq/ft width 11' 2" x depth 11' 4"
Master Bathroom 126 sq/ft width 11' 2" x depth 11' 4"
Master Bedroom 212 sq/ft width 15' 2" x depth 14'
Master Bedroom 212 sq/ft width 15' 2" x depth 14'
Master Closet 43 sq/ft width 6' x depth 7' 2"
Master Closet 43 sq/ft width 6' x depth 7' 2"
Porch - Rear 125 sq/ft width 10' 4" x depth 12' 2"
Porch - Rear 125 sq/ft width 10' 4" x depth 12' 2"
Powder Room 36 sq/ft width 7' x depth 5' 2"
Powder Room 36 sq/ft width 7' x depth 5' 2"
Slab Foundation 1213 sq/ft width 43' 4" x depth 28'
Slab Foundation 1213 sq/ft width 43' 4" x depth 28'
Storage 80 sq/ft width 11' 2" x depth 7' 2"
Storage 80 sq/ft width 11' 2" x depth 7' 2"
Study 137 sq/ft width 11' x depth 12' 6"
Study 137 sq/ft width 11' x depth 12' 6"
Sun Room 179 sq/ft width 13' 2" x depth 13' 8"
Sun Room 179 sq/ft width 13' 2" x depth 13' 8"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
$2516.00
5 printed plan sets mailed to you.
8 Copy Set :
$2768.00
8 printed plan sets mailed to you.
PDF Set :
$3522.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$3522.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$5535.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.
Crawlspace:
$395.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$395.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
