PLAN 70-1206

Photographs may show modified designs.

Save

Key Specs


Plan Sq Ft

5050
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

4
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
NOW $1802.85
You save $318.15 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Cost-to-Build Estimates

Cost to Build Reports Only $4.99 with Code CTBFALL (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 70-1206

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


This sprawling two-story home combines details of yesterday with modern amenities. • The two-story entry creates drama with a curved staircase to the left. • The two-story ceiling continues to the back of the home into the great room where a wall of windows brings the view of the outside in. • The kitchen features two islands, a large walk-in pantry and access to the sunroom off the back of the home. • The master suite lies to the back left of the home and includes 10’ ceilings, his and hers walk-in closets a Jacuzzi tub and dual sinks. • Three additional bedrooms, each with a walk-in closet are found on the second level. • You’ll also find a loft and views to below from upstairs. • The garage is a four-stall, split-load.

Full Specs & Features


Dimension

Depth : 65'

Height : 34' 5"

Width : 113' 8"

Area

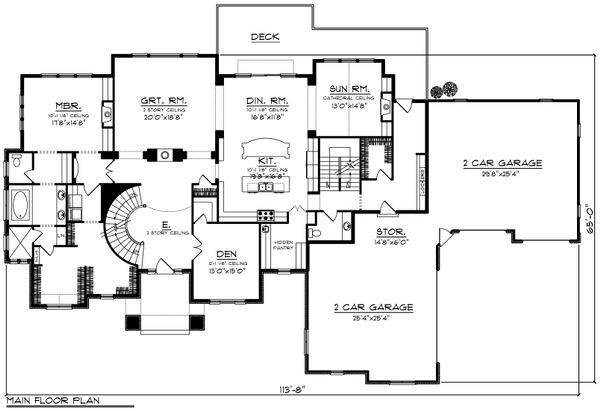

First Floor: 3291 sq/ft

Garage: 1597 sq/ft

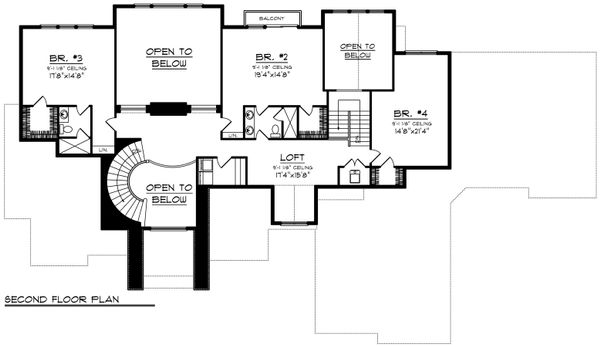

Second Floor: 1759 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry/Grt Rm 2-Story, Den 12', Sun Rm Cathedral

Lower Ceiling : 9'

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone/Stucco

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Sunroom

Upstairs Laundry

Garage Features

Front Entry Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Grill Deck Sundeck

Screened Porch

Rooms

Bath 2:

60 sq/ft width 10' x depth 6'

Bath 3:

54 sq/ft width 6' x depth 9'

Bedroom 2:

284 sq/ft width 19' 4" x depth 14' 8"

Bedroom 2 Closet:

32 sq/ft width 5' 4" x depth 6'

Bedroom 3:

259 sq/ft width 17' 8" x depth 14' 8"

Bedroom 3:

40 sq/ft width 6' 8" x depth 6'

Bedroom 4:

313 sq/ft width 14' 8" x depth 21' 4"

Bedroom 4:

20 sq/ft width 6' x depth 3' 4"

Covered Front Porch:

172 sq/ft width 15' 8" x depth 11'

Deck:

574 sq/ft width 42' x depth 13' 8"

Den:

195 sq/ft width 13' x depth 15'

Den:

width 13' x depth 15'

Dining Room:

194 sq/ft width 16' 8" x depth 11' 8"

First Level Laundry:

47 sq/ft width 6' 8" x depth 7'

Foyer:

153 sq/ft width 9' x depth 17'

Garage 1:

width 29' 8" x depth 25' 4"

Garage 2:

width 25' 4" x depth 25' 4"

Garage Storage:

88 sq/ft width 14' 8" x depth 6'

Great Room:

373 sq/ft width 20' x depth 18' 8"

Hall Closet:

9 sq/ft width 4' 8" x depth 2'

His & hers Closet:

325 sq/ft width 20' 4" x depth 16'

Kitchen:

328 sq/ft width 19' 8" x depth 16' 8"

Loft:

270 sq/ft width 17' 4" x depth 15' 8"

Master Bath 2:

238 sq/ft width 11' 4" x depth 21'

Master Bedroom:

259 sq/ft width 17' 8" x depth 14' 8"

Mud Room:

270 sq/ft width 12' 8" x depth 21' 4"

Mud Room Closet:

48 sq/ft width 6' x depth 8'

Pantry:

78 sq/ft width 9' x depth 8' 8"

Powder Room:

49 sq/ft width 8' 8" x depth 5' 8"

Second Level Laundry:

45 sq/ft width 9' x depth 5'

Sun Room:

191 sq/ft width 13' x depth 14' 8"

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$1802.85
5 printed plan sets mailed to you.
8 Copy Set:
$1888.70
8 printed plan sets mailed to you.
PDF Set:
$2361.30
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$2361.30
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$3777.40
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$284.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$284.75
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$250.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$42.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$34.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
