PLAN 47-321

Key Specs

5159
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This unusual stucco-and-siding design opens with a grand portico to a foyer that extends to the living room with a fireplace. Proceed up a few steps to the dining room with its coffered ceiling and butler's pantry, which connects to the gourmet kitchen. The attached hearth room has the requisite fireplace and three sets of French doors to the covered porch. The family room sports a coffered ceiling and a fireplace flanked by French doors. The second floor boasts four bedrooms, including a master suite with a tray ceiling, covered deck, and lavish bath. Two full baths serve the family bedrooms and a bonus room that might be used as an additional bedroom or hobby space.

Floor Plans

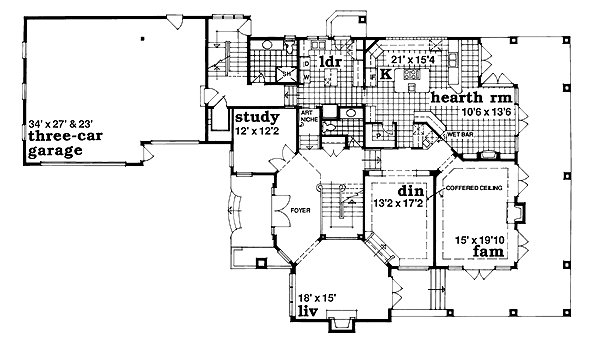

Floor Plan - Main Floor Plan

Reverse

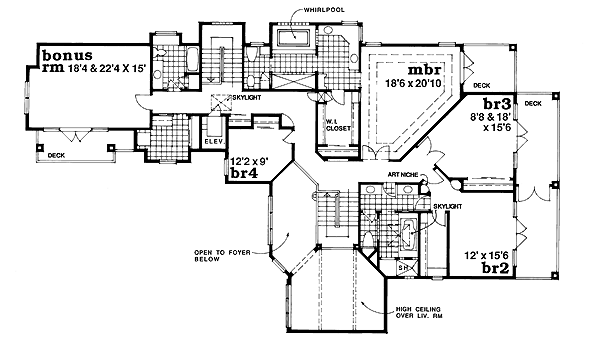

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 103' 6"
Height : 36'
Width : 57' 8"

Area

Bonus: 337 sq/ft
First Floor: 2473 sq/ft height 9'
Second Floor: 2686 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Play Flex Room
Unfinished Future Space

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch

Rooms

3rd BR Closet:

18 sq/ft width 9' 4" x depth 2'

Basement Foundation:

2037 sq/ft width 57' 8" x depth 35' 4"

Bathroom 2:

178 sq/ft width 10' 6" x depth 17'

Bathroom 3:

73 sq/ft width 9' x depth 8' 2"

Bedroom 2:

186 sq/ft width 12' x depth 15' 6"

Bedroom 2 Closet:

59 sq/ft width 5' x depth 11' 10"

Bedroom 3:

134 sq/ft width 8' 8" x depth 15' 6"

Bedroom 3 Closet:

59 sq/ft width 5' x depth 11' 10"

Bedroom 4:

119 sq/ft width 12' 2" x depth 9' 10"

Bedroom 4 Closet:

10 sq/ft width 5' 4" x depth 2'

Bedroom 5:

90 sq/ft width 9' x depth 10'

Bonus Room - Finished:

274 sq/ft width 18' 4" x depth 15'

Crawlspace Foundation:

1266 sq/ft width 43' 8" x depth 29'

Deck:

277 sq/ft width 8' x depth 34' 8"

Dining Room:

226 sq/ft width 13' 2" x depth 17' 2"

Foyer:

112 sq/ft width 8' x depth 14'

Game Room:

146 sq/ft width 12' x depth 12' 2"

Garage:

782 sq/ft width 34' x depth 23'

Gathering Room:

297 sq/ft width 15' x depth 19' 10"

Hall Bathroom:

70 sq/ft width 8' 8" x depth 8' 2"

Hall Closet:

8 sq/ft width 4' 4" x depth 2'

Kitchen:

321 sq/ft width 21' x depth 15' 4"

Laundry Room:

61 sq/ft width 7' 8" x depth 8'

Living Room:

270 sq/ft width 18' x depth 15'

Master Bathroom:

194 sq/ft width 16' x depth 12' 2"

Master Bedroom:

370 sq/ft width 18' 6" x depth 20'

Master Closet:

94 sq/ft width 7' 8" x depth 12' 4"

Parlor:

108 sq/ft width 6' x depth 18'

Porch - Front:

150 sq/ft width 8' 6" x depth 17' 8"

Porch - Left:

67 sq/ft width 9' x depth 7' 6"

Porch - Rear:

536 sq/ft width 10' x depth 53' 8"

Porch - Right:

240 sq/ft width 24' x depth 10'

Powder Room:

38 sq/ft width 7' 9" x depth 5'

Study:

141 sq/ft width 10' 6" x depth 13' 6"

Utility Room:

150 sq/ft width 12' x depth 12' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

PDF Set : $1337.60	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $1442.10	5 printed plan sets mailed to you.
8 Copy Set : $1546.60	8 printed plan sets mailed to you.
Reproducible Set : $1546.60	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set : $2675.20	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set : $1233.10	One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement: $0.00	Ideal for level lot, lower level of home partially or fully underground.
Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets : $57.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License : $608.00	Additional Use License.
Audio Video Design : $95.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $37.05	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $18.05	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $190.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $80.75	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $57.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse : $166.25	Choose this option to reverse your plans and to have the text and dimensions readable.
Unlimited Use License : $1216.00	Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
