This simple two-car design offers a practical approach to protecting cars from bad weather. The horizontal clapboard siding of the structure complements the horizontal panels of the twin garage doors. The side-gabled roof shelters 528 square feet of efficient space. Access the garage through the two wide doors, or through a standard entry door along the rear right wall. This plan is also available with a hip roof.<P/><BR/>

Floor Plans

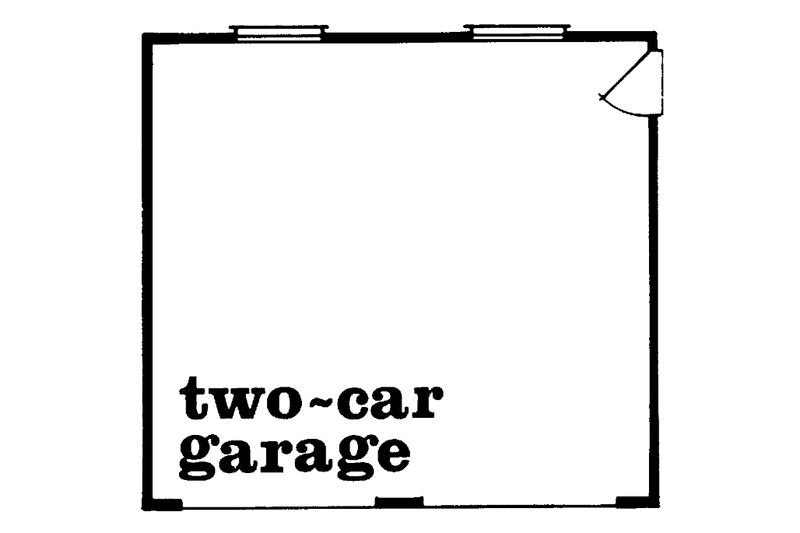

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan Plan #47-1074

Full Specs & Features

Depth : 22'
Height : 14'
Width : 24'
First Floor: 528 sq/ft height 8'


497 sq/ft width 23' 4" x depth 21' 4"

Slab Foundation:

528 sq/ft width 24' x depth 22'
