Plan Description
This contemporary design floor plan is 6330 sq ft and has 7 bedrooms and 5.5 bathrooms.
Floor Plans

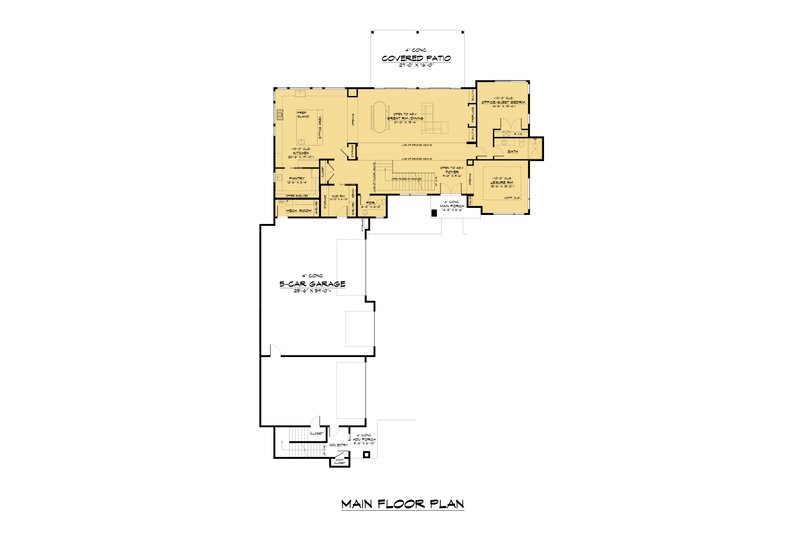

Floor Plan - Main Floor

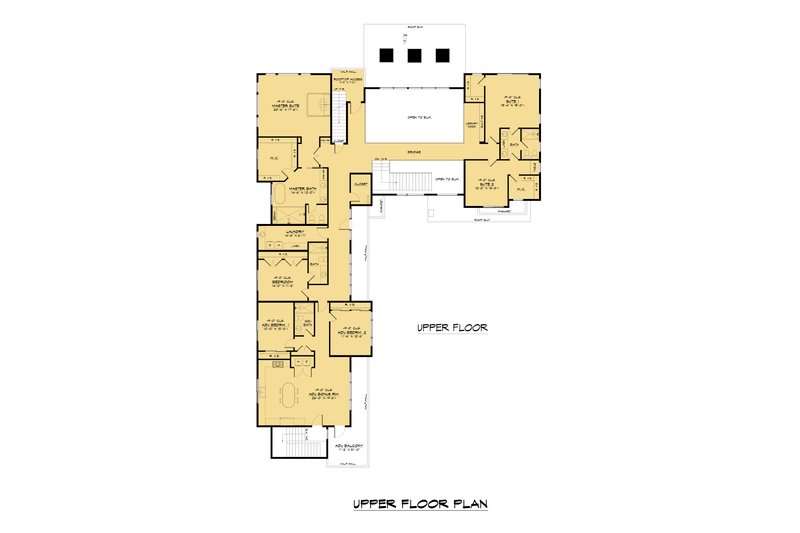

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 81'
Height : 24' 7"
Width : 112' 4"
Area
Decks : 1491 sq/ft
Garage : 1859 sq/ft
Main Floor : 2612 sq/ft
Patios : 433 sq/ft
Porch : 129 sq/ft
Upper Floor : 3718 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 10' 8"
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 1 1/2:12
Roof Framing : Truss
Secondary Pitch : 3/4:12
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
Plans are typically drawn to ¼” scale and include:
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers. 3D Rendering and Project Information.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Door / Window Schedule(s): A list of all the doors and windows needed to construct the house. This can help with estimating materials costs.
