PLAN #417-815

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

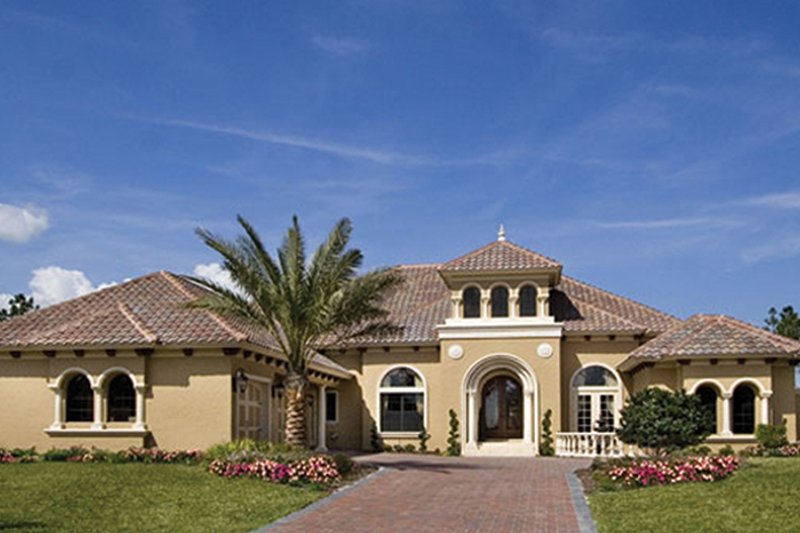

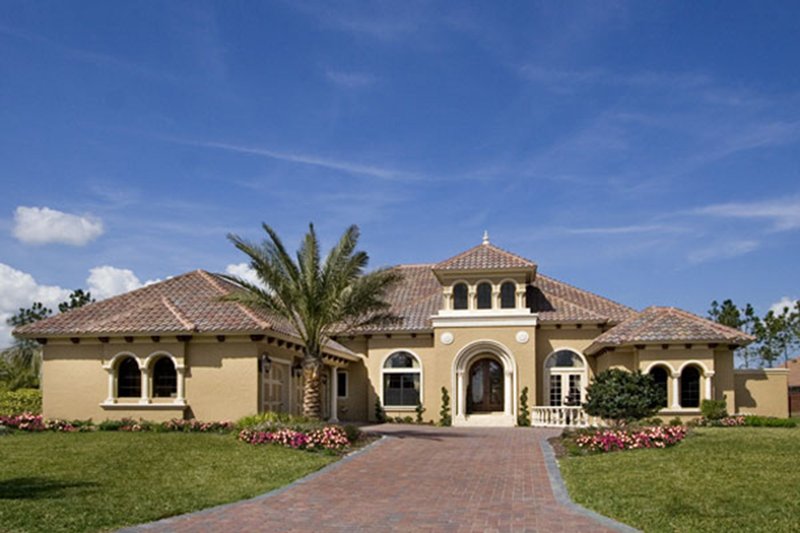

Beautiful arches and a tile roof create a stunning Mediterranean-style manor with plenty of curb appeal. Deep overhanging eaves, a classic courtyard approach, fan lights and hipped roof lines are a few of the distinguishing Italian Renaissance design elements. This five bedroom, five bath floor plan with study, billiard room and media room also has a 150 square foot accessible attic space. This finely detailed house design also features an exterior garden with an open air shower area, plus a summer kitchen and an outside living room with fireplace.

Floor Plans

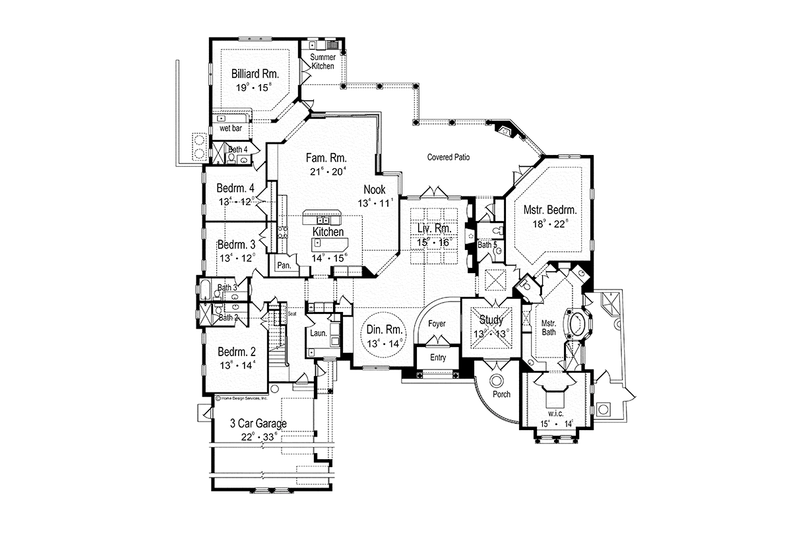

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #417-815

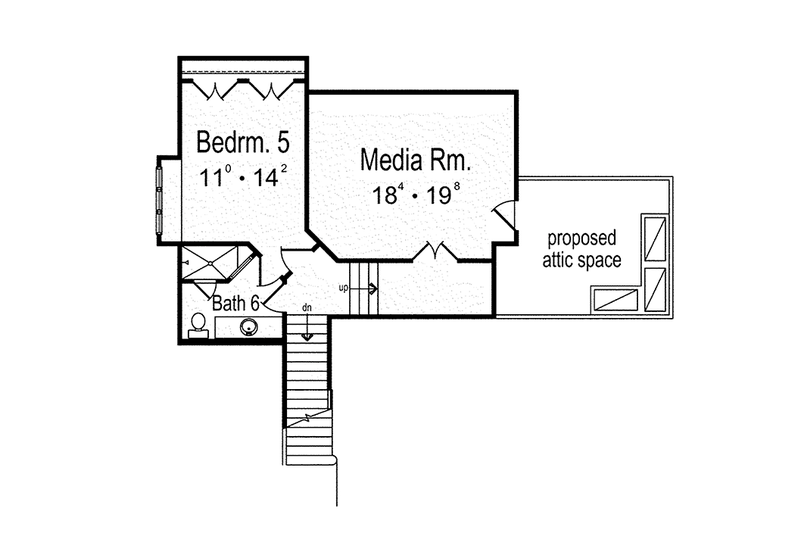

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #417-815

Full Specs & Features

Depth : 113' 4"
Height : 35'
Width : 87' 9"
First Floor: 4791 sq/ft
Garage: 863 sq/ft
Second Floor: 698 sq/ft
Storage: 150 sq/ft
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Open Floor Plan
Storage Area
Outdoor Spaces
Outdoor Fireplace
Outdoor Kitchen Grill

Bedroom 2:

196 sq/ft width 13' 8" x depth 14' 4"

Bedroom 3:

160 sq/ft width 13' 4" x depth 12'

Bedroom 4:

160 sq/ft width 13' 4" x depth 12'

Bedroom 5:

156 sq/ft width 11' x depth 14' 2"

Billiard Room:

298 sq/ft width 19' x depth 15' 8"

Breakfast Nook:

148 sq/ft width 13' 4" x depth 11' 1"

Covered Front Porch:

86 sq/ft

Covered Rear Porch:

815 sq/ft

Dining Room:

187 sq/ft width 13' 4" x depth 14'

Family Room:

437 sq/ft width 21' 6" x depth 20' 4"


863 sq/ft width 22' x depth 33'


229 sq/ft width 14' 9" x depth 15' 6"

Living Room:

240 sq/ft width 15' x depth 16'

Master Closet:

215 sq/ft width 15' 4" x depth 14'

Master Suite:

425 sq/ft width 18' 9" x depth 22' 8"

Media Room:

361 sq/ft width 18' 4" x depth 19' 8"


169 sq/ft width 13' x depth 13'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

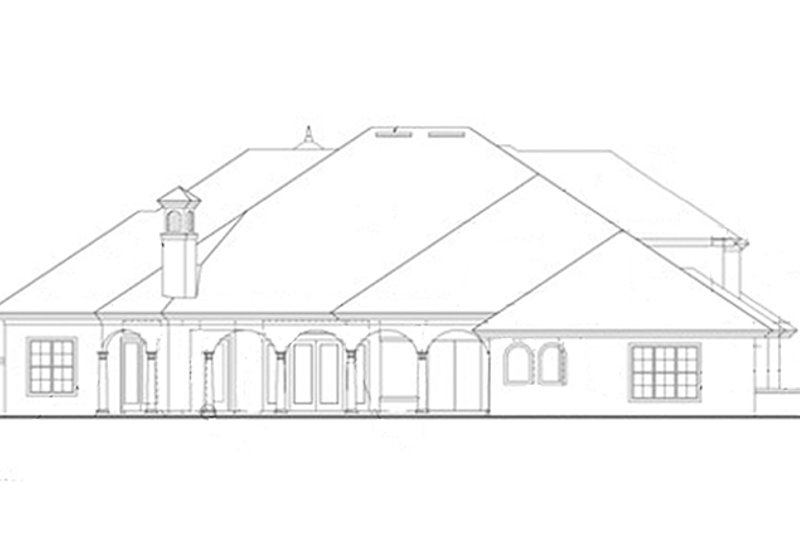

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
