PLAN 1016-98

Photographs may show modified designs.

Save
  • Jump to:
  • All (6)
  • Floor plans (2)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

563
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

0.5
Baths

Plan Floors

2
Floors

Plan Garages

0
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
$20.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $480.00
You save $120.00 (20% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.



Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 1016-98

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

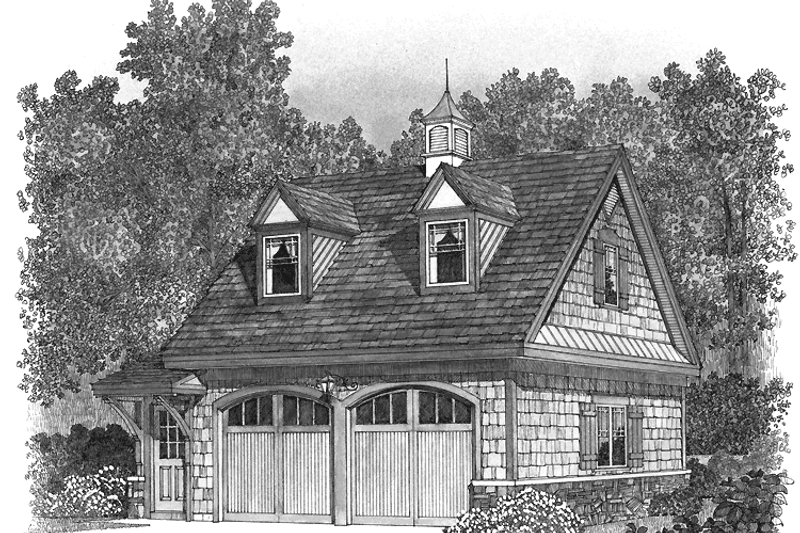

Besides the very practical two car garage with 9' x 8' doors and plenty of storage space, it has an informal traditional exterior that would compliment many architectural styles. The second floor is access with extra wide 42" stairs so transporting bulky items is easier. As a man cave, customize the second floor with a big screen TV and surround sound, poker table, pool table, wet bar, whatever! Mom could furnish it with cabinetry, computer & office equipment, hobby items, comfortable furniture, collectibles, etc. (Beware of teenagers with drums, musical instruments and enormous amplifiers!) Always check with local authorities, but in most places this structure is not an apartment and qualifies as an outbuilding.

Full Specs & Features


Dimension

Depth : 25'

Height : 23' 9"

Width : 29'

Area

First Floor: 108 sq/ft height 8'

Garage: 603 sq/ft height 8'

Second Floor: 455 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x6

Rooms

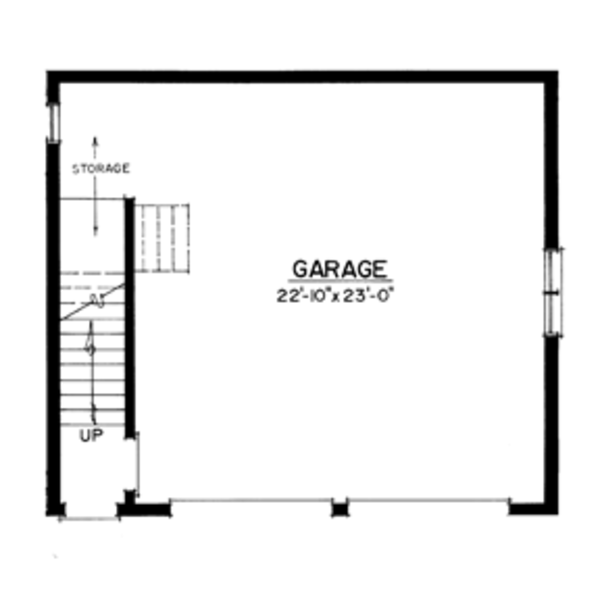

Garage:

525 sq/ft width 22' 10" x depth 23'

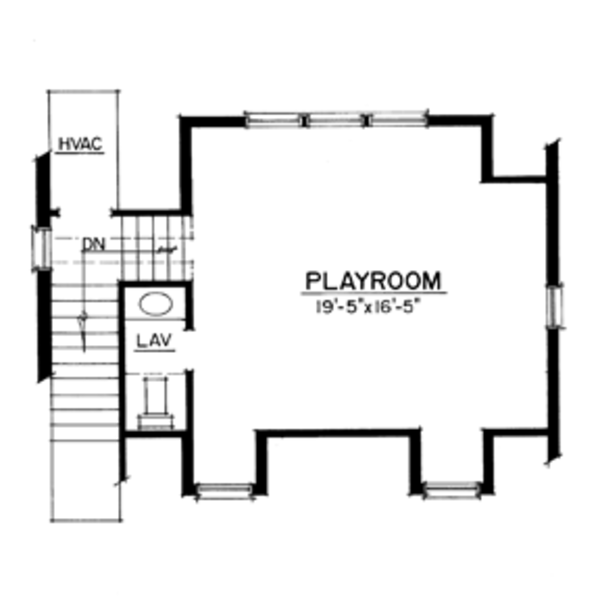

Play Room:

318 sq/ft width 19' 5" x depth 16' 5"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$480.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Audio Video Design:
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$80.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$20.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
