Key Specs
5765
sq ft
6
Beds
5.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1066-78
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 57'
Height : 29' 6"
Width : 92' 8"
Area
Decks : 334 sq/ft
Garage : 648 sq/ft
Main Floor : 3243 sq/ft
Patios : 528 sq/ft
Porch : 60 sq/ft
Upper Floor : 2522 sq/ft
Ceiling
Ceiling Details : Living room ceiling is coffered, entry foyer ceiling is open to above.
Garage Ceiling : 11' 6"
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 5/12
Roof Framing : Trusses
Roof Load : 25 PSF
Roof Type : Composition Shingles
Exterior Wall Framing
Exterior Wall Finish : Hardie Panels, Siding, and Stone Veneer
Framing : 2X6
Insulation : R21
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Upstairs Laundry
Wet Bar
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
What's Included In This Plan Set
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).

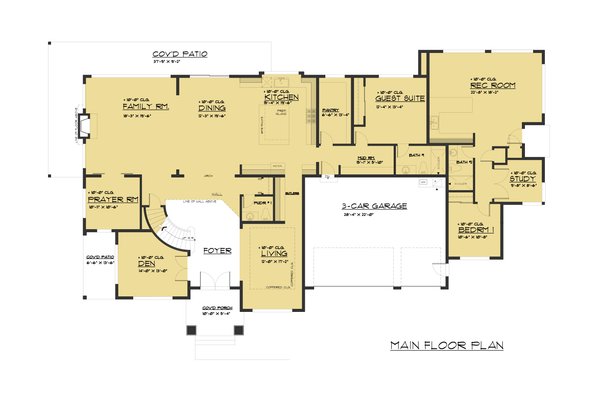

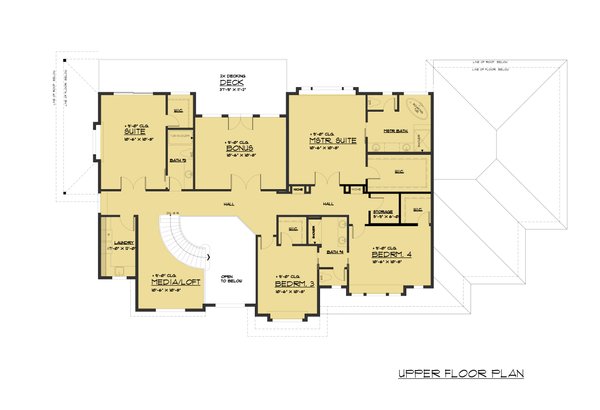

- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
Plan Set
$2882.00
$3182.00
$3332.00
$5476.00
Foundation
$0.00
$300.00
Framing
$0.00
Additional Options
$250.00
$165.00
$495.00
$39.00
$165.00
$350.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
