Key Specs


5834
sq ft

5
Beds

5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Gracious living and entertaining reach their height in this truly amazing Italianate design. Public areas include the grand two-story salon, warmed by a cozy fireplace and easily accessing the dining room, keeping room and kitchen, which with a large island offers abundant counter space. The first-floor master suite includes a bow-windowed sitting area, a lavish bath with His and Hers shower and toilet areas, and a palatial walk-in closet. Four family bedrooms upstairs each enjoy their own bathroom. Two of these also feature private sitting areas, including a turreted reading room in the princess suite.

Floor Plans

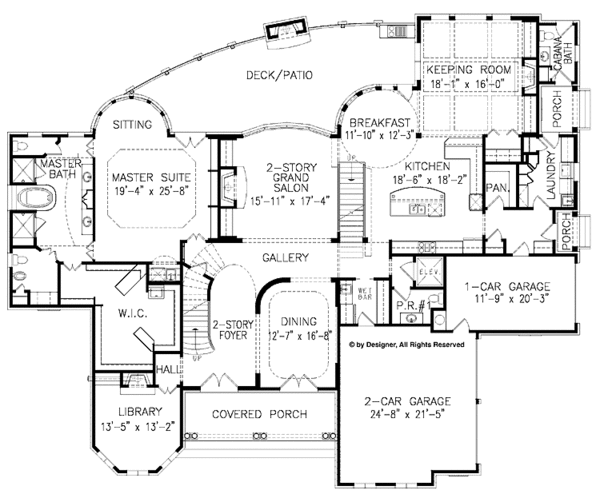

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #54-284

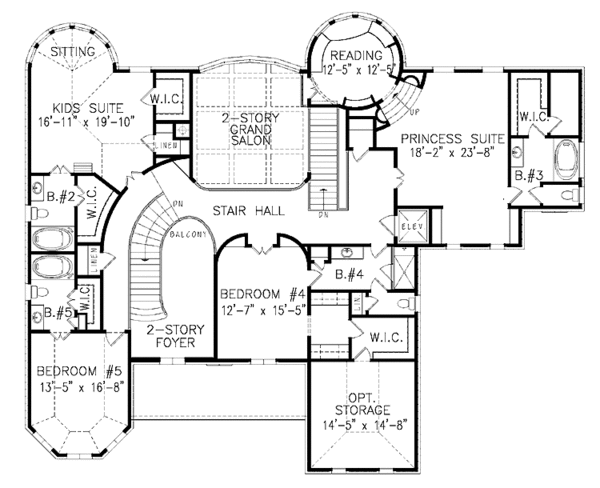

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #54-284
Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #54-284

Full Specs & Features


Dimension
Depth : 74' 6"
Height : 36' 2"
Width : 89' 11"
Area
Basement Unfinished: 2955 sq/ft
Bonus: 257 sq/ft
First Floor: 3487 sq/ft
Garage: 780 sq/ft
Second Floor: 2347 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 0:0
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Formal Dining Room
Kitchen Features
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Master Sitting Area
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

Bedroom 2:

335 sq/ft width 16' 11" x depth 19' 10"

Bedroom 3:

429 sq/ft width 18' 2" x depth 23' 8"

Bedroom 4:

193 sq/ft width 12' 7" x depth 15' 5"

Bedroom 5:

223 sq/ft width 13' 5" x depth 16' 8"

Dining Room:

209 sq/ft width 12' 7" x depth 16' 8"

Garage:

528 sq/ft width 24' 8" x depth 21' 5"

Garage Two:

237 sq/ft width 11' 9" x depth 20' 3"

Keeping Room:

289 sq/ft width 18' 1" x depth 16'

Kitchen:

336 sq/ft width 18' 6" x depth 18' 2"

Library:

176 sq/ft width 13' 5" x depth 13' 2"

Master Suite:

496 sq/ft width 19' 4" x depth 25' 8"
