PLAN 1017-13

Home > Style > Mediterranean

Key Specs

5841
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

The welcoming warmth of a Mediterranean morning is evoked by the courtyards and arcades of this magnificent home. Beyond the stone and stucco facade and the grand entry lie expansive sunlit spaces for living and entertaining. Walls of windows blur the boundaries of indoors and out. A summer kitchen and covered lanai invite you to enjoy every minute of a beautiful day. The gourmet kitchen forms the hub of the family wing, which includes a sunny dinette, family room, and three bedrooms, each with its own private bath. Two of them open onto an enchanting tiled courtyard. A secluded stair leads to a large media room with its own picturesque balcony atop the three-car garage. A private retreat for the homeowners occupies the opposite wing. The highlight of the master suite is the spa bath and walk-in shower. Elegant ceiling treatments and built-in cabinetry heighten the magnificence of this home. Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed.

Floor Plans

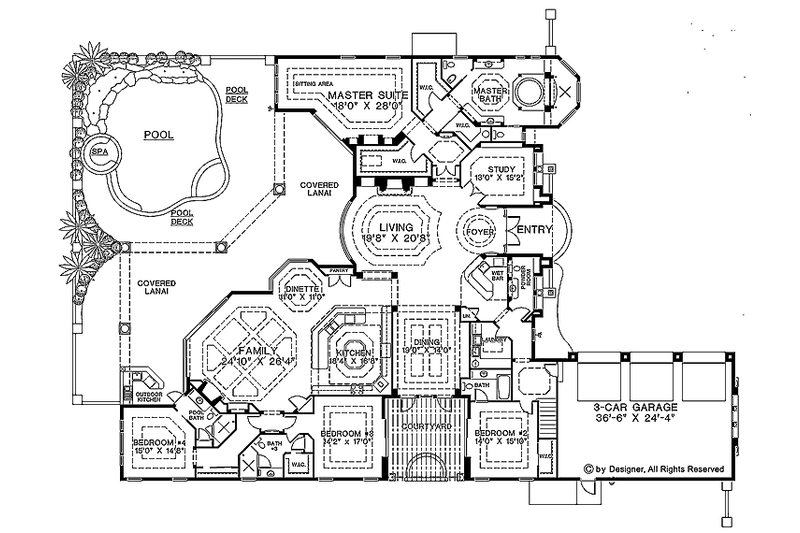

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

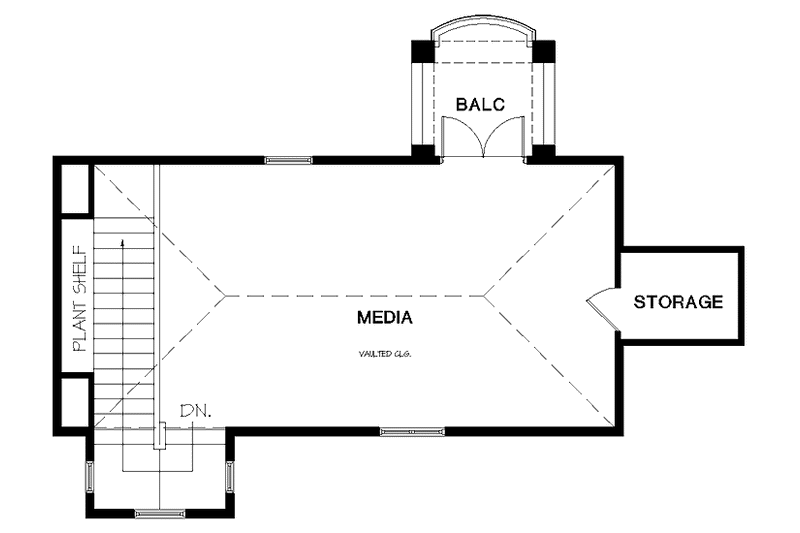

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 139' 10"

Height : 33'

Width : 89' 4"

Area

First Floor: 5290 sq/ft

Second Floor: 551 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Fireplace

Formal Dining Room

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Media Room

Open Floor Plan

Outdoor Spaces

Balcony

Courtyard

Deck

Outdoor Fireplace

Outdoor Kitchen Grill

Rooms

3rd BR Closet:

31 sq/ft width 6' 4" x depth 5'

Bedroom 2:

221 sq/ft width 14' x depth 15' 10"

Bedroom 2 Closet:

2 sq/ft width 4' x depth 8"

Bedroom 3:

240 sq/ft width 14' 2" x depth 17'

Bedroom 3 Closet:

2 sq/ft width 4' x depth 8"

Bedroom 4:

220 sq/ft width 15' x depth 14' 8"

Bedroom 4 Closet:

16 sq/ft width 2' x depth 8'

Breakfast Room:

154 sq/ft width 11' x depth 14'

Den/Office or Bedroom 1:

197 sq/ft width 13' x depth 15' 2"

Dining Room:

266 sq/ft width 19' x depth 14'

Foyer:

106 sq/ft width 9' 8" x depth 11'

Game Room:

448 sq/ft width 28' x depth 16'

Garage:

888 sq/ft width 36' 6" x depth 24' 4"

Gathering Room:

653 sq/ft width 24' 10" x depth 26' 4"

Kitchen:

305 sq/ft width 18' 4" x depth 16' 8"

Laundry Room:

86 sq/ft width 8' 10" x depth 9' 10"

Living Room:

406 sq/ft width 19' 8" x depth 20' 8"

Master Bedroom:

504 sq/ft width 18' x depth 28'

Master Closet:

70 sq/ft width 6' 2" x depth 11' 5"

Walk-In Closet:

19 sq/ft width 3' 11" x depth 5'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$1955.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1955.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1955.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
