PLAN 1019-8

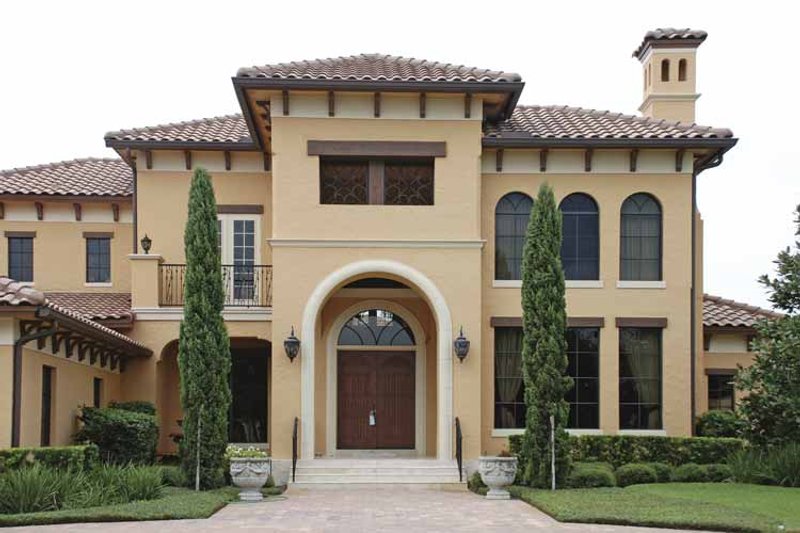

Mediterranean Exterior - Front Elevation Plan #1019-8

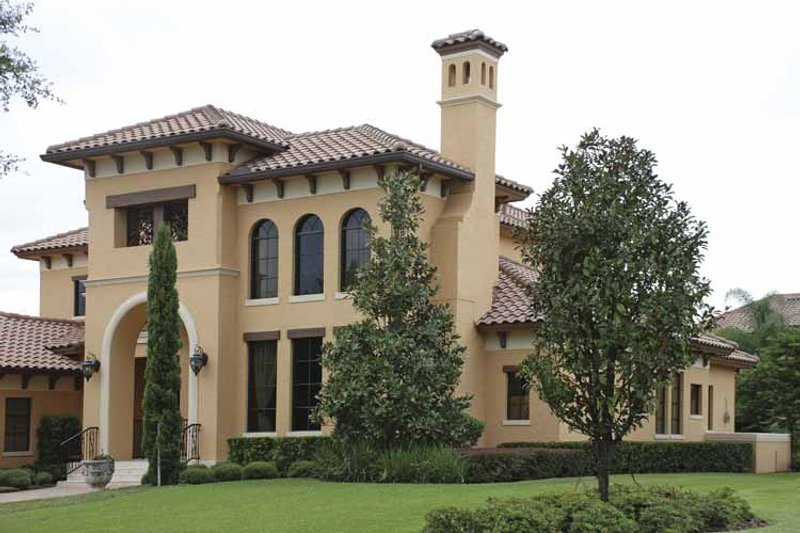

Mediterranean Exterior - Front Elevation Plan #1019-8

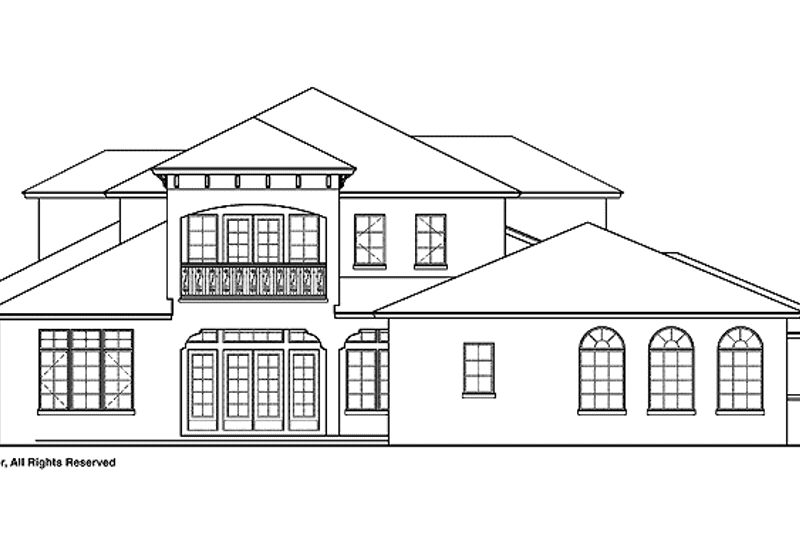

Mediterranean Exterior - Rear Elevation Plan #1019-8

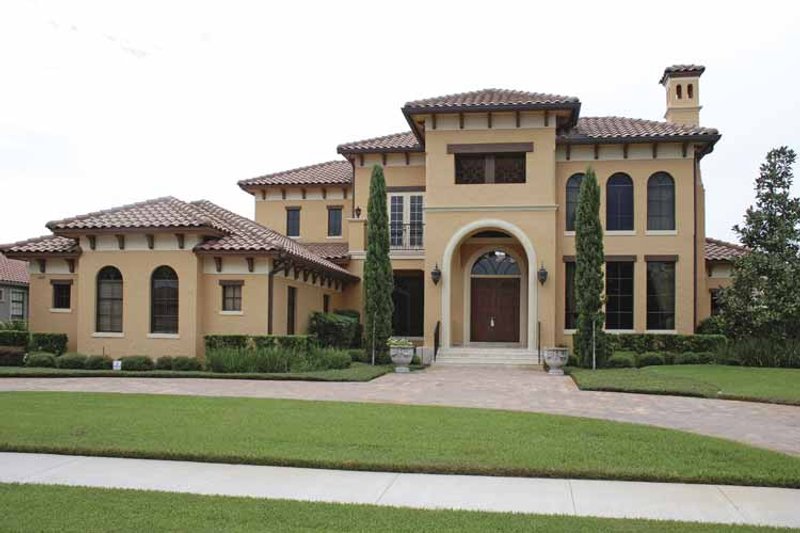

Mediterranean Exterior - Front Elevation Plan #1019-8
Mediterranean Exterior - Front Elevation Plan #1019-8
Mediterranean Exterior - Front Elevation Plan #1019-8
Mediterranean Exterior - Front Elevation Plan #1019-8

Select Plan Set Options

What's included?
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $2250.00
You save $250.00
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1019-8

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Do you get embarassed when you say something inappropriate? This house makes no apologies for exposing itself. From the moment the front doors open, you're greeted with long views, high ceilings and plenty of natural light. A circular 2-story foyer stair draws you upwards while the 4-panel living room french doors invite you to the rear pool area. Whether you step into the private 2-story library and enjoy the front facing window wall, or prepare a meal in the naturally lit oversized kitchen, every room has a view. Opening this plan up for even more circulation can be achieved by removing the wall between the living room and breakfast room. The second floor childrens' domain, with 10' ceilings, offers a gracious game room with a rear covered balcony that overlooks the pool. What more can be said? This plan speaks for itself.

Full Specs & Features

Depth : 110'
Height : 35'
Width : 88' 10"
First Floor: 4534 sq/ft height 12'
Garage: 914 sq/ft height 9' 4"
Second Floor: 1387 sq/ft height 10' 4"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch


160 sq/ft width 15' x depth 10' 8"

Bedroom 3:

211 sq/ft width 16' 8" x depth 12' 8"

Bedroom 4:

177 sq/ft width 14' x depth 12' 8"

Bedroom 5:

191 sq/ft width 13' 8" x depth 14'


147 sq/ft width 12' x depth 12' 4"

Covered Porch:

315 sq/ft width 13' 4" x depth 23' 8"

Covered Porch:

291 sq/ft width 27' 4" x depth 10' 8"

Dining Room:

208 sq/ft width 13' x depth 16'

Family Room:

469 sq/ft width 21' 4" x depth 22'

Game Room:

379 sq/ft width 21' 6" x depth 17' 8"

Game Room:

300 sq/ft width 15' x depth 20'


847 sq/ft width 23' 4" x depth 36' 4"

Guest Suite:

220 sq/ft width 14' 8" x depth 15'


272 sq/ft width 16' 10" x depth 16' 2"

Laundry Room:

61 sq/ft width 7' 10" x depth 7' 10"


200 sq/ft width 13' 8" x depth 14' 8"

Living Room:

244 sq/ft width 16' 4" x depth 15'

Master Suite:

341 sq/ft width 16' x depth 21' 4"

Master Walk-In Closet:

202 sq/ft width 16' x depth 12' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

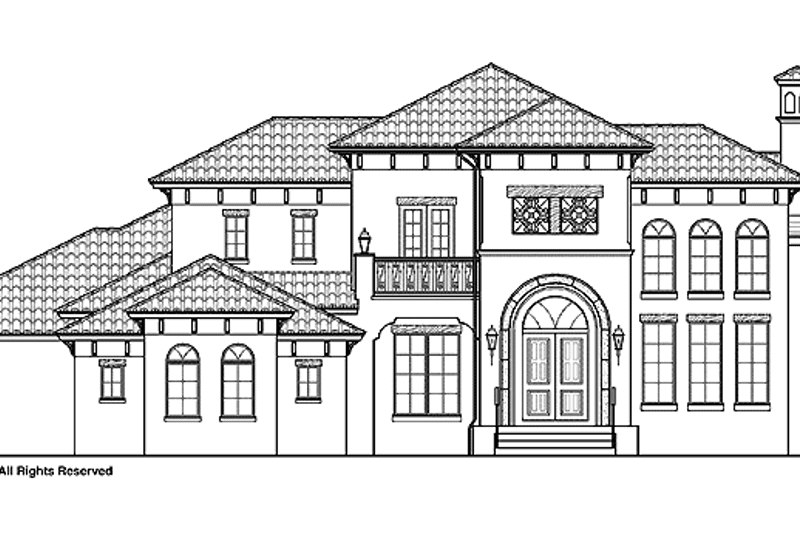

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

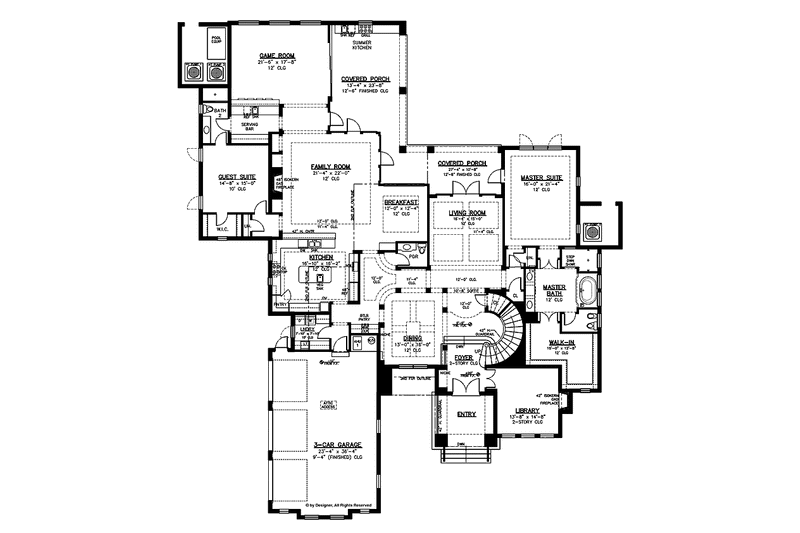

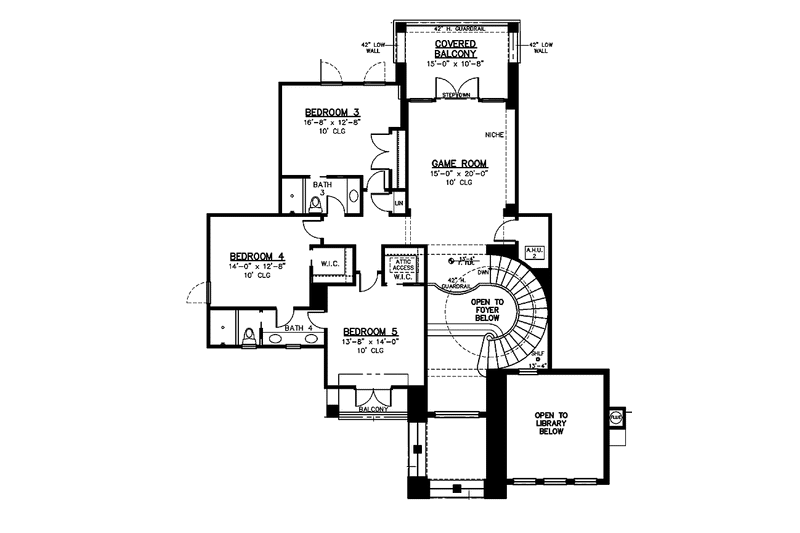

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Stem Wall Foundation:
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.



Additional Options

Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Browse Similar Plans

Recently Viewed House Plans
