PLAN 1066-56

Photographs may show modified designs.

Dream House Plan - Contemporary Exterior - Front Elevation Plan #1066-56

Dream House Plan - Contemporary Exterior - Rear Elevation Plan #1066-56

Dream House Plan - Contemporary Exterior - Other Elevation Plan #1066-56

Dream House Plan - Contemporary Floor Plan - Main Floor Plan #1066-56

Dream House Plan - Contemporary Floor Plan - Upper Floor Plan #1066-56

Dream House Plan - Contemporary Floor Plan - Lower Floor Plan #1066-56

Jump to:
All (9)
Exterior (6)
Floor plans (3)

Get Personalized Help

Home > Style > Contemporary

Key Specs

6302
sq ft

5
Beds

5.5
Baths

3
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$495.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$350.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$3150.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1066-56

Home > Style > Contemporary

Key Specs

6302
sq ft

5
Beds

5.5
Baths

3
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This contemporary design floor plan is 6302 sq ft and has 5 bedrooms and 5.5 bathrooms.

Floor Plans

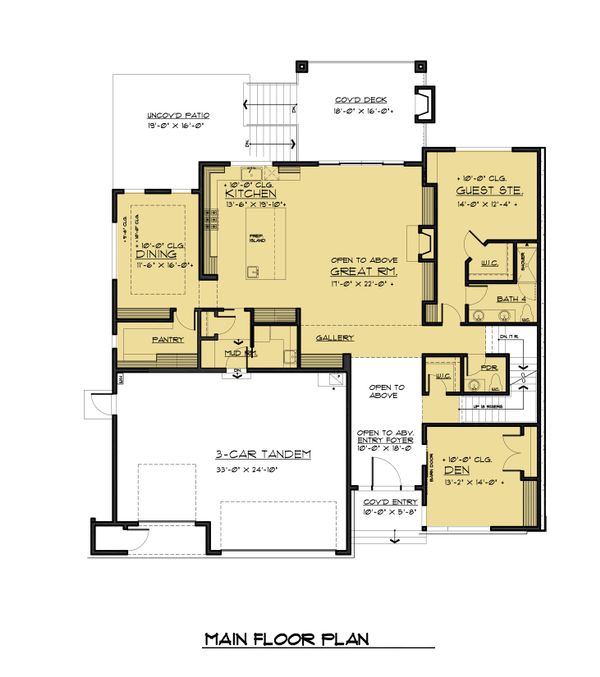

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

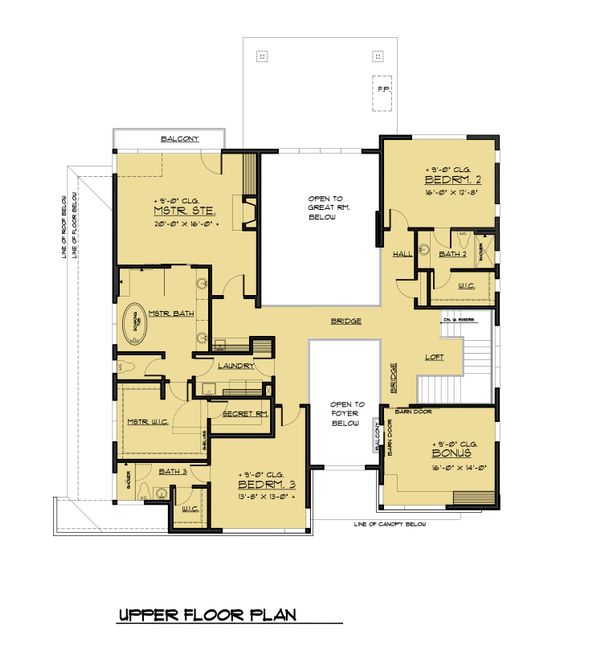

Floor Plan - Upper Floor

Reverse

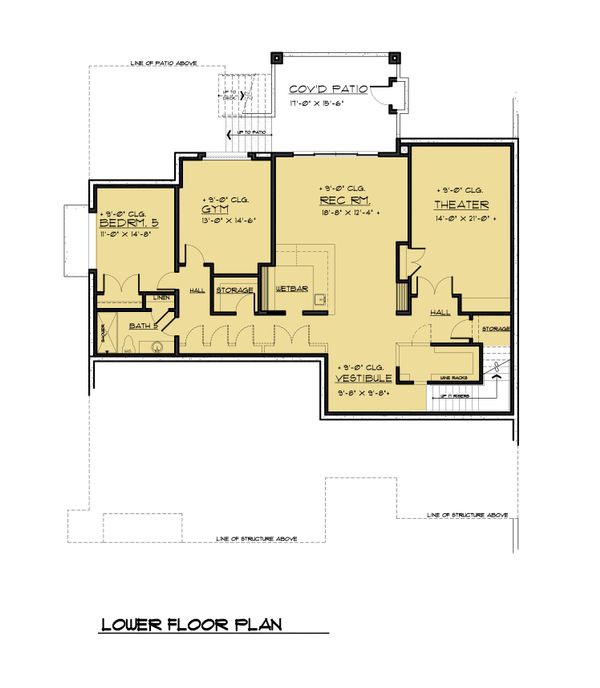

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 68' 6"

Height : 30'

Width : 63'

Area

Decks : 251 sq/ft

Garage : 743 sq/ft

Lower Floor : 1864 sq/ft

Main Floor : 2248 sq/ft

Patios : 516 sq/ft

Porch : 57 sq/ft

Upper Floor : 2190 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry foyer ceiling is open to above.

Garage Ceiling : 11' 6"

Lower Ceiling : 9'

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4/12

Roof Framing : Trusses

Roof Load : 25 PSF

Roof Type : Hip / Some Flat

Exterior Wall Framing

Exterior Wall Finish : Siding and Stone

Framing : 2X6

Insulation : R21

Bedroom Features

Lower Level Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Main Floor Laundry

Mud Room

Play Flex Room

Wet Bar

Wine Cellar

Garage Features

Front Entry Garage

Split Garage

Tandem Garage

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

Bedroom 2:

width 16' x depth 12' 8"

Bedroom 3:

width 13' 8" x depth 13'

Bedroom 5:

width 11' x depth 14' 8"

Bonus:

width 16' x depth 14'

Den:

width 13' 2" x depth 14'

Dining:

width 11' 6" x depth 16'

Entry porch:

width 10' x depth 5' 8"

Foyer:

width 10' x depth 18'

Garage 3 car:

width 33' x depth 24' 10"

Great Room:

width 17' x depth 22'

Guest Suite:

width 14' x depth 12' 4"

Gym:

width 13' x depth 14' 6"

Kitchen:

width 13' 6" x depth 19' 10"

Master Suite:

width 20' x depth 16'

Rear Covered Deck:

width 18' x depth 16'

Rear Uncovered patio:

width 19' x depth 16'

Rec Room:

width 18' 8" x depth 12' 4"

Theater:

width 14' x depth 21'

Vestibule:

width 9' 8" x depth 9' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Cover Sheet: 3D Rendering and Project Information.
General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
Floor Plans (lower, main, upper, etc.) showing all doors and windows.
Elevations from all four sides showing material callouts.
Wall framing and sectional detail sheets.
Building Cross Sections showing stair and ceiling height details.
Window and Door schedule.
Overhead roof plan showing peaks, valleys, and pitch.
Foundation Plan showing perimeter and footing details.
Misc. notes and details.
*Please note that any structural engineering sheets included with this plan set are for reference only.

Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$3150.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$3450.00

5 printed plan sets mailed to you.

8 Copy Set:
$3600.00

8 printed plan sets mailed to you.

CAD Set:
$5985.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$300.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$300.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$495.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$350.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
