Key Specs
6407
sq ft
5
Beds
5.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1066-284
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

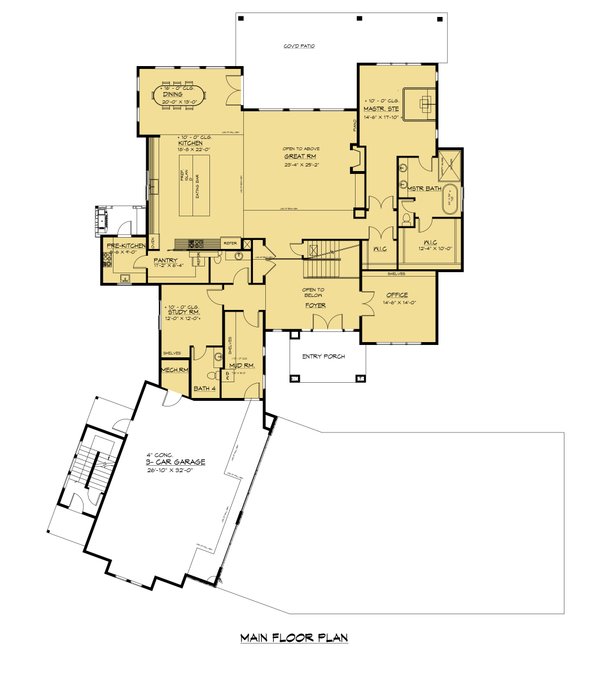

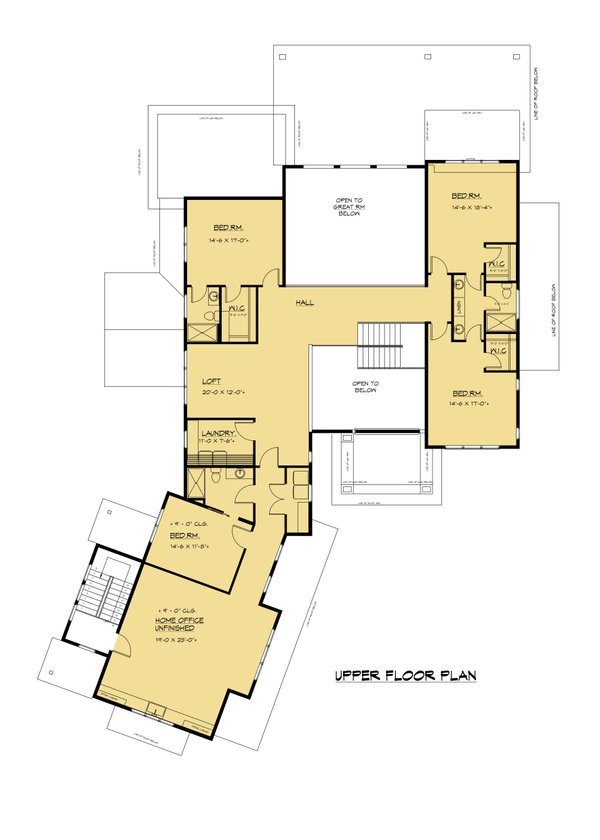

Floor Plans
Full Specs & Features
Dimension
Depth : 116'
Height : 28' 3"
Width : 82'
Area
Garage : 1002 sq/ft
Main Floor : 3497 sq/ft
Patios : 612 sq/ft
Porch : 134 sq/ft
Upper Floor : 2910 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 9/12
Roof Framing : Truss
Secondary Pitch : 4/12
Exterior Wall Framing
Framing : 2x6
Insulation : R-21
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Mud Room
Play Flex Room
Upstairs Laundry
Wet Bar
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Courtyard
Covered Front Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Jack & Jill Bath
What's Included In This Plan Set
- Cover Sheet: 3D Rendering and Project Information.
- General Foundation notes (Builder and engineer to provide foundation specs based on lot and local code).
- Floor Plans (lower, main, upper, etc.) showing all doors and windows.
- Elevations from all four sides showing material callouts.
- Wall framing and sectional detail sheets.
- Building Cross Sections showing stair and ceiling height details.
- Window and Door schedule.
- Overhead roof plan showing peaks, valleys, and pitch.
- Foundation Plan showing perimeter and footing details.
- Misc. notes and details.
- *Please note that any structural engineering sheets included with this plan set are for reference only.
Plan Set
$3204.00
$3504.00
$3654.00
$6087.00
Foundation
$0.00
$300.00
Framing
$0.00
Additional Options
$250.00
$165.00
$495.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
