PLAN 1058-19

Photographs may show modified designs.

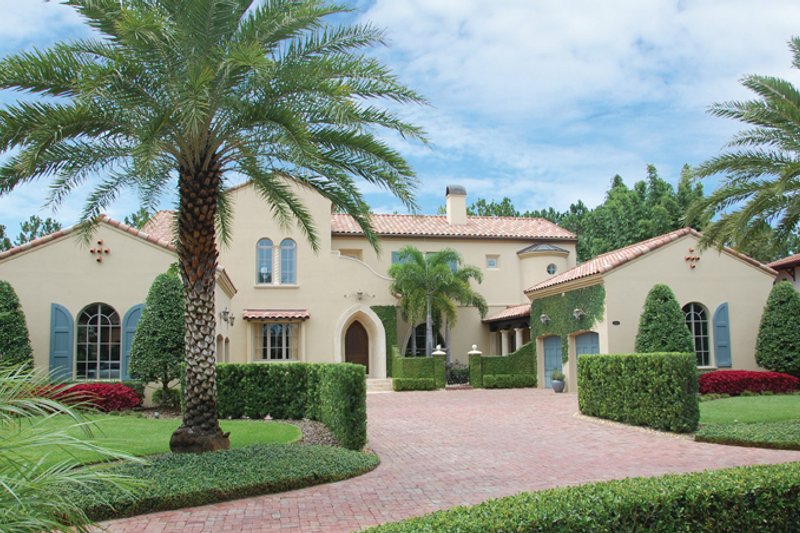

Dream House Plan - Mediterranean Exterior - Front Elevation Plan #1058-19

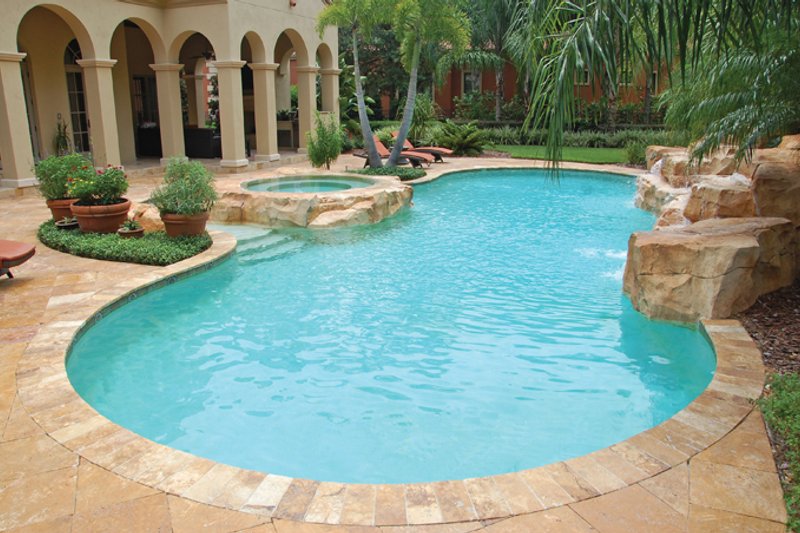

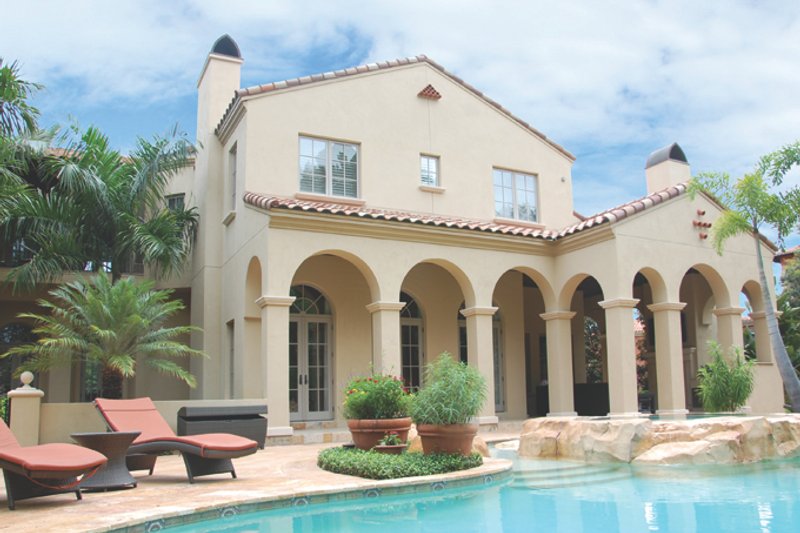

Dream House Plan - Mediterranean Exterior - Rear Elevation Plan #1058-19

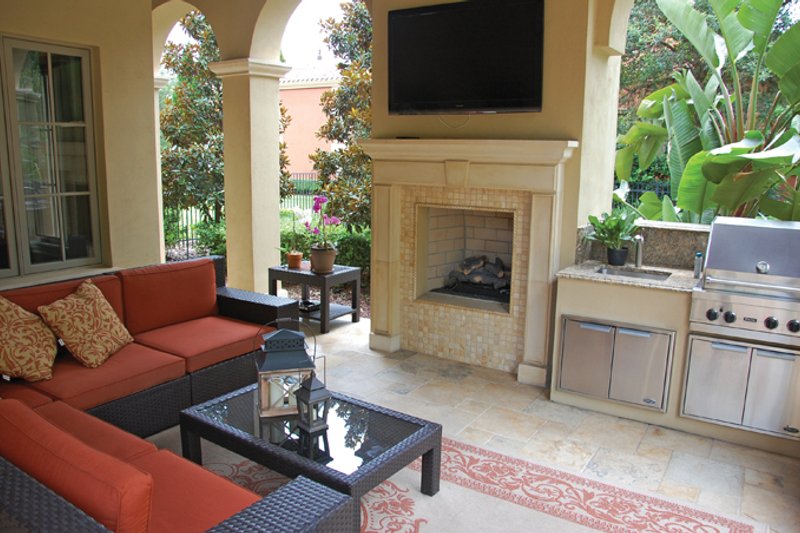

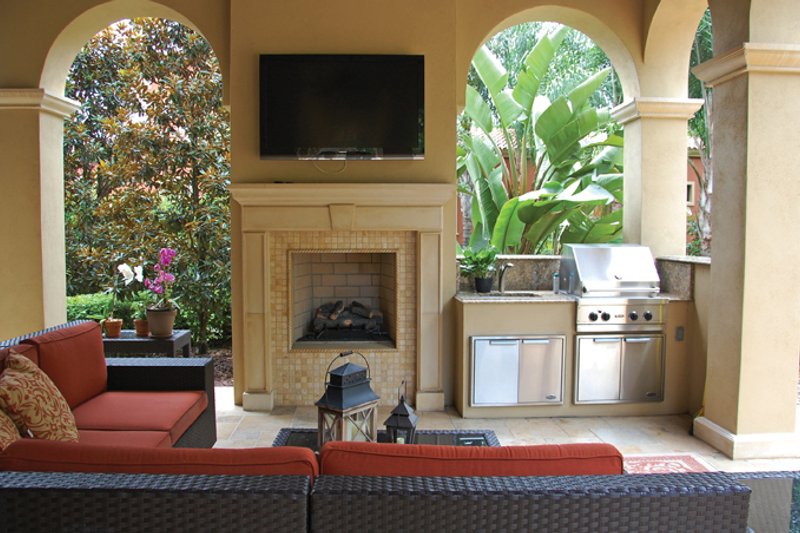

Dream House Plan - Mediterranean Exterior - Other Elevation Plan #1058-19

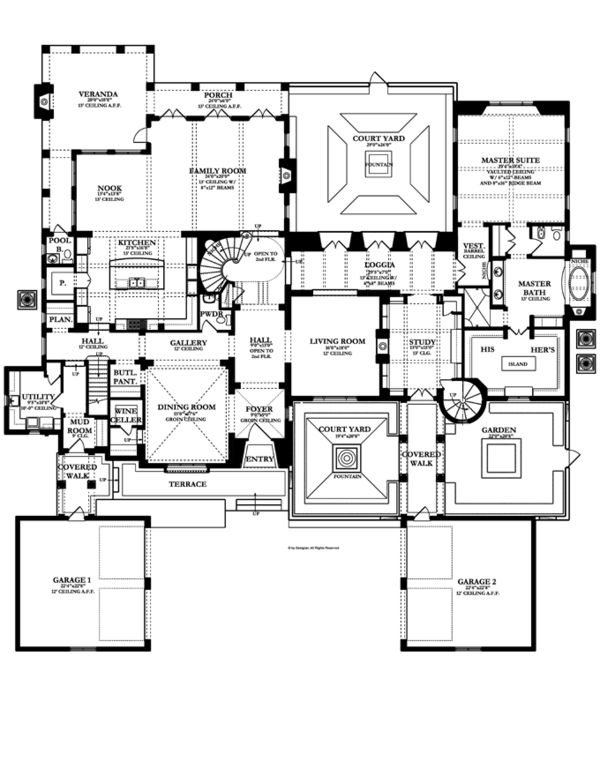

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #1058-19

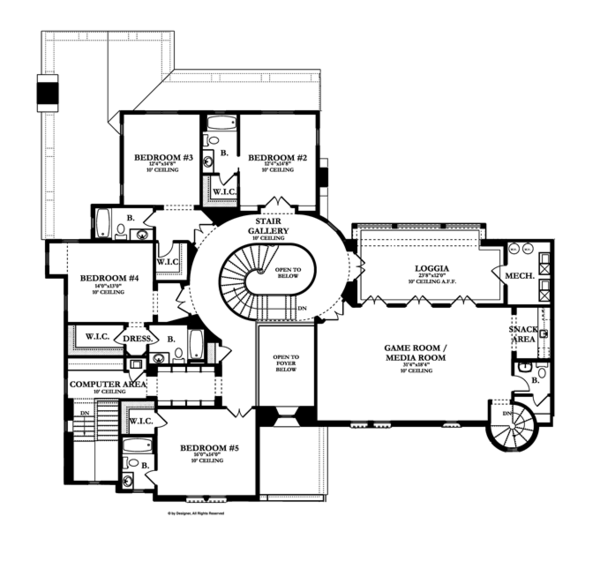

Dream House Plan - Mediterranean Floor Plan - Upper Floor Plan #1058-19

Jump to:
All (9)
Exterior (7)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

7363
sq ft

5
Beds

5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$300.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$3350.00
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$200.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$6550.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1058-19

Home > Style > Mediterranean

Key Specs

7363
sq ft

5
Beds

5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Active families will appreciate the abundant amenities in this luxurious-yet-practical home. Among the many indoor-outdoor features are courtyards, porches, a secluded garden, and even a second-floor loggia. The kitchen’s generous island creates a contemporary hangout in the casual zones of the first floor. Every bedroom offers a walk-in closet. Other standout details include the generous utility room, a wine cellar connected to the dining room, and the master suite’s thoroughly upscale bathroom. Kids and visitors will love the huge game room and wet bar upstairs.

Floor Plans

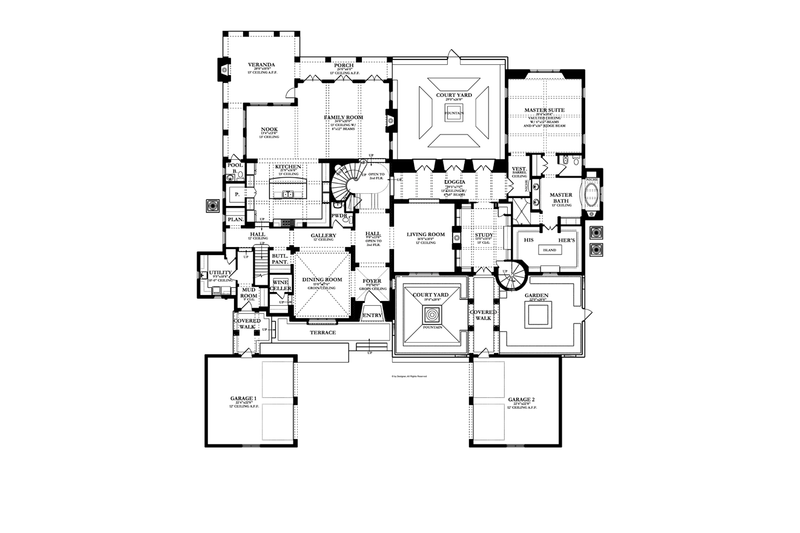

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

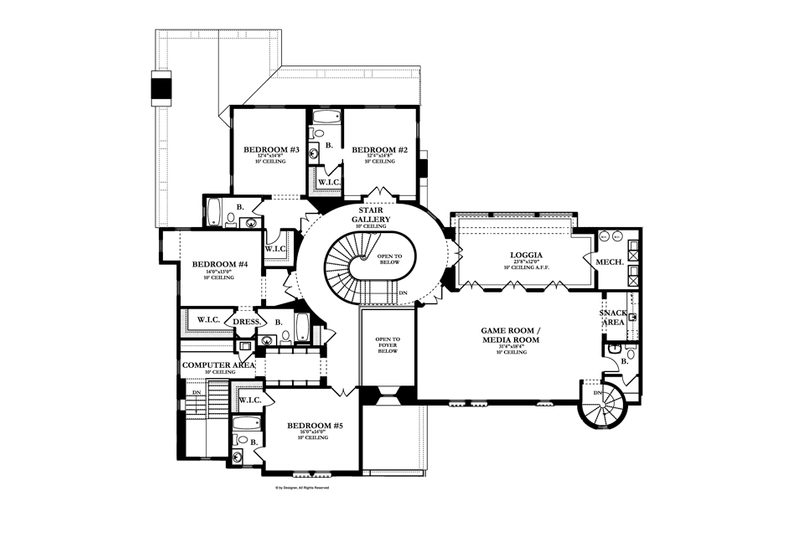

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 108'

Height : 32'

Width : 105' 4"

Area

First Floor: 4575 sq/ft

Garage: 1152 sq/ft

Second Floor: 2788 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Media Room

Mud Room

Upstairs Laundry

Vaulted / Cathedral Ceilings

Wine Cellar

Workshop

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Rear Porch

Deck

Grill Deck Sundeck

Outdoor Fireplace

Rooms

Balcony:

298 sq/ft

Bedroom 2:

width 12' 4" x depth 14' 8"

Bedroom 3:

width 12' 4" x depth 14' 8"

Bedroom 4:

width 14' x depth 13'

Bedroom 5:

width 16' x depth 14'

Courtyard:

width 19' 4" x depth 20' 8"

Courtyard:

width 29' x depth 26'

Dining:

width 15' x depth 17' 6"

Foyer:

width 9' x depth 9'

Game Room:

width 31' 4" x depth 18' 4"

Garden:

width 22' x depth 20' 8"

Hall:

width 9' x depth 13'

Kitchen:

width 21' 8" x depth 16' 8"

Living Room:

width 16' x depth 18'

Loggia:

width 29' 5" x depth 7'

Loggia:

width 23' 8" x depth 12'

Master Bedroom:

width 19' 4" x depth 19' 4"

Porch Rear:

596 sq/ft width 24' x depth 6'

Porch Rear:

596 sq/ft

Study:

width 13' x depth 15'

Utility:

width 9' 5" x depth 10' 8"

Verandah:

width 20' x depth 18' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$6300.00

5 printed plan sets mailed to you.

CAD Set:
$6700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$6700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$250.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$3350.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
