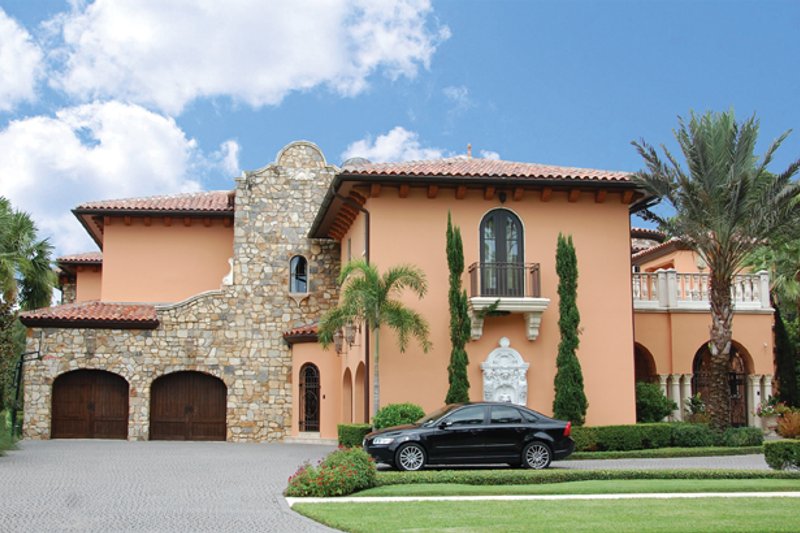

Dream House Plan - Mediterranean Exterior - Front Elevation Plan #1058-16

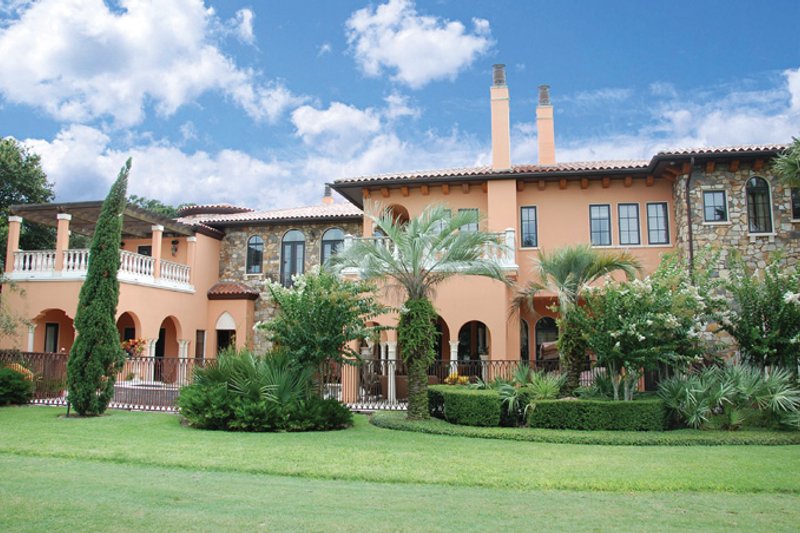

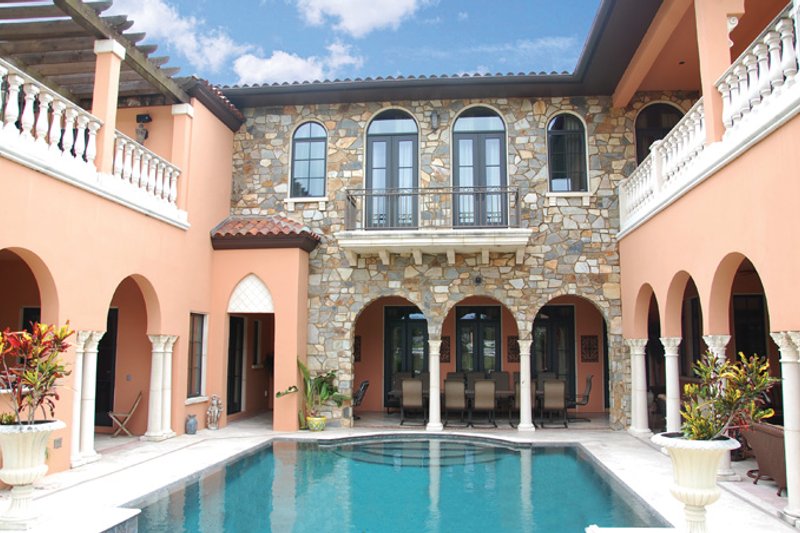

Dream House Plan - Mediterranean Exterior - Rear Elevation Plan #1058-16

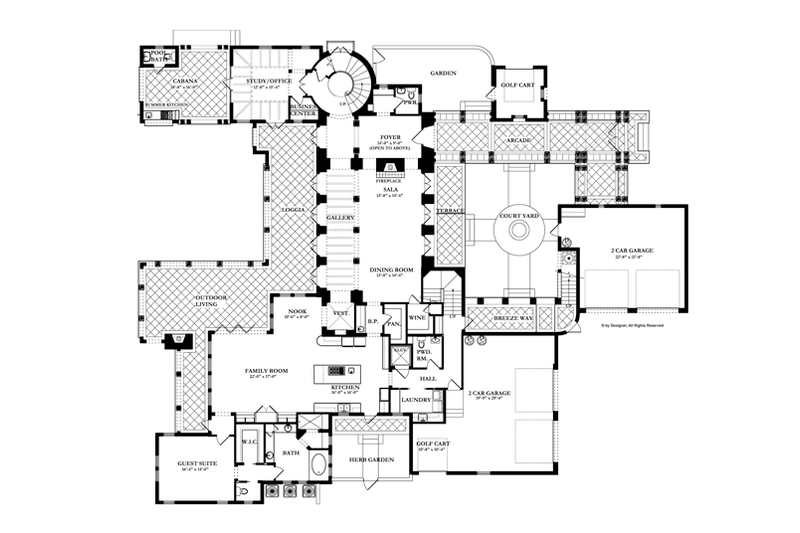

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #1058-16

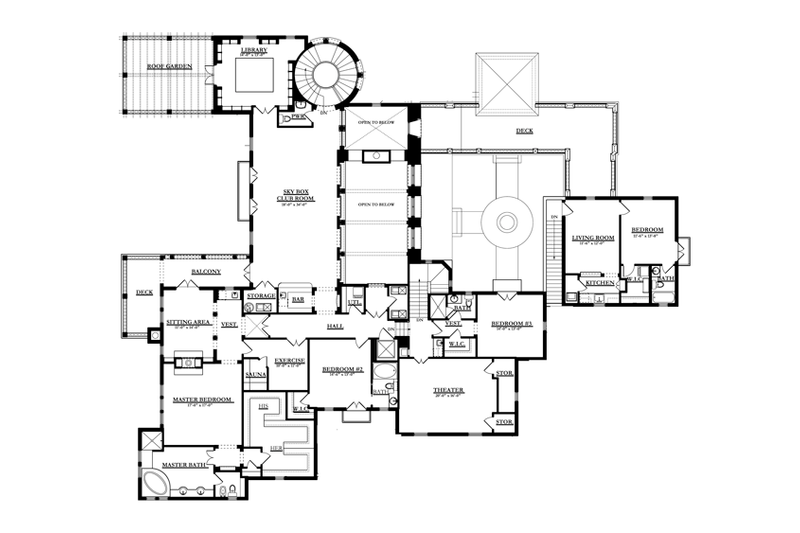

Dream House Plan - Mediterranean Floor Plan - Upper Floor Plan #1058-16

Jump to:
All (7)
Exterior (5)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

7411
sq ft

5
Beds

5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$300.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$80.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$3350.00
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$200.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$6550.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1058-16

Home > Style > Mediterranean

Key Specs

7411
sq ft

5
Beds

5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

From the private courtyard in front to the network of decks and loggias in back, this splendid luxury home prioritizes indoor-outdoor connections. Highlights include an easy-to-access guest suite on the main level (ideal for hosting an elderly relative or an au pair), the cabana with its summer kitchen, and the party-ready club room upstairs. A guest apartment above the garage offers a private space for a young adult or a short-term tenant. Don't miss the master suite's fireplace-warmed sitting room, huge closet, and nearby exercise room.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 118'

Height : 38'

Width : 98' 8"

Area

First Floor: 3458 sq/ft height 11'

Garage: 1405 sq/ft

Second Floor: 3953 sq/ft height 11'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : ICF (Insulated Concrete Forms) Block ACC Block

Bedroom Features

Cabana

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Media Room

Storage Area

Upstairs Laundry

Wine Cellar

Garage Features

Front Entry Garage

Golf Cart Storage

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Deck

Grill Deck Sundeck

Outdoor Fireplace

Outdoor Kitchen Grill

Wrap Around Porch

Wheelchair Adaptable

Rooms

Balcony:

120 sq/ft

Bedroom 2:

width 14' 6" x depth 13'

Bedroom 3:

width 14' x depth 13'

Bedroom 4:

width 11' 6" x depth 13' 8"

Breakfast:

width 10' 6" x depth 8'

Cabana:

319 sq/ft width 18' 8" x depth 16'

Club Room:

width 18' x depth 34'

Dining Room:

width 13' 8" x depth 14' 4"

Exercise Room:

width 10' x depth 11'

Family Room:

width 22' x depth 17'

Foyer:

width 14' x depth 9'

Garage:

width 22' 8" x depth 21' 8"

Garage 2:

width 19' 9" x depth 29' 4"

Guest Suite:

width 16' 4" x depth 14'

Kitchen:

width 16' x depth 16'

Laundry:

width 11' 6" x depth 12'

Library:

width 14' x depth 13'

Master Bedroom:

width 17' x depth 17'

Porch Front:

569 sq/ft

Porch Rear:

1001 sq/ft

Sala:

width 13' 8" x depth 14' 4"

Sitting Area:

width 11' x depth 14'

Study:

width 12' x depth 15' 4"

Theater:

width 20' x depth 16'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

5 Copy Set:
$6300.00

5 printed plan sets mailed to you.

CAD Set:
$6700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$6700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$250.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Insulated Concrete Forms:
$0.00

ICF Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Right-Reading Reverse:
$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$3350.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
