PLAN 484-12
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

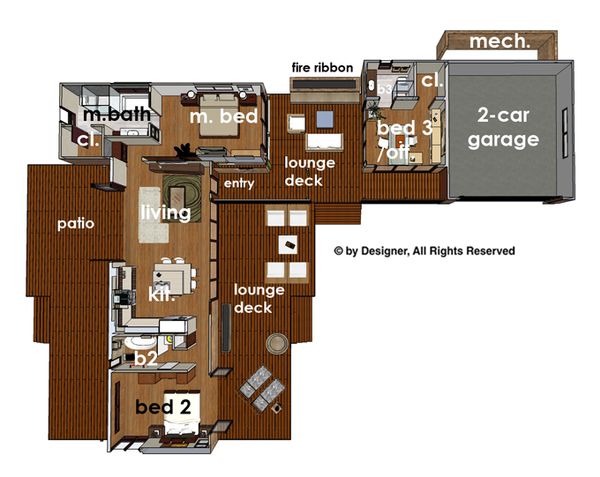

Floor Plans
Full Specs & Features
Dimension
Depth : 81'
Height : 16' 9"
Width : 60' 4"
Area
Garage: 484 sq/ft
Main Floor: 1350 sq/ft
Roof
Roof Framing : Truss
Roof Type : Build-Up
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Courtyard
Covered Front Porch
Deck
Rooms
Bedroom 2:
width 14' 6" x depth 11' 6"
Bedroom 3:
width 12' 6" x depth 10' 6"
Garage:
484 sq/ft width 21' 6" x depth 21' 6"
Kitchen:
width 14' 6" x depth 11'
Living Room:
width 14' 6" x depth 14'
Master Bath:
width 13' 6" x depth 9' 6"
Master Bedroom:
width 15' x depth 12' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1836.00
$1996.00
$2076.00
$7996.00
$476.00
$2076.00
Foundation
$0.00
Framing
$0.00
Additional Options
$80.00
$31.20
$80.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
