PLAN 484-9
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 93'
Height : 19'
Width : 102'
Area
Bonus : 60 sq/ft
Garage : 572 sq/ft
Lower Floor : 3595 sq/ft
Main Floor : 3595 sq/ft
Patios : 582 sq/ft
Porch : 200 sq/ft
Ceiling
Ceiling Details : Family Room: Cathedral open beam ceiling. Bedrooms: Mono-vault, flat.
Garage Ceiling : 10'
Lower Ceiling : 10'
Main Ceiling : 15'
Upper Ceiling Ft : 16'
Roof
Primary Pitch : 4/12
Roof Framing : Wood Truss
Roof Load : 34.0 psf
Roof Type : Prefab
Secondary Pitch : 2/12
Exterior Wall Framing
Exterior Wall Finish : Plaster
Framing : 2X6 WOOD STUDS
Insulation : Batten Type
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

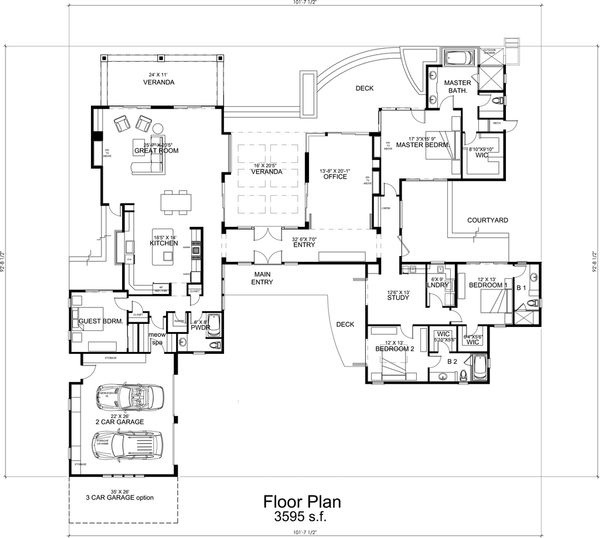

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$3995.00
$4195.00
$4395.00
$9995.00
$595.00
$4095.00
Foundation
$0.00
$0.00
Additional Options
$200.00
$55.00
$100.00
$39.00
$200.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
