PLAN #37-115

Key Specs


1863
sq ft

4
Beds

3
Baths

2
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

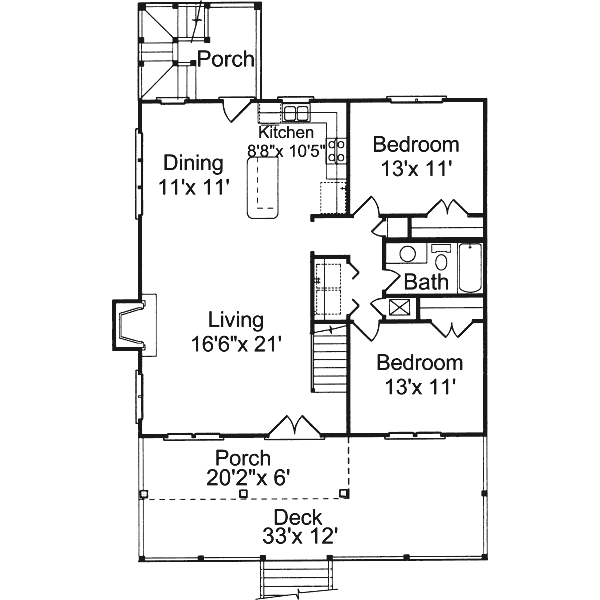

Floor Plan - Main Floor Plan
Beach Floor Plan - Main Floor Plan Plan #37-115

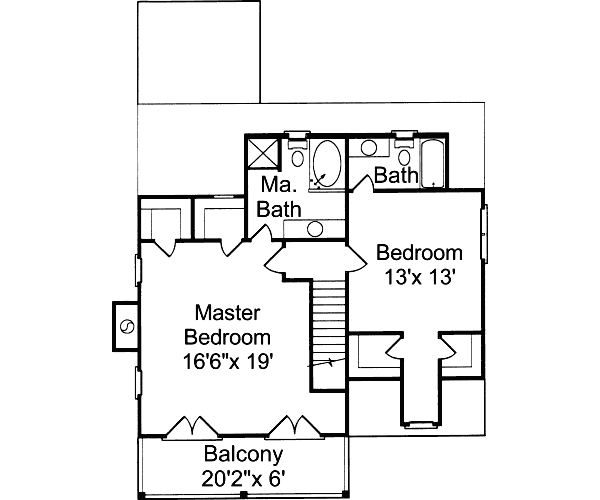

Floor Plan - Upper Floor Plan
Beach Floor Plan - Upper Floor Plan Plan #37-115

Full Specs & Features


Dimension
Depth : 54'
Height : 37'
Width : 36' 9"
Area
First Floor: 1056 sq/ft height 8'
Second Floor: 807 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Loft
Garage Features
Garage Under
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
More
Suited For Vacation Home
Rooms

Bedroom 2:

169 sq/ft width 13' x depth 13'

Bedroom 3:

143 sq/ft width 13' x depth 11'

Bedroom 4:

143 sq/ft width 13' x depth 11'

Dining Room:

121 sq/ft width 11' x depth 11'

Kitchen:

90 sq/ft width 8' 8" x depth 10' 5"

Living Room:

346 sq/ft width 16' 6" x depth 21'

Master Bedroom:

313 sq/ft width 16' 6" x depth 19'

Porch - Front:

121 sq/ft width 20' 2" x depth 6'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$980.00
5 printed plan sets mailed to you.
8 Copy Set :
$1100.00
8 printed plan sets mailed to you.
Reproducible Set :
$1190.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
PDF Set :
$1310.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Pier:
$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Additional Options

Additional Construction Sets :
35.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
