Bathroom 2:
78 sq/ft width 8' 2" x depth 9' 8"
Bathroom 3:
96 sq/ft width 12' x depth 8'
Bedroom 2:
147 sq/ft width 11' 4" x depth 13'
Bedroom 3:
138 sq/ft width 12' x depth 11' 6"

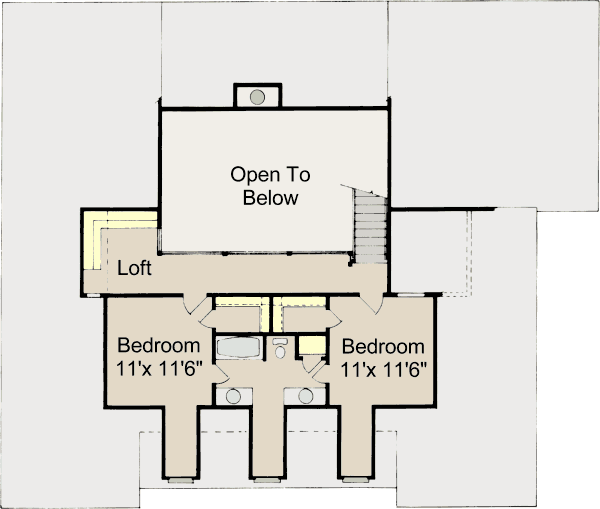

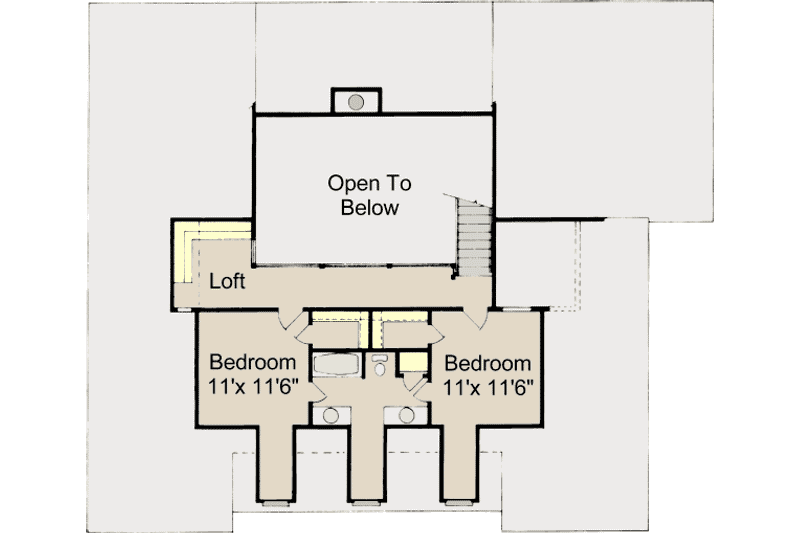

Bedroom 4:
126 sq/ft width 11' x depth 11' 6"
Breakfast Room:
138 sq/ft width 13' 10" x depth 10'
Dining Room:
137 sq/ft width 10' 2" x depth 13' 6"

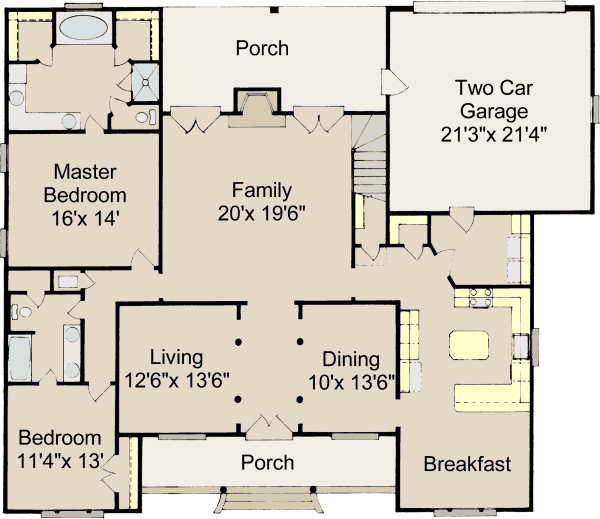

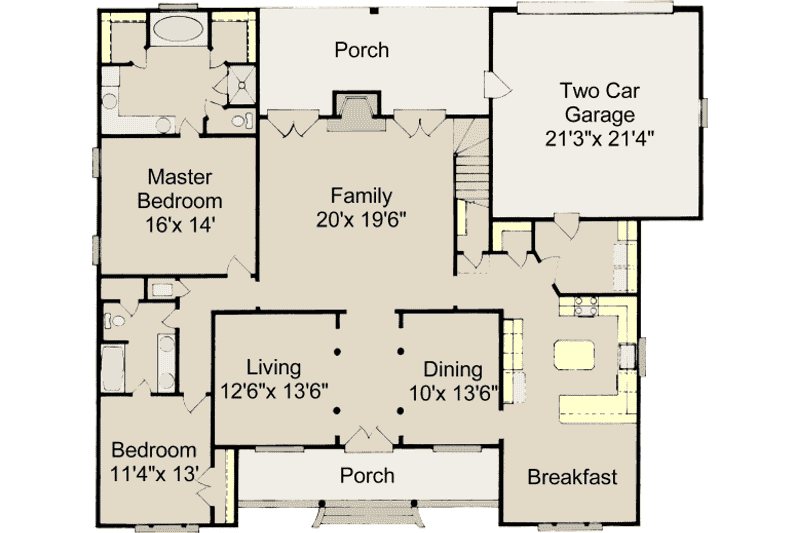

Garage:
453 sq/ft width 21' 3" x depth 21' 4"
Gathering Room:
390 sq/ft width 20' x depth 19' 6"
Kitchen:
179 sq/ft width 13' 10" x depth 13'
Living Room:
168 sq/ft width 12' 6" x depth 13' 6"
Master Bathroom:
216 sq/ft width 13' x depth 16' 8"
Master Bedroom:
224 sq/ft width 16' x depth 14'
All plans are drawn at ¼” scale or larger and include :
5 Copy Set : $1110.00 |
5 printed plan sets mailed to you. |
8 Copy Set : $1230.00 |
8 printed plan sets mailed to you. |
Reproducible Set : $1375.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
PDF Set : $1515.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Construction Sets : $35.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $55.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
