PLAN #37-104

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$45.00/each
Mirror Reversed Sets
$55.00
Subtotal
$1355.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #37-104

Key Specs


3335
sq ft

4
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

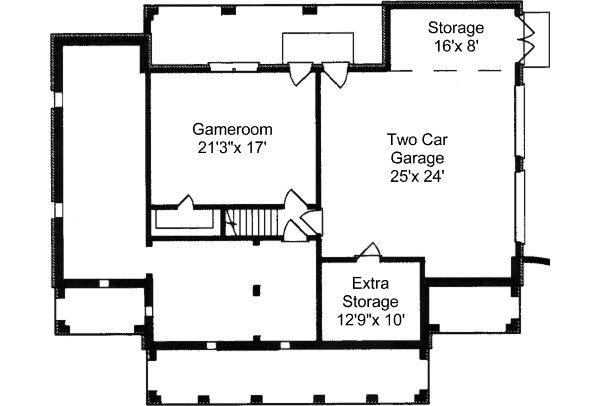

Floor Plan - Lower Floor Plan
Southern Floor Plan - Lower Floor Plan Plan #37-104

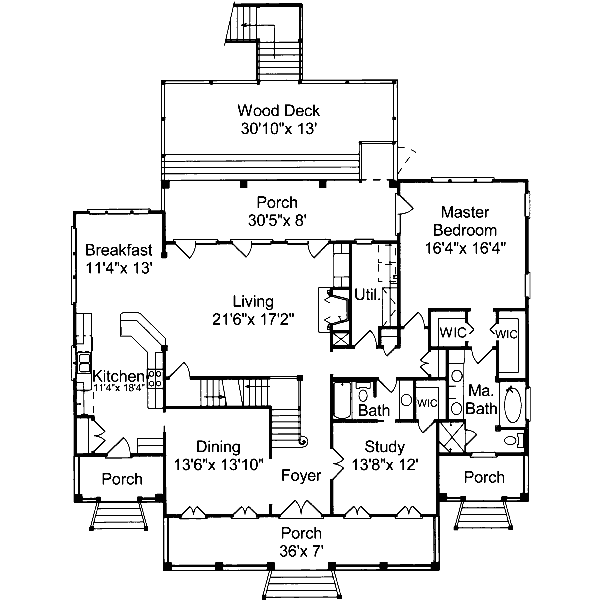

Floor Plan - Main Floor Plan
Southern Floor Plan - Main Floor Plan Plan #37-104

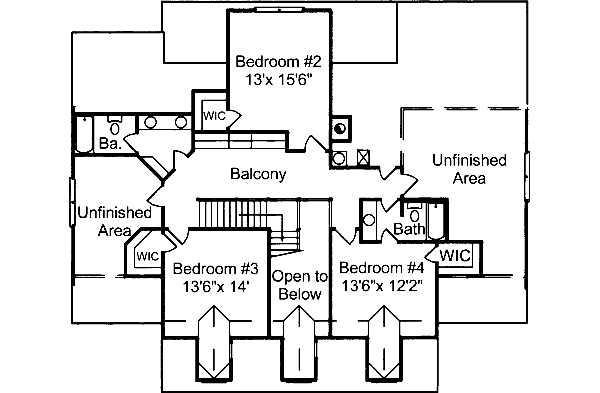

Floor Plan - Upper Floor Plan
Southern Floor Plan - Upper Floor Plan Plan #37-104

Full Specs & Features


Dimension
Depth : 64'
Height : 39'
Width : 59'
Area
Bonus: 422 sq/ft
First Floor: 2129 sq/ft height 10'
Garage: 1005 sq/ft
Second Floor: 1206 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Eating Bar
Breakfast Nook
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Storage Area
Unfinished Future Space
Loft
Garage Features
Garage Under
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
Rooms

Bedroom 2:

201 sq/ft width 13' x depth 15' 6"

Bedroom 3:

189 sq/ft width 13' 6" x depth 14'

Bedroom 4:

164 sq/ft width 13' 6" x depth 12' 2"

Breakfast Room:

147 sq/ft width 11' 4" x depth 13'

Deck:

400 sq/ft width 30' 10" x depth 13'

Dining Room:

186 sq/ft width 13' 6" x depth 13' 10"

Game Room:

361 sq/ft width 21' 3" x depth 17'

Garage:

600 sq/ft width 25' x depth 24'

Garage Storage:

128 sq/ft width 16' x depth 8'

Kitchen:

207 sq/ft width 11' 4" x depth 18' 4"

Master Bedroom:

266 sq/ft width 16' 4" x depth 16' 4"

Porch - Front:

252 sq/ft width 36' x depth 7'

Porch - Rear:

243 sq/ft width 30' 5" x depth 8'

Storage:

127 sq/ft width 12' 9" x depth 10'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1355.00
5 printed plan sets mailed to you.
8 Copy Set :
$1520.00
8 printed plan sets mailed to you.
Reproducible Set :
$1665.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
PDF Set :
$1830.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3025.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets :
45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
