PLAN #72-344

Key Specs


1924
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

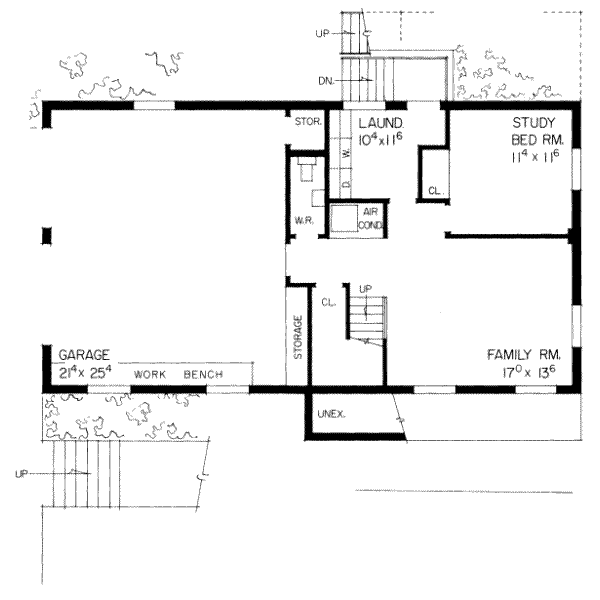

Floor Plan - Lower Floor Plan
Floor Plan - Lower Floor Plan

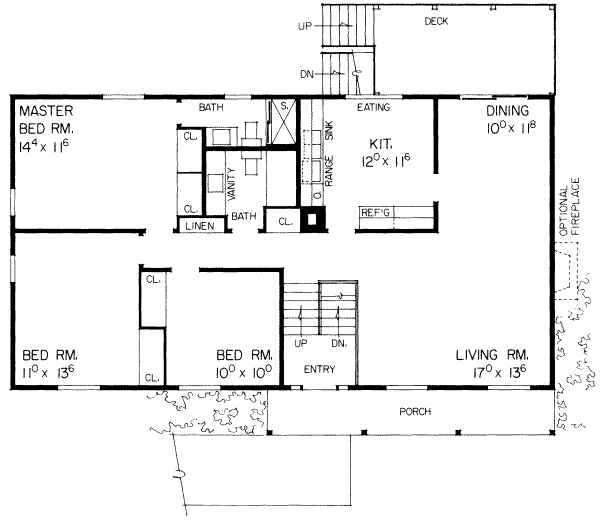

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 26'
Height : 22'
Width : 48'
Area Lower Floor : 676 sq/ft
Main Floor : 1248 sq/ft
Ceiling Main Ceiling : 8'
Roof Primary Pitch : 4:12
Exterior Wall Framing Framing : 2"x4"
Additional Room Features Family Room Keeping Room
Garage Features Garage Under
Side Entry Garage
Lot Characteristics Suited For Corner Lot

What's Included In This Plan Set


Homeplanners, L.L.C.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$900.00
5 printed plan sets mailed to you.
8 Copy Set :
$1000.00
8 printed plan sets mailed to you.
Reproducible Set :
$1000.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$700.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
