PLAN 569-17

Photographs may show modified designs.

Save
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

2071
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $731.00
You save $129.00 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 569-17

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

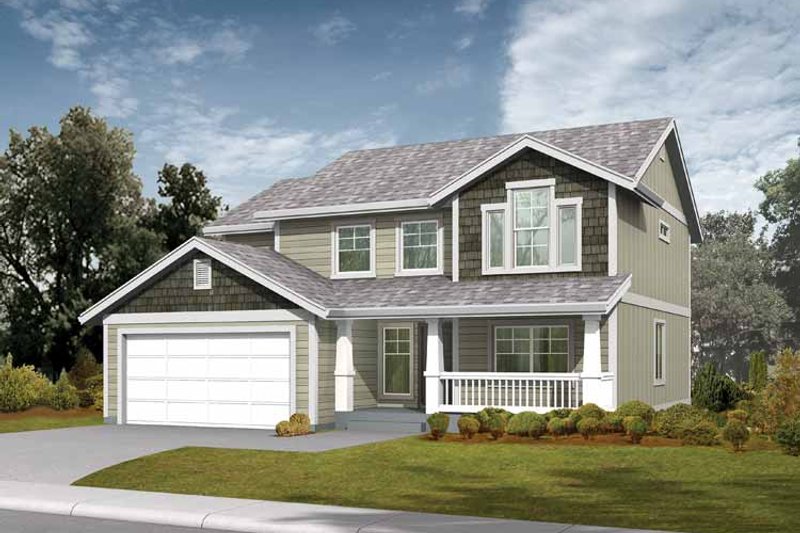

Typical of many suburban lots, the property was once larger and less expensive. Zoning requirements and demand are making large lots hard to find. Designed to get as much as possible into each room on a narrow building envelope is what this design has achieved. Blending its traditional exterior siding helps define the horizontal line of home making it appear much larger. The floor plan takes into account the way people actually live.

Full Specs & Features


Dimension

Depth : 40'

Height : 25' 3"

Width : 40'

Area

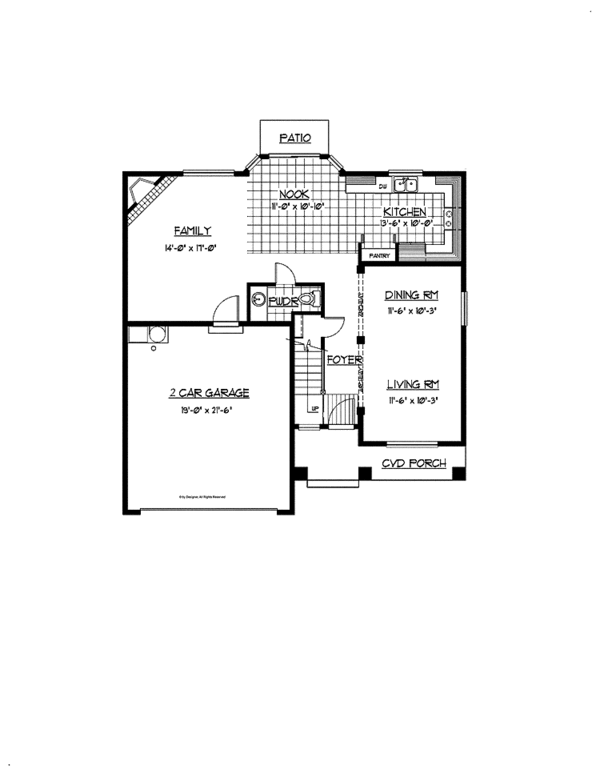

First Floor: 1010 sq/ft height 8'

Garage: 434 sq/ft height 8'

Porch: 150 sq/ft

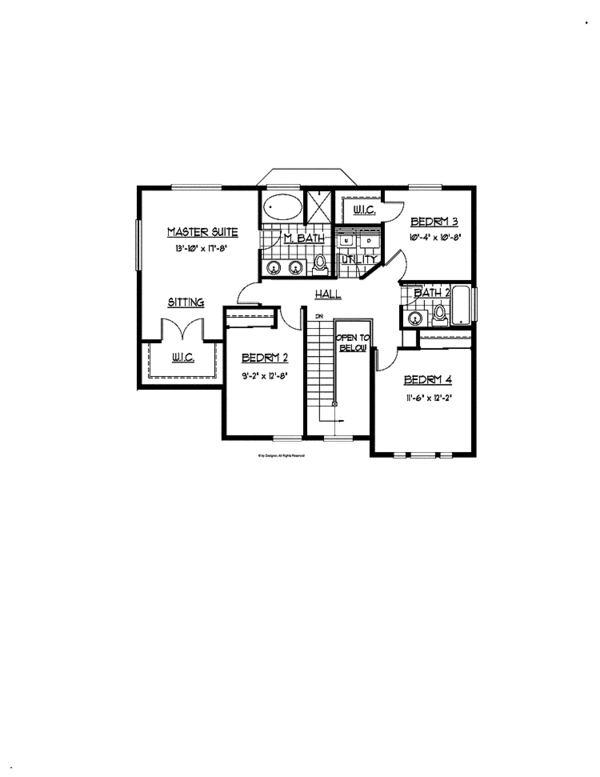

Second Floor: 1061 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Master Sitting Area

Upstairs Laundry

Outdoor Spaces

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

116 sq/ft width 9' 2" x depth 12' 8"

Bedroom 3:

110 sq/ft width 10' 4" x depth 10' 8"

Bedroom 4:

139 sq/ft width 11' 6" x depth 12' 2"

Dining Room:

117 sq/ft width 11' 6" x depth 10' 3"

Family Room:

238 sq/ft width 14' x depth 17'

Garage:

408 sq/ft width 19' x depth 21' 6"

Kitchen:

135 sq/ft width 13' 6" x depth 10'

Living Room:

117 sq/ft width 11' 6" x depth 10' 3"

Master Suite:

244 sq/ft width 13' 10" x depth 17' 8"

Nook:

119 sq/ft width 11' x depth 10' 10"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$731.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1462.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Audio Video Design:
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
