Clean cut lines and views in every direction make this Contemporary plan a modern miracle! Environmentally conscious consumers will love this open dialogue between an aesthetic and eco-friendly design. Using a structure that is an evolution of the traditional European trellis - type framed buildings, all the components, including the infill walls, ceiling, pavement and roof are supported by a network of support beams. This system allows a high-quality technological building and design with luminous and clean-cut features. Inside, the main level is one continuous space that wraps around the stairwell. Upstairs, you’ll the master and bedroom three have huge walk-in closets, while Bedroom two designed to accommodate an armoire would be a great nursery or guest room. With bunk beds, this could also be a perfect room for the kids.

Floor Plans

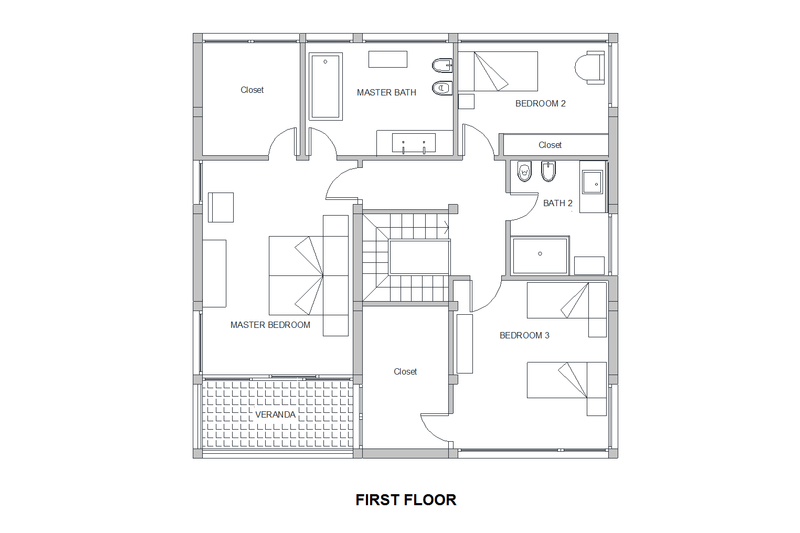

Floor Plan - Upper Floor Plan
Modern Floor Plan - Upper Floor Plan Plan #542-4

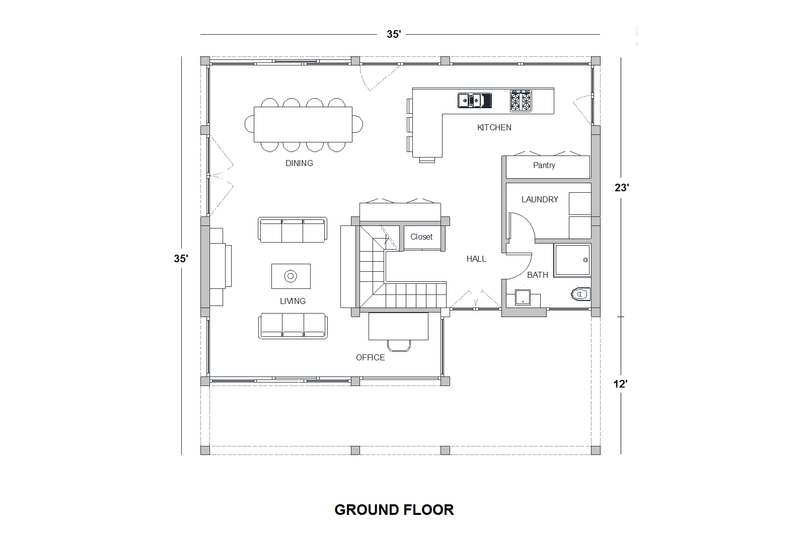

Floor Plan - Main Floor Plan
Modern Floor Plan - Main Floor Plan Plan #542-4

Full Specs & Features

Depth : 35'
Height : 27'
Width : 35'
Main Floor : 908 sq/ft
Porch : 305 sq/ft
Upper Floor : 1206 sq/ft
Lower Ceiling : 9'
Main Ceiling : 15'
Upper Ceiling Ft : 8'
Exterior Wall Framing
Insulation : Eco-friendly mineral wool/wood fibre panel
Exterior Wall Finish : Wood and glass
Bedroom Features
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Loft Balcony
Economical To Build
Unusual Shape
Energy Efficient Features
Energy Efficient Design

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Construction Engineering Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
