PLAN 120-132
Key Specs
2133
sq ft
3
Beds
3
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Personalized Help
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 120-132
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Height : 33'
Width : 68' 6"
Second Floor: 487 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : 2"x4"
Walk In Closet
Loft
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
3rd BR Closet:
14 sq/ft width 7' x depth 2'
Basement Foundation:
3767 sq/ft width 68' 6" x depth 55'
Bathroom 2:
55 sq/ft width 11' x depth 5'
Bedroom 2:
150 sq/ft width 12' 6" x depth 12'
Bedroom 2 Closet:
20 sq/ft width 10' x depth 2'
Bedroom 3:
120 sq/ft width 10' 5" x depth 11' 7"
Bedroom 3 Closet:
20 sq/ft width 10' x depth 2'
Breakfast Room:
110 sq/ft width 10' 6" x depth 10' 6"
Crawlspace Foundation:
3767 sq/ft width 68' 6" x depth 55'
Dining Room:
152 sq/ft width 13' 8" x depth 11' 2"
Foyer:
114 sq/ft width 11' 9" x depth 9' 9"
Garage:
586 sq/ft width 23' x depth 25' 6"
Garage Storage:
22 sq/ft width 11' 5" x depth 2'
Gathering Room:
248 sq/ft width 15' x depth 16' 7"
Hall:
75 sq/ft width 4' 7" x depth 16' 6"
Hall Closet:
15 sq/ft width 3' 8" x depth 4' 4"
Kitchen:
144 sq/ft width 12' x depth 12'
Living Room:
230 sq/ft width 15' 3" x depth 15' 1"
Master Bathroom:
115 sq/ft width 10' x depth 11' 6"
Master Bedroom:
224 sq/ft width 15' 5" x depth 14' 7"
Master Closet:
70 sq/ft width 6' x depth 11' 8"
Porch - Front:
width 8' x depth 0"
Powder Room:
25 sq/ft width 5' 1" x depth 5' 1"
Slab Foundation:
3767 sq/ft width 68' 6" x depth 55'
Utility Room:
48 sq/ft width 8' x depth 6'
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.

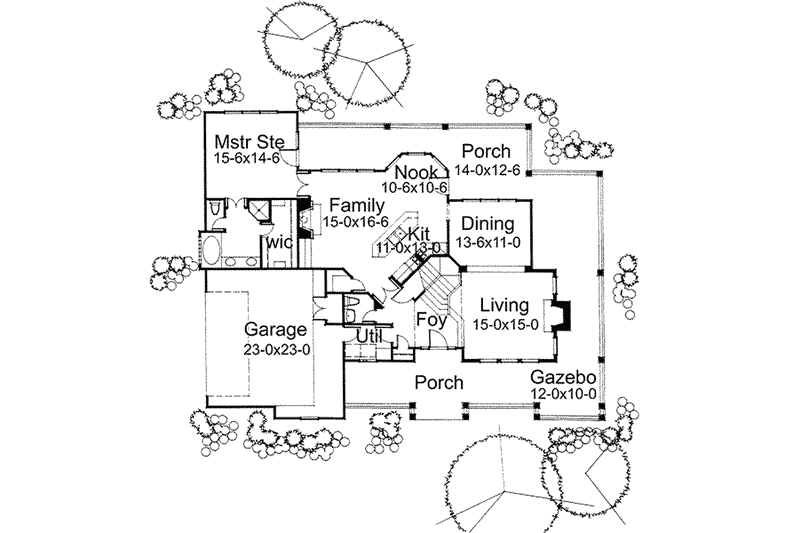

- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
