PLAN 569-19

Key Specs

2145
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

If you think modern architecture as an oddities inhabited only by the rich and famous think again. Modest and modern this plan celebrates the rising popularity of mid-century inspired homes. In this unique design, the creativity reveals how to transform a smaller space into open, inviting and practical areas for living comfortably and working well.

Floor Plans

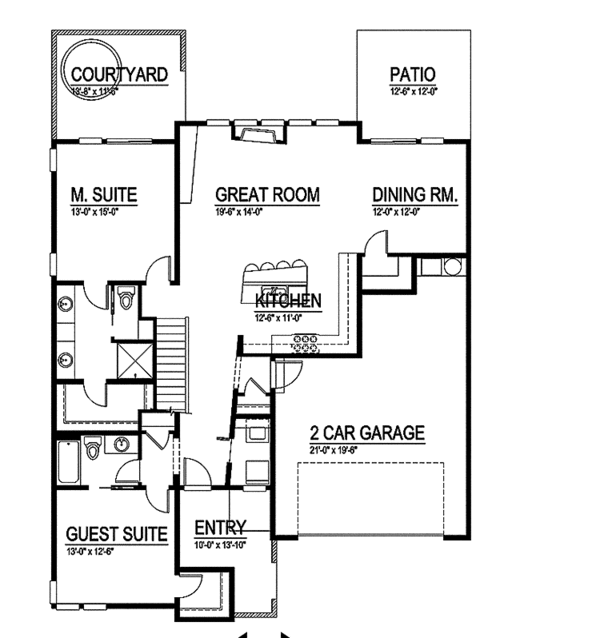

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

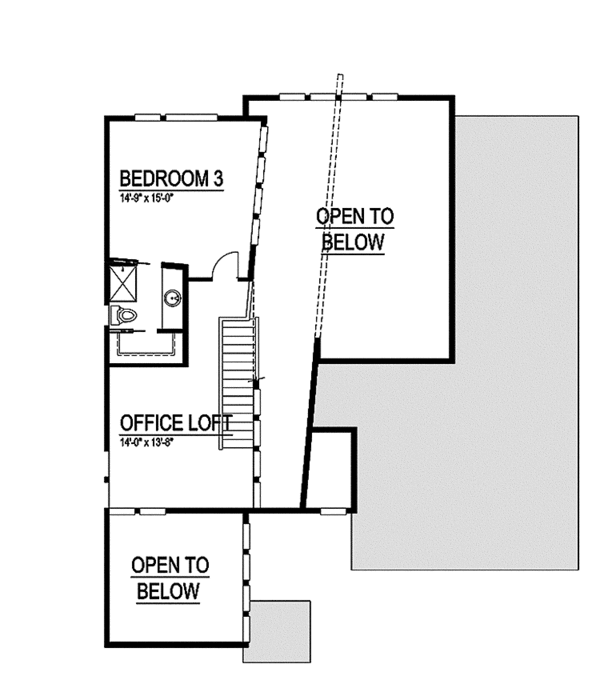

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 65'

Height : 26'

Width : 46'

Area

First Floor: 1610 sq/ft height 9'

Garage: 841 sq/ft height 9'

Porch: 113 sq/ft

Second Floor: 535 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Guest Suite

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Open Floor Plan

Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony

Courtyard

Rooms

Bedroom 3:

221 sq/ft width 14' 9" x depth 15'

Dining Room:

144 sq/ft width 12' x depth 12'

Entry:

138 sq/ft width 10' x depth 13' 10"

Garage:

409 sq/ft width 21' x depth 19' 6"

Great Room:

273 sq/ft width 19' 6" x depth 14'

Guest Suite:

162 sq/ft width 13' x depth 12' 6"

Kitchen:

137 sq/ft width 12' 6" x depth 11'

Loft:

191 sq/ft width 14' x depth 13' 8"

Master Suite:

195 sq/ft width 13' x depth 15'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
