PLAN #120-181

Key Specs


2267
sq ft

3
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This cozy craftsman cottage offers a large family area convenient to the kitchen and dining areas while still maintaining an 'air' of formality. The floor plan offers plenty of exterior views and numerous covered areas to retreat to and enjoy the outdoors.

 The master suite offers some flexibility depending on the owners' preference, view opportunities or privacy concerns, such as removing windows for bed wall placement. Some may even find a trendy/creative placement in front of the side window a desirable location.

 The kitchen and dining areas were located at the rear for the family who finds themselves more oriented to barbecuing and porch sitting - including a back lanai fireplace. The arrangement of the family and kitchen areas provides the ability to enjoy multiple entertaining opportunities at once, for example, conversation around the dining/kitchen bar while the football game is enjoyed in the family room.

 The master bath is bathed in natural light from high windows, and enjoys a large vanity with dual sinks and a large walk-in closet as well. The secondary bedrooms also have walk-in closets as well as direct bath access.

 Utility areas are plentiful, including a walk-in pantry, utility room with sink and storage, access to a basement option, and a shop for the do-it-yourselfers.

 A bonus area over the garage makes a great place to create a media room environment for the hardcore theatre room buff. It could also accommodate additional bedrooms or a guest suite.

Floor Plans

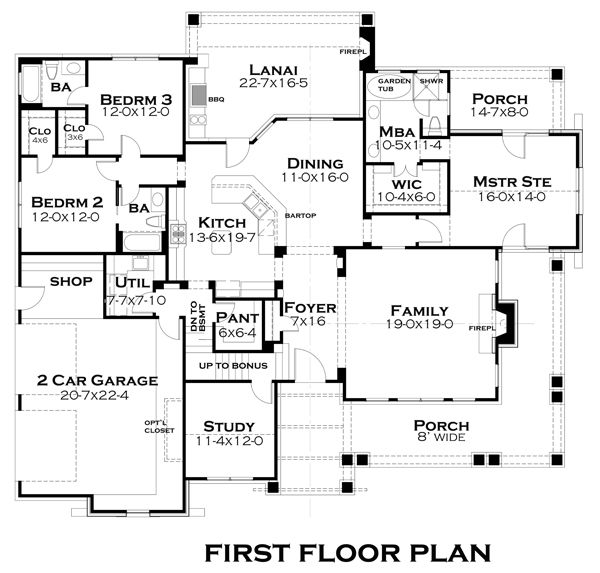

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

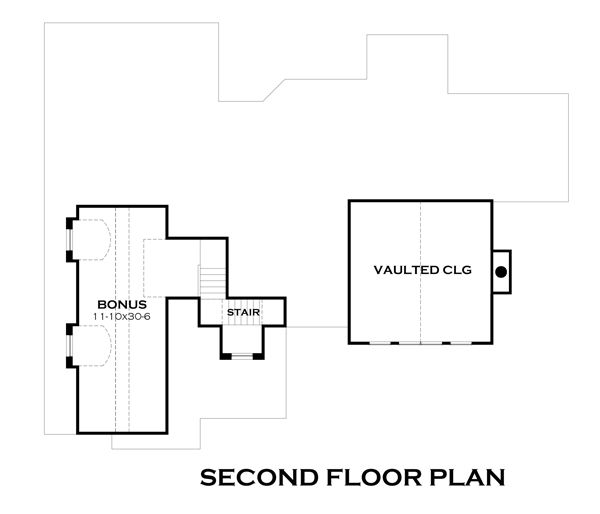

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 64'
Height : 31'
Width : 72'
Area Bonus : 439 sq/ft
Garage : 586 sq/ft
Main Floor : 2267 sq/ft
Porch : 998 sq/ft
Ceiling Ceiling Details :
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof Roof Framing : Stick
Roof Load : 20
Primary Pitch : 12:12
Roof Type :
Exterior Wall Framing Insulation :
Exterior Wall Finish :
Framing : 2x4
Bedroom Features Split Bedrooms
Walk In Closet
Kitchen Features Kitchen Island
Breakfast Nook
Peninsula Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features Bonus Play Flex Room
Den Office Study Computer
Family Room Keeping Room
Workshop
Garage Features Oversized Garage
Side Entry Garage
Lot Characteristics Suited For View Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


David E Wiggins Architect

  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
