PLAN 569-12
Key Specs
2282
sq ft
3
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 569-12
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
This one makes a fashion statement, what a great example of architectural value and style could be. Representing a strict adherence to pure urban form, the resulting design display a minimalism look that is smart and beautiful. The decorative details, architecture and interior layout feature angled shapes, open floor plans, and a muted mastery of form and function.
Floor Plans

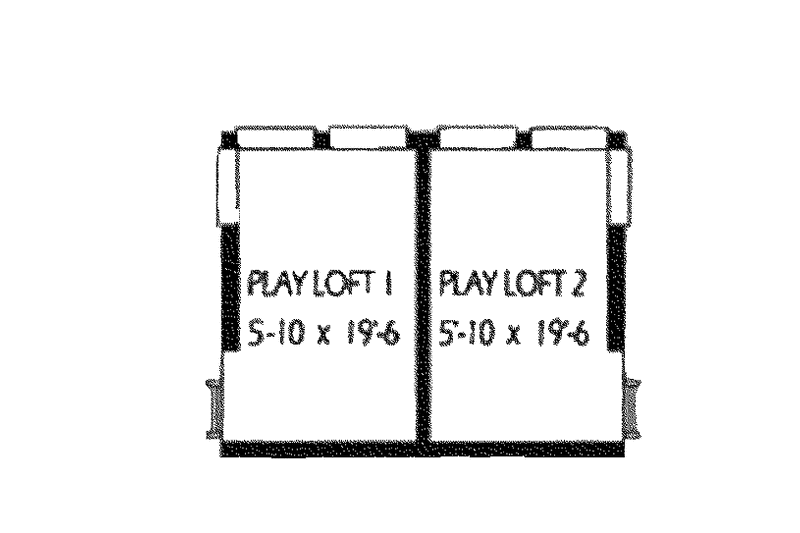

Floor Plan - Other Floor

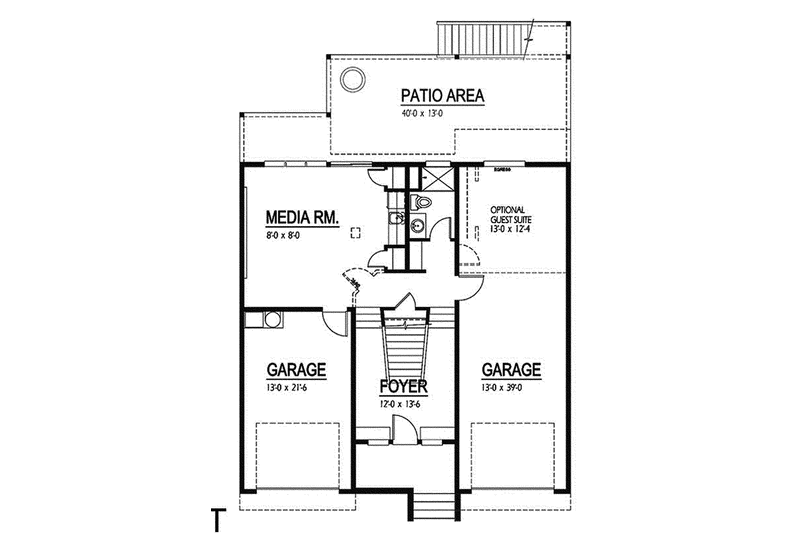

Floor Plan - Main Floor

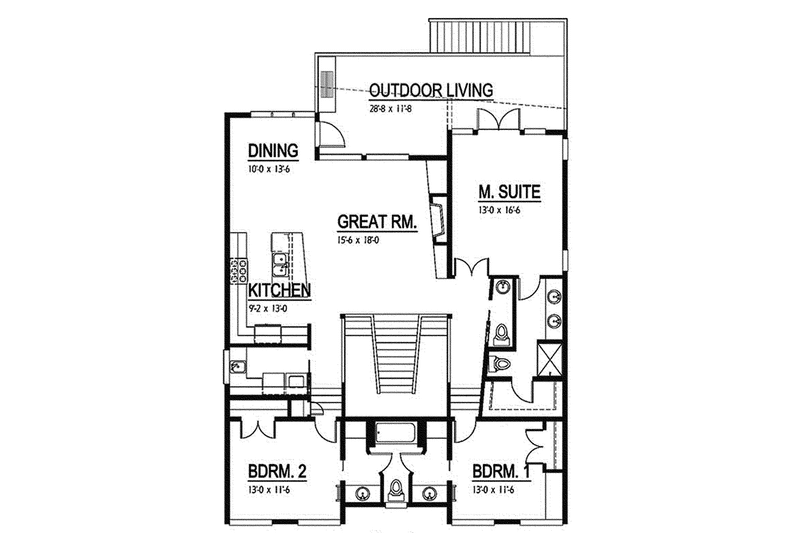

Floor Plan - Upper Floor

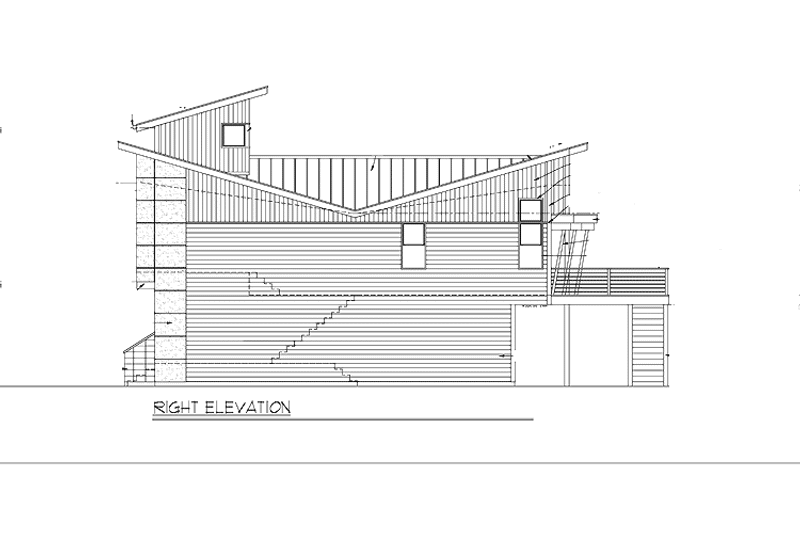

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 55'
Height : 33' 4"
Width : 40'
Height : 33' 4"
Width : 40'
Area
Bonus: 135 sq/ft
First Floor: 649 sq/ft height 9'
Garage: 786 sq/ft height 9'
Second Floor: 1633 sq/ft height 9'
First Floor: 649 sq/ft height 9'
Garage: 786 sq/ft height 9'
Second Floor: 1633 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Conventional
Roof Type : Composition
Roof Framing : Conventional
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Guest Suite
Walk In Closet
Guest Suite
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Loft
Main Floor Laundry
Media Room
Open Floor Plan
Storage Area
Unfinished Future Space
Main Floor Laundry
Media Room
Open Floor Plan
Storage Area
Unfinished Future Space
Outdoor Spaces
Balcony
Courtyard
Deck
Courtyard
Deck
More
Jack & Jill Bath
Rooms
Bedroom 1:
149 sq/ft width 13' x depth 11' 6"
Bedroom 2:
149 sq/ft width 13' x depth 11' 6"
Dining Room:
135 sq/ft width 10' x depth 13' 6"
Foyer:
162 sq/ft width 12' x depth 13' 6"
Garage:
279 sq/ft width 13' x depth 21' 6"
Garage Two:
507 sq/ft width 13' x depth 39'
Great Room:
279 sq/ft width 15' 6" x depth 18'
Guest Suite:
160 sq/ft width 13' x depth 12' 4"
Kitchen:
119 sq/ft width 9' 2" x depth 13'
Master Suite:
214 sq/ft width 13' x depth 16' 6"
Media Room:
64 sq/ft width 8' x depth 8'
Patio:
520 sq/ft width 40' x depth 13'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

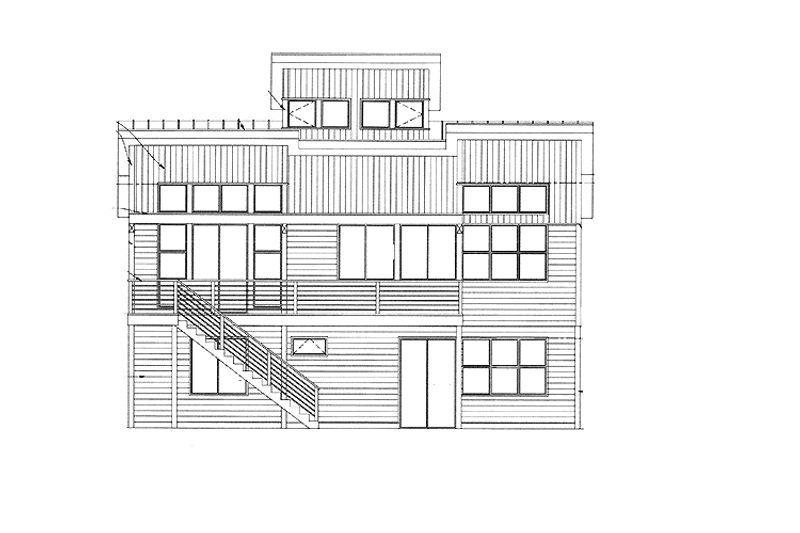

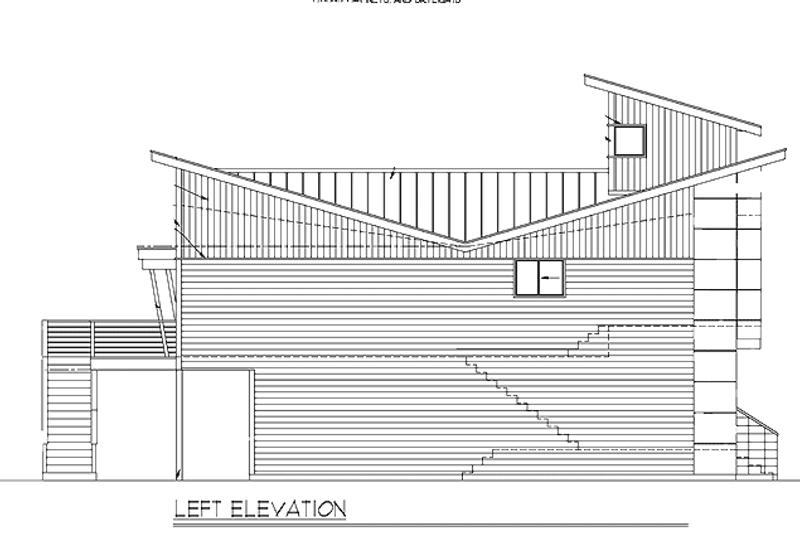

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
